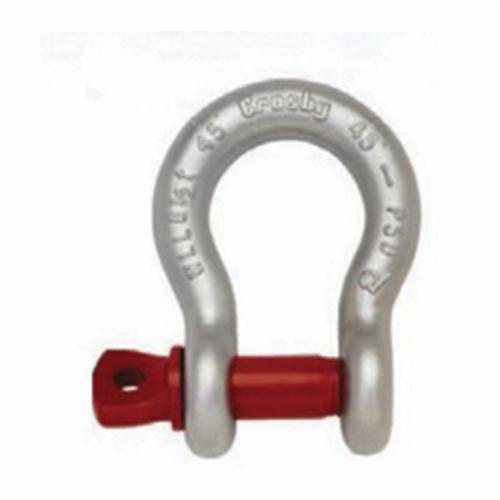

Crosby® 1018605 S-209 Anchor Shackle, 13.5 ton Load, 1-3/8 in, 1-1/2 in Screw Pin, Self-Colored
Shackles
1308826
MFG #: 1018605
Crosby®
263.22000
/ ea
Crosby® Anchor Shackle, Series: S-209, 13.5 ton, 1-3/8 in, 1-1/2 in Pin Dia, Screw Pin, 5-1/4 in Inner Length, 3.63 in Inner Width, 2-1/4 in Opening, 3-5/16 in Eye Outer Size, 9.16 in Overall Length, 6.83 in Overall Width, Carbon Steel Body, Carbon Steel Pin, Self-Colored
- Features
| Working load limit and grade 6 permanently shown on every shackle |
| Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds or other certification |
| Approved for use at -40 to 400 deg F |
| 3.25 ton through 25 ton G209 anchor shackles are type approved to DNV certification notes 2.7-1- offshore containers |
| The shackles are statistical proof and impact tested to 42 J min average at -4 deg F |
| The tests are conducted by Crosby® and 3.1 test certified |
| All other 209 shackles can meet charpy requirements of 42 J average at -4 deg F upon special request |
| Look for the Red Pin® the mark of genuine Crosby® quality |
