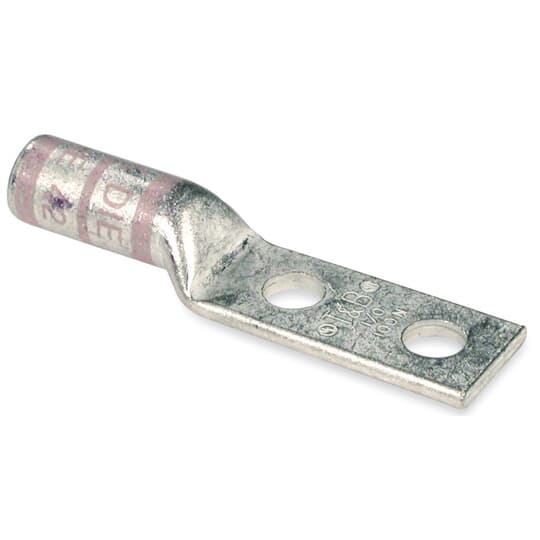

Color-Keyed® 54888BE 2-Hole Compression Lug, 1250 kcmil Copper Conductor, 1/2 in Stud, 140, Copper
Lug Compression Connectors
1080474
MFG #: 54888BE
Color-Keyed®
14817.56000
/ ea

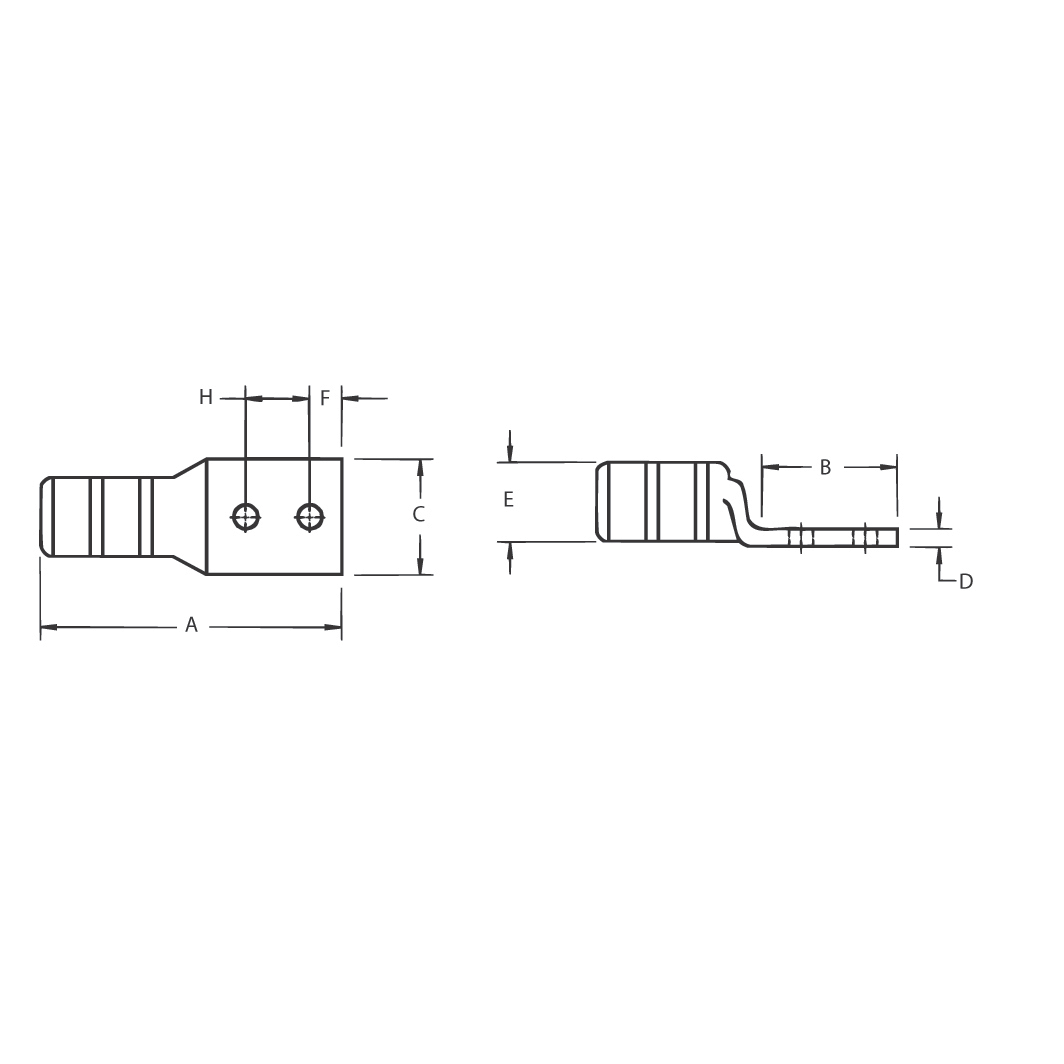

Color-Keyed® Compression Lug, 2-Hole, Copper Conductor, 1250 kcmil Conductor, Die Code: 140, 35 kVAC, 1/2 in Stud, 3 in L x 2.42 in W x 0.35 in THK Tongue, 7.88 in Overall Length, Long, 1.67 in Dia Barrel, 1-3/4 in Hole Spacing, Copper
- Features
| High conductivity electro wrought copper construction |
| 5/8 in size from hole center to end |
| NEMA 570/2B |
