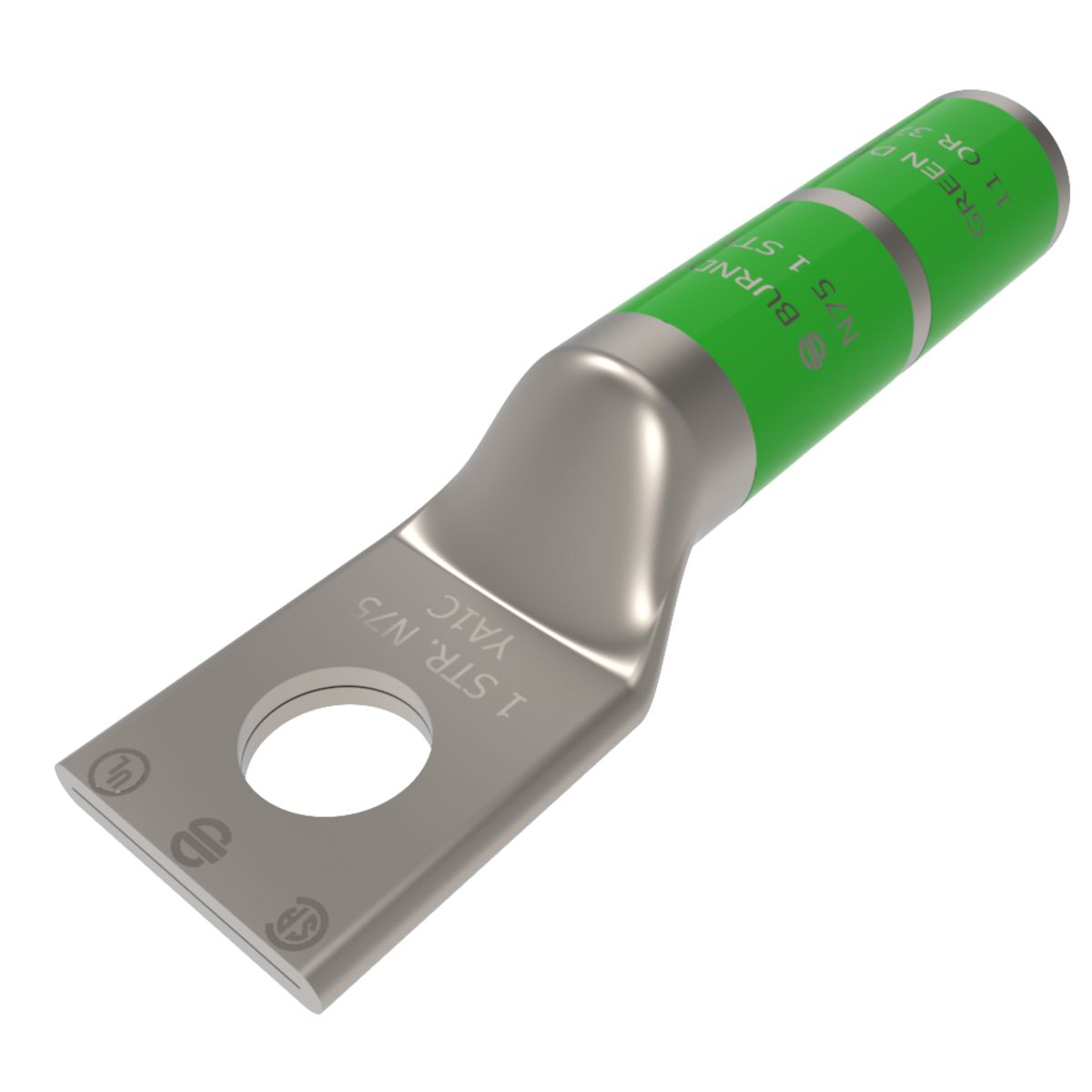

Burndy® YA1CN HYLUG™ YA Series 1-Hole Compression Lug Without Inspection Window, 1 AWG Stranded Copper Conductor, 1/2 in Stud
Lug Compression Connectors
367507
MFG #: YA1CN
BURNDY®
7.28000
/ ea
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
- Brochure URL - 10969_ID-SPE-v1-YA1CN.pdf(Brochure URL)
- Brochure URL - BURNDY_YA1CN_Specsheet.pdf(Brochure URL)
- Install Instructions 1 URL - Copper_Code_Long_Barrel_Terminal_Tool_Tables_Instructions.pdf(Install Instructions 1 URL)
- http://www.burndy.com/(Seller Home Page URL)
- Install Instructions 1 URL - 10969_M6IT3GNVDBYQ1JEX.pdf(Install Instructions 1 URL)
- http://www.burndy.com(Seller Home Page URL)
- Tech Drawing URL - ID-DRW-v1-sd079849.pdf(Tech Drawing URL)
- Tech Drawing URL - 10969_ID-DRW-v1-sd079849.pdf(Tech Drawing URL)
- Spec Sheet URL - 10969_HQJV60AFS9WPL1NT.pdf(Spec Sheet URL)
- Tech Drawing URL - sd079849.pdf(Tech Drawing URL)
- Spec Sheet URL - YA1CN.pdf(Spec Sheet URL)
- Line Drawing URL - 10969_ID-DRW-v1-sd079849.pdf(Line Drawing URL)
- Line Drawing URL - SD079849.pdf(Line Drawing URL)
- Line Drawing URL - 10969_R6ND9H0ZQVCKF4SO.pdf(Line Drawing URL)
- Applications
- Features
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Wire Strip Length: 1-7/16 IN, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W1CVT, W1CRT-1, X1CRT-1 Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W1CVT, W1CRT-1, X1CRT-1 Die, (2), Y35, Y39, Y750, PAT750 Tool, U1CRT-1, U4CABT Die, (2), Y46 Tool, U1CRT-1, U4CABT Die With PUADP-1 Adapter, (2), Color Code: Green, Die Index: 11, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (2), Y1MR Tool, (4) |
