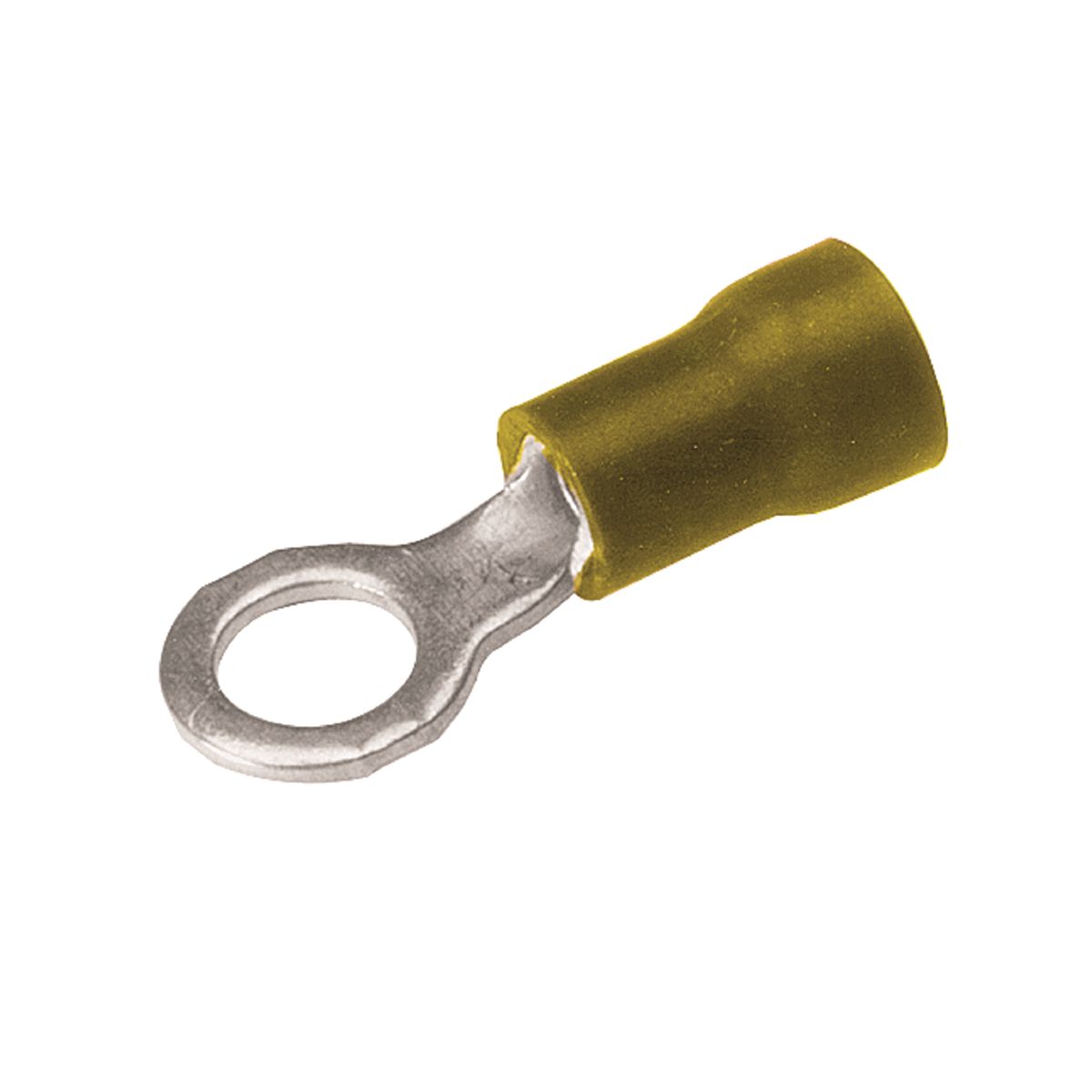

Burndy® TP1014 VINYLUG™ Type TP Standard Ring Tongue Terminal, 12 to 10 AWG Conductor, 1.22 in L, Yellow
Ring Lugs
366802
MFG #: TP1014
BURNDY®
1.73000
/ ea
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
- Brochure URL - 10969_RQFONIGYZ1V26P0M.pdf(Brochure URL)
- Brochure URL - BURNDY_TP1014_Specsheet.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_7d381726a2c56cb3650476e2b00a645dcd2c435a565cdb5767c3526d49d12385.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- http://www.burndy.com/(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet URL - 10969_CAFPJ1SBM9ET8NVI.pdf(Spec Sheet URL)
- Spec Sheet URL - TP1014.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_IWY5U02HTZSX47Q8.pdf(Tech Drawing URL)
- Tech Drawing URL - 50093722.pdf(Tech Drawing URL)
- Applications
- Features
| For Commercial And Light Duty Industrial Control And Power Circuit Applications |
| Features: Expanded Insulation Support Accepts Standard And Large Wire Diameters, Lowers Inventory Requirements, Permits Greater Flexibility And Provides Insulation Support, Funnel Entry, Easy Wire Insertion, Manufactured Of Pure Electrolytic Copper, Provides Maximum Conductivity, Low Resistance And Ductility For Excellent Crimp Forming Properties, Deep V Groove Serrations In The Inner Barrel, Provides Added Holding Strength And Better Conductivity, Electro-Tin Plated, Provides Durable Long-Lasting Corrosion Resistance, VINYLUG Type TP Is Designed For Commercial And Light Duty Industrial Control And Power Circuit Applications. Supplied With An Expanded Polyvinyl Chloride (PVC) Insulation Shroud, Many Tongue Variations And Rated 600V Makes TP Terminals Versatile And Economical, Wire Strip Length: 19/64 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Plier Type: Y10-22, Y10D Or Ratchet Tool: MR8-89-1, MR15, M8ND With N10HET-23, TFM Tool With DFM1D5 Die, Wire Insulation Grip: No, Temperature Rating: 105 DEG C Maximum, Die Index: Hand Tools Element A |
| Expanded insulation support accepts standard and large wire diameters, expanded insulation support accepts standard and large wire Diameters |
| Lowers Inventory Requirements |
| Permits greater flexibility and provides insulation support |
| Funnel entry |
| Easy wire Insertion provides maximum Conductivity |
| Low resistance and ductility for excellent crimp forming properties |
| Deep V groove serrations in the inner barrel: provides added holding strength and better conductivity |
| Supplied with an expanded polyvinyl chloride (PVC) insulation shroud |
| Many tongue variations and rated 600V makes TP terminals versatile and economical |
| Vinyl insulation |
