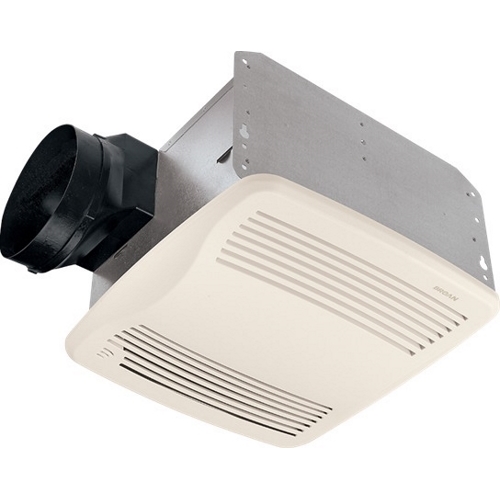

Broan® QTXE110S Very Quiet Bathroom Ventilation Fan, 110 cfm, 6 in Duct, 33.5 W, 120 VAC, 0.3 A, Domestic
Bathroom Exhaust Fans
350624
MFG #: QTXE110S
Broan®
211.15000
/ ea
Broan® QT series ventilation products offer the rare combination of power and extremely quiet operation. Offered with a variety of additional functions such as lights, nightlights and heaters.
- Brochure URL - BRO_IDEA_1506.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_860077faba261aeedafde852ecc4393819009e2073d762c7ee4eacfe3f1b8839.pdf(Catalog URL)
- Data Sheet 1 URL - Broan-NuTone_QTXE110S_Data_Sheet.pdf(Data Sheet 1 URL)
- http://www.broan.com(Seller Home Page URL)
- Install Instructions URL - Broan-NuTone_QTXE110S_Instruction_Installation.pdf(Install Instructions URL)
- Spec Sheet URL - SPE_bbdc9150-15e5-4b69-b257-95131ce312eb.pdf(Spec Sheet URL)
- Video - https://www.youtube.com/embed/WLzRGv1aujM(Video)
- Warranty URL - warranty(Warranty URL)
- Applications
- Features
| For Bathrooms Up To 100 SQ-FT |
| Modern-styled, high performance fan, with sensing circuitry, that knows" when to ventilate the room; Sensaire technology detects the rapid rise in humidity over time; Humidity control automatically turns fan ON when either of these conditions is detected: a rapid to moderate (user adjustable) increase of humidity, humidity above user-adjustable set-point (50 - 80 PCT RH); Two wire manual operation for odor control turns fan ON when power line through wall switch is cycled ON, OFF and back ON; Remains ON for a user-adjustable 5 to 60 MINT after humidity has stabilized and is below set-point or after manually initiated through power line cycling; Saves energy because unit runs only for the time required; A unit controlled with a wall timer may keep fan ON longer than required or turn it OFF before room is sufficiently ventilated; Plug-in, permanently lubricated mo" |
| Plug-in, permanently lubricated motor engineered for continuous operation |
| Dynamically balanced centrifugal blower wheel for quiet, efficient performance |
| Low rpm for quiet operation blower |
| Rugged construction |
| Polymeric duct connector with tapered sleeve and no metallic clatter |
| 7-5/8 in height allows for 2 x 8 in (nominal) joist installations |
| Sturdy, easy, 4-point mounting directly to joist |
| 6 in round ducting for superior performance, Horizontal duct direction |
| Innovative design - the result of extensive research with designers and consumers, integrated humidity sensor |
| Sensaire® technology detects the rapid rise in humidity over time |
| Auto shut-off time is adjustable from 5 to 60 min |
| Helps prevent lingering, excessive humidity which can cause mold |
| Humidity is sensed at the ceiling where it is most prevalent |
| Hanger bars for easy, fast and universal installation in all types of construction |
| UL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit |
| Can be used to comply with ASHRAE 62.2 and CALGreen |
| No nightlight |
| 110 cfm at 0.1 in SP, 90 cfm at 1/4 in SP |
| 110 cfm at 0.1 in SP, 90 cfm at 1/4 in SP |
