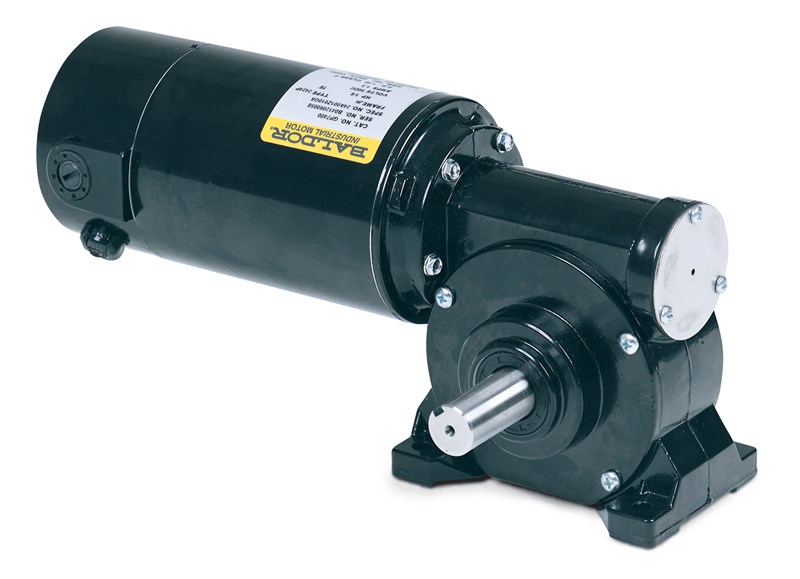

Baldor-Reliance GP7408 DC Gear Motor, 90 VDC, 1.9 A, 0.15 hp, Gear 45:1, 50 rpm
Right Angle Gearmotors
PDW~1270564
MFG #: GP7408
Baldor-Reliance
672.00000
/ ea
Baldor-Reliance DC Gear Motor, 90 VDC, 1.9 A, 0.15 hp, 45:1 Gear Ratio, JK Frame, 50 rpm, TENV Enclosure, JK Frame, 3/4 in Dia Shaft, Reversible, Ball Bearing, 120 in-lb, 125 lb Overhung Load, Base/Foot, 40 deg C, Insulation Class: F, Steel, 11.42 in L x 6-1/4 in W
- Applications
- Features
| General Purpose |
| G.M. D28JA 90VDC 45:1 GP7408 |
| DCPM motor provides exceptional starting torque, adjustable speed and predictable performance: |
| Ball bearing on output for smooth torque transmission |
| Bronze gearing |
| Hardened and ground worm |
| Permanently lubricated with synthetic Mobil SHC634 oil |
| Internal oil expansion bladder allows for all position mounting without relocating a breather vent |
| Double output shaft |
| Powder-coated enamel finish |
| 3 ft SJTO cord |
