Appleton™

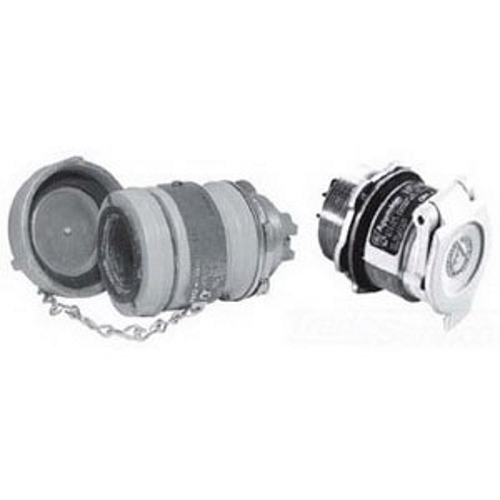

Appleton® U-Line ECHT20232 Pin and Sleeve Receptacle, 250 VAC, 20 A, 3 Poles, 2 Wires
Custom_Product_Images_Illustration
Appleton™
Appleton® U-Line ECHT20232 Pin and Sleeve Receptacle, 250 VAC, 20 A, 3 Poles, 2 Wires
SKU1098727
MFGR #ECHT20232
Your Cost: $630.15/ea
Appleton® U-Line® Pin and Sleeve Receptacle, 250 VAC, 20 A, 2 hp, 3 Poles, 2 Wires, NEMA 3/3R/3RX/4X/12/7BCD/9FG, Aluminum, 2.59 in H x 2.59 in W
Appleton® U-Line® Pin and Sleeve Receptacle, 250 VAC, 20 A, 2 hp, 3 Poles, 2 Wires, NEMA 3/3R/3RX/4X/12/7BCD/9FG, Aluminum, 2.59 in H x 2.59 in W
Application For ECP Mating Plugs ARRA Compliant C Buy American Compliant N Catalog Number ECHT20232 Country of Origin MX Currency USD Dimensions 2.59 in H x 2.59 in W EU RoHS Indicator C Gross Weight Per Pack 1.4500 lb Gross Weight per Pack Metric 0.66 Gross Weight UOM Metric kg Height 1.25 in Height [Metric] 3.1750 cm Horsepower 2 hp Length 11.20 in Length [Metric] 28.4480 cm Material Aluminum Mounting Panel Mount With 2 To 11-1/2 IN NPT NEMA Rating NEMA 3/3R/3RX/4X/12/7BCD/9FG Number Of Poles 3 Series ECHT Standard Class I, Division 1 And 2, Groups B, C, D; Class II, Division, 1 and 2, Groups F, G; Class III Standards ARRA CompliantRoHS CompliantClass I, Div 1 and 2, Groups B, C, D, Class II, Div 1 and 2, Groups F, G, Class III Sub Brand U-Line Type Dust-Ignitionproof Watertight UNSPSC 39121406 UPC 11 78138146313 UPC 12 781381463133 Width 10.30 in Width [Metric] 26.1620 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Amperage Rating 20 A Number of Wires 2 Voltage Rating 250 VAC For ECP Mating Plugs Explosionproof, dust-ignitionproof, watertight; Dead-front safety construction; Spring and screw cap included with assembly Furnished with steel locknut and neoprene sealing gasket assembly Gasketed construction protects receptacle against moisture and dirt with plug in or out Interior switch cylinder has neoprene o-ring at each end to seal out dust and moisture Style 2 (shell and extra pole) grounding ECHT and ECH are suitable for use with approved enclosures having threaded or non-threaded openings for these receptacles Panel mount with 2 - 11-1/2 in NPT Explosionproof, dust-Ignitionproof, watertight Baked epoxy coated clad copper-free aluminum Dead-front safety construction Spring and screw cap included with assembly
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For ECP Mating Plugs |
| ARRA Compliant | C |
| Buy American Compliant | N |
| Catalog Number | ECHT20232 |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.59 in H x 2.59 in W |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 1.4500 lb |
| Gross Weight per Pack Metric | 0.66 |
| Gross Weight UOM Metric | kg |
| Height | 1.25 in |
| Height [Metric] | 3.1750 cm |
| Horsepower | 2 hp |
| Length | 11.20 in |
| Length [Metric] | 28.4480 cm |
| Material | Aluminum |
| Mounting | Panel Mount With 2 To 11-1/2 IN NPT |
| NEMA Rating | NEMA 3/3R/3RX/4X/12/7BCD/9FG |
| Number Of Poles | 3 |
| Series | ECHT |
| Standard | Class I, Division 1 And 2, Groups B, C, D; Class II, Division, 1 and 2, Groups F, G; Class III |
| Standards | ARRA CompliantRoHS CompliantClass I, Div 1 and 2, Groups B, C, D, Class II, Div 1 and 2, Groups F, G, Class III |
| Sub Brand | U-Line |
| Type | Dust-Ignitionproof Watertight |
| UNSPSC | 39121406 |
| UPC 11 | 78138146313 |
| UPC 12 | 781381463133 |
| Width | 10.30 in |
| Width [Metric] | 26.1620 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Amperage Rating | 20 A |
| Number of Wires | 2 |
| Voltage Rating | 250 VAC |
| For ECP Mating Plugs |
| Explosionproof, dust-ignitionproof, watertight; Dead-front safety construction; Spring and screw cap included with assembly |
| Furnished with steel locknut and neoprene sealing gasket assembly |
| Gasketed construction protects receptacle against moisture and dirt with plug in or out |
| Interior switch cylinder has neoprene o-ring at each end to seal out dust and moisture |
| Style 2 (shell and extra pole) grounding |
| ECHT and ECH are suitable for use with approved enclosures having threaded or non-threaded openings for these receptacles |
| Panel mount with 2 - 11-1/2 in NPT |
| Explosionproof, dust-Ignitionproof, watertight |
| Baked epoxy coated clad copper-free aluminum |
| Dead-front safety construction |
| Spring and screw cap included with assembly |
