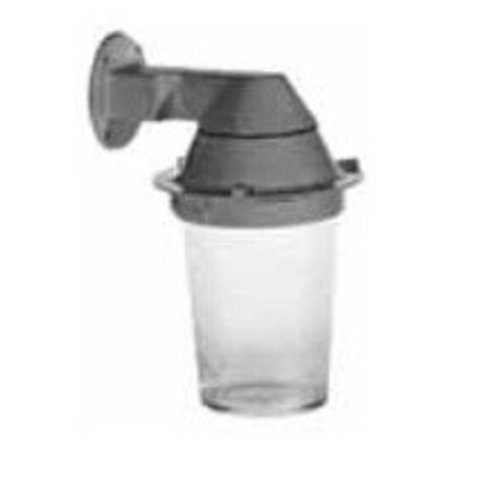

Appleton® Stylmaster™ VPOBW1 Wall Mount Fixture Body, For Use With SEH or VPJB Cast Outlet Box or 4 in Octagonal Outlet Box, 277 VAC, Aluminum
Custom_Product_Images_Illustration
Appleton® Stylmaster™ VPOBW1 Wall Mount Fixture Body, For Use With SEH or VPJB Cast Outlet Box or 4 in Octagonal Outlet Box, 277 VAC, Aluminum
SKU700696
MFGR #VP0BW1
Your Cost: $168.38/ea
Appleton® Stylmaster™ Fixture Body, Wall Mount, For Use With: SEH or VPJB Cast Outlet Box or 4 in Octagonal Outlet Box, 277 VAC, Aluminum, Epoxy Powder Coated
Appleton® Stylmaster™ Fixture Body, Wall Mount, For Use With: SEH or VPJB Cast Outlet Box or 4 in Octagonal Outlet Box, 277 VAC, Aluminum, Epoxy Powder Coated
Application For Fits SEH Or VPJB Cast Outlet Box Or 4 IN Octagonal Outlet Box ARRA Compliant C Buy American Compliant N Catalog Number VP0BW1 Country of Origin MX Currency USD EU RoHS Indicator C Finish Epoxy Powder Coated Fixture Type Wall Mount Gross Weight Per Pack 3.5900 lb Gross Weight per Pack Metric 1.63 Gross Weight UOM Metric kg Height 2.80 in Height [Metric] 7.1120 cm Lamp Type 60 - 300 WTT Medium Incandescent Length 29.00 in Length [Metric] 73.6600 cm Standard NEC: Class I, Division 2, Groups A, B, C, D; CSA Certified: Class I, Division 2, Groups A, B, C, D, Class II, Division 1 And 2, Groups E, F, G, Class III, UL 1598, UL 844, UL E10444, C22.2 No. 250, C22.2 No. 137, CSA 025428 Standards ARRA CompliantRoHS CompliantUL 1598UL 844 File No. E10444CSA C22.2 File No. 250/137CSA File No. 025428NEC Class I, Div 2, Groups A, B, C, D Sub Brand Stylmaster Type Wall Mount UNSPSC 39111817 UPC 11 78138112341 UPC 12 781381123419 Width 16.40 in Width [Metric] 41.6560 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Material Copper Free Aluminum Specifications 277 VAC, 200 deg C Temperature Suitable For Use With SHE, VPJB Cast Outlet Box, 4 in Octagonal Outlet Box, Threaded Metal Conduit For Fits SEH Or VPJB Cast Outlet Box Or 4 IN Octagonal Outlet Box Octagonal outlet boxes for non-classified areas only; Globe seats firmly against composition gasket in mounting hood to keep out dirt and moisture; Full threads eliminate cross threading; With screws and gasket; Enclosed and gasketed lighting fixtures for use in storage areas, tunnels, subways, chemical plants and other areas where moisture, dirt or corrosive atmospheres are a problem; Suitable for use in wet locations Copper free (4/10 of 1 percent maximum) aluminum Incandescent lamp Octagonal outlet boxes for non classified areas only Globe seats firmly against composition gasket in mounting hood to keep out dirt and moisture Full threads eliminate cross threading 200 deg C non classified, 40 deg C classified ambient temperature range 200 deg C supply wire temperature range 60 - 300 W medium incandescent lamp Made of copper free aluminum
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Fits SEH Or VPJB Cast Outlet Box Or 4 IN Octagonal Outlet Box |
| ARRA Compliant | C |
| Buy American Compliant | N |
| Catalog Number | VP0BW1 |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Finish | Epoxy Powder Coated |
| Fixture Type | Wall Mount |
| Gross Weight Per Pack | 3.5900 lb |
| Gross Weight per Pack Metric | 1.63 |
| Gross Weight UOM Metric | kg |
| Height | 2.80 in |
| Height [Metric] | 7.1120 cm |
| Lamp Type | 60 - 300 WTT Medium Incandescent |
| Length | 29.00 in |
| Length [Metric] | 73.6600 cm |
| Standard | NEC: Class I, Division 2, Groups A, B, C, D; CSA Certified: Class I, Division 2, Groups A, B, C, D, Class II, Division 1 And 2, Groups E, F, G, Class III, UL 1598, UL 844, UL E10444, C22.2 No. 250, C22.2 No. 137, CSA 025428 |
| Standards | ARRA CompliantRoHS CompliantUL 1598UL 844 File No. E10444CSA C22.2 File No. 250/137CSA File No. 025428NEC Class I, Div 2, Groups A, B, C, D |
| Sub Brand | Stylmaster |
| Type | Wall Mount |
| UNSPSC | 39111817 |
| UPC 11 | 78138112341 |
| UPC 12 | 781381123419 |
| Width | 16.40 in |
| Width [Metric] | 41.6560 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Material | Copper Free Aluminum |
| Specifications | 277 VAC, 200 deg C Temperature |
| Suitable For Use With | SHE, VPJB Cast Outlet Box, 4 in Octagonal Outlet Box, Threaded Metal Conduit |
| For Fits SEH Or VPJB Cast Outlet Box Or 4 IN Octagonal Outlet Box |
| Octagonal outlet boxes for non-classified areas only; Globe seats firmly against composition gasket in mounting hood to keep out dirt and moisture; Full threads eliminate cross threading; With screws and gasket; Enclosed and gasketed lighting fixtures for use in storage areas, tunnels, subways, chemical plants and other areas where moisture, dirt or corrosive atmospheres are a problem; Suitable for use in wet locations |
| Copper free (4/10 of 1 percent maximum) aluminum |
| Incandescent lamp |
| Octagonal outlet boxes for non classified areas only |
| Globe seats firmly against composition gasket in mounting hood to keep out dirt and moisture |
| Full threads eliminate cross threading |
| 200 deg C non classified, 40 deg C classified ambient temperature range |
| 200 deg C supply wire temperature range |
| 60 - 300 W medium incandescent lamp |
| Made of copper free aluminum |
