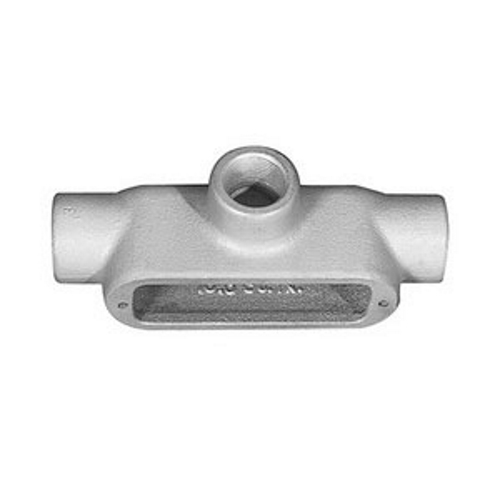

Appleton® FM8™ Unilets™ T58 Type T Conduit Outlet Body, 1-1/2 in Hub, Form 8, 44 cu-in, Grayloy-Iron, Tri-Coated
Type T Conduit Fitting Body
372976
MFG #: T58
Appleton™
107.18000
/ ea
- http://www.appletonelec.com(Seller Home Page URL)
- https://www.appleton.emerson.com/(Seller Home Page URL)
- Spec Sheet URL - AEC_MC007_FM8_Unilet_Conduit_Outlet_Bodies.pdf(Spec Sheet URL)
- Warranty URL - 11043_AFRVNTEYP0B9JHS4.pdf(Warranty URL)
- Warranty URL - appleton-grp-terms-and-conditions.pdf(Warranty URL)
- Applications
- Features
| For Use With Rigid Steel Conduit And IMC |
| Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Completely interchangeable with Crouse-Hinds Form 8 bodies, gaskets and covers; Equivalent FM8 and Form 8 units have identical applications and installation dimensions; Flat back design provides greater cubic content for easier wire pulling and more room for splicing; Fits flush and snug against flat surfaces for more stable installation; Smooth hub openings allow easy conduit joining; Wiring capacity: 44 CU-IN as per NEC 314.16(A) |
| Serve as pulling fittings |
| Make bends in conduit system |
| Provide openings for splicing, connect and change direction of conduit runs |
| Connect and change direction of conduit runs |
| Allow connections for branch runs |
| Permit access to conductors for maintenance |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity |
| Completely interchangeable with Crouse-Hinds Form 8 bodies, gaskets and covers |
| Equivalent FM8™ and Form 8 units have identical applications and installation dimensions |
| Flat back design provides greater cubic content for easier wire pulling and more room for splicing |
| Fits flush and snug against flat surfaces for more stable installation |
| Covers with gaskets are approved for use in wet locations |
| Smooth hub bushings and cover openings protect conductor insulation, smooth hub openings allow easy conduit joining |
| Triple Coat (Zinc Electroplated, Chromate and Epoxy Powder Coated) |
