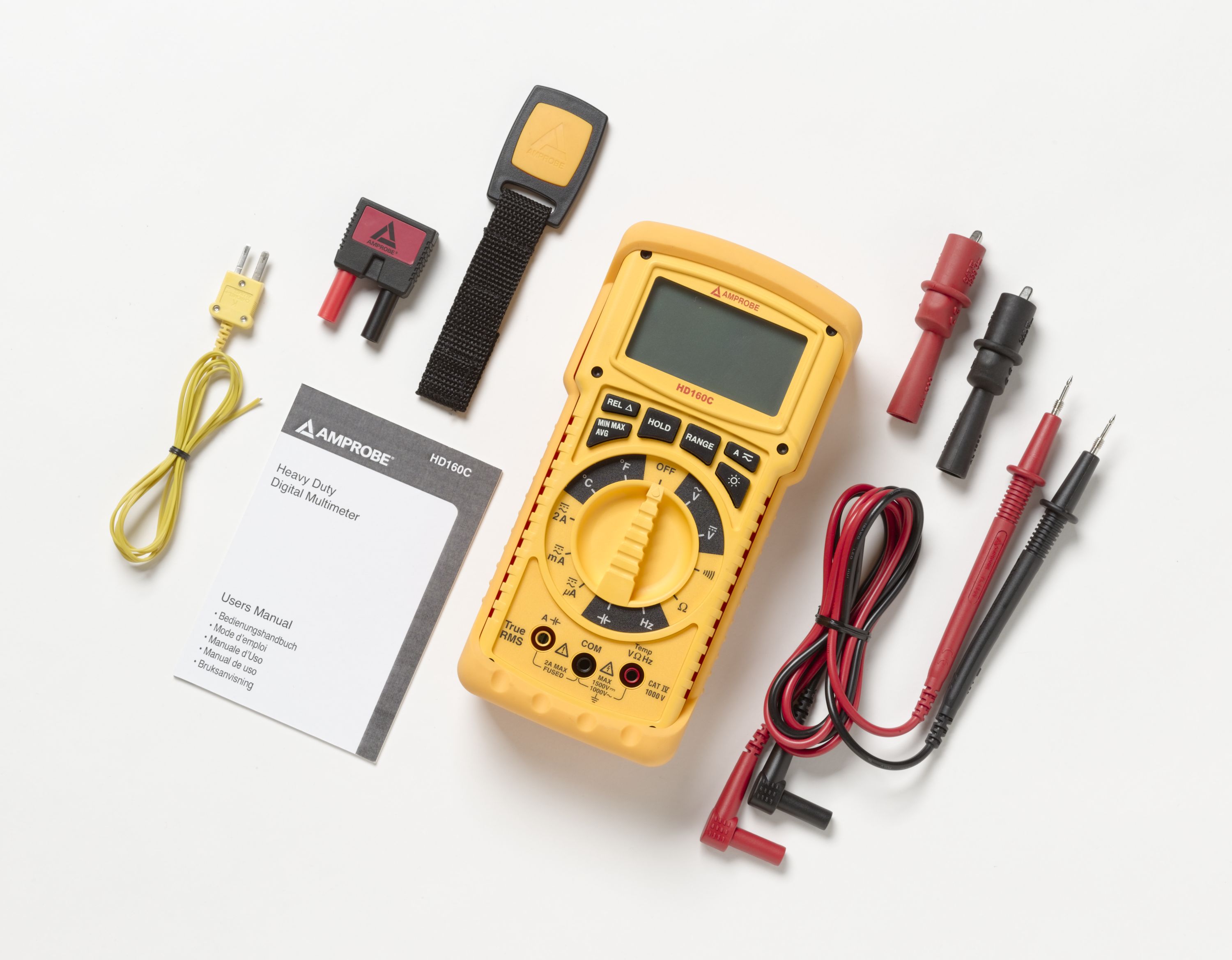

Amprobe® HD160C Heavy-Duty Digital Multimeter, 1500 VDC, 1000 VAC, 2 A, 40 MOhm, 1000 VAC/1500 VDC, 2 A, 40 MOhm
Custom_Product_Images_Illustration
Amprobe® HD160C Heavy-Duty Digital Multimeter, 1500 VDC, 1000 VAC, 2 A, 40 MOhm, 1000 VAC/1500 VDC, 2 A, 40 MOhm
SKU401682
MFGR #HD160C
$/ea
Amprobe HD160C Heavy Duty Multimeter is designed for professional use in harsh environments. Its made using waterproof construction to prevent dirt, grime and moisture from entering the case and causing inaccurate readings or damaging shorts. Built with tough, fire-retardant thermoplastic that is resistant to grease and chemical spills and with shock-mounted components that are drop resistant to at least 8 feet, the Amprobe HD160C is unusually rugged and reliable. It has an extended voltage measurement capability of 1500V DC and 1000V AC, unmatched by any other line of digital multimeters. The extended voltage ranges can withstand transients up to 12 kV, and it also measures temperature
Amprobe HD160C Heavy Duty Multimeter is designed for professional use in harsh environments. Its made using waterproof construction to prevent dirt, grime and moisture from entering the case and causing inaccurate readings or damaging shorts. Built with tough, fire-retardant thermoplastic that is resistant to grease and chemical spills and with shock-mounted components that are drop resistant to at least 8 feet, the Amprobe HD160C is unusually rugged and reliable. It has an extended voltage measurement capability of 1500V DC and 1000V AC, unmatched by any other line of digital multimeters. The extended voltage ranges can withstand transients up to 12 kV, and it also measures temperature
Alternate Catalog Number 2670787 Amperage Rating 100 to 1000 uA, 10 to 400 mA, 2 A ARRA Compliant U Battery Type 9 Buy American Compliant U Capacitance 40.00 nF, 400.0 nF, 4.000 µF, 40.00 µF, 400.0 µF Catalog Number HD160C Country of Origin TW Currency USD Dimensions 7.9 in L x 4 in W x 2.3 in H Diode Test Yes Display Type LCD Enclosure Type IP67 EU RoHS Indicator Y Frequency Rating 100.00 Hz, 1000.0 Hz, 10.000 kHz, 100.00 kHz, 1000.0 kHz, 10.000 M Hz Gross Weight Per Pack 1.4200 lb Gross Weight per Pack Metric 0.64 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 9030310000 Height 2.30 in Height [Metric] 5.8420 cm Length 7.90 in Length [Metric] 20.0660 cm Material Thermoplastic Model HD160C Resistance 1000.0 O, 10.00 kO, 100.00 kO, 1000.0 kO, 10.000 MO, 40.00 MO Resolution 0.1 mV Safety Rating CAT IV 1000 V Standards RoHS CompliantCE MarkedcCSAus CertifiedC-Tick N10140EN 61010-1EN 60529EN 61326-1NEDA 1604JIS 006PIEC 6F22PROP65: This product is in compliance with PROP65; it is not known to contain any chemicals associated with this regulation Temperature Rating 0 to 50 °C Type Heavy Duty True RMS UNSPSC 41113630 UPC 11 09596935326 UPC 12 095969353267 Voltage Rating DC Voltage: 1000.0 mV, 10.000 V, 100.00 V, 1500.0 V AC Voltage:1000.0 mV, 10.000 V, 100.00 V, 1000.0 V Width 4.00 in Width [Metric] 10.1600 cm Stock Status NONSTOCK Brand Fluke® Manufacturer Fluke Corporation Display 4 digit LCD, 9999 counts, with annunciators, menu features and 41 segment bargraph, true-rms Highest voltage capability, measuring to 1500 VDC and 1000 VAC Special sealing for environment and water resistance Constructed with drop-resistant housing and PCB mounting Measures capacitance, temperature and frequency Superior 10000 count resolution with bar graph Magne-Grip™ holster, frees both hands for work Built-in temperature measurement Digi-Glo™ bright backlight Display 4 digit LCD, 9999 counts, with annunciators, menu features and 41-segment bargraph Polarity indication automatic Input overload indication OL, -OL Auto power down 40 nF to 400 uF ranges +/-3.0% RDG + 10 digits, 400 nF to 40 uF ranges +/-3.0% RDG + 5 digits capacitance accuracy, 0.01 nF capacitance resolution 100 uA range +/-0.5% RDG + 10 digits, 1000 uA to 400 mA ranges +/-0.5% RDG + 5 digits, 2 A range +/-1.5% RDG + 10 digits DC current accuracy, 0.01 uA in 100 uA range DC current resolution 100 uA to 100 mA +/-1.5% + 10 digits, 400 mA +/-2% + 10 digits, 2 A +/-2.5% + 20 digits AC current accuracy, 0.01 uA in 100 uA range AC current resolution
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 2670787 |
| Amperage Rating | 100 to 1000 uA, 10 to 400 mA, 2 A |
| ARRA Compliant | U |
| Battery Type | 9 |
| Buy American Compliant | U |
| Capacitance | 40.00 nF, 400.0 nF, 4.000 µF, 40.00 µF, 400.0 µF |
| Catalog Number | HD160C |
| Country of Origin | TW |
| Currency | USD |
| Dimensions | 7.9 in L x 4 in W x 2.3 in H |
| Diode Test | Yes |
| Display Type | LCD |
| Enclosure Type | IP67 |
| EU RoHS Indicator | Y |
| Frequency Rating | 100.00 Hz, 1000.0 Hz, 10.000 kHz, 100.00 kHz, 1000.0 kHz, 10.000 M Hz |
| Gross Weight Per Pack | 1.4200 lb |
| Gross Weight per Pack Metric | 0.64 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 9030310000 |
| Height | 2.30 in |
| Height [Metric] | 5.8420 cm |
| Length | 7.90 in |
| Length [Metric] | 20.0660 cm |
| Material | Thermoplastic |
| Model | HD160C |
| Resistance | 1000.0 O, 10.00 kO, 100.00 kO, 1000.0 kO, 10.000 MO, 40.00 MO |
| Resolution | 0.1 mV |
| Safety Rating | CAT IV 1000 V |
| Standards | RoHS CompliantCE MarkedcCSAus CertifiedC-Tick N10140EN 61010-1EN 60529EN 61326-1NEDA 1604JIS 006PIEC 6F22PROP65: This product is in compliance with PROP65; it is not known to contain any chemicals associated with this regulation |
| Temperature Rating | 0 to 50 °C |
| Type | Heavy Duty True RMS |
| UNSPSC | 41113630 |
| UPC 11 | 09596935326 |
| UPC 12 | 095969353267 |
| Voltage Rating | DC Voltage: 1000.0 mV, 10.000 V, 100.00 V, 1500.0 V AC Voltage:1000.0 mV, 10.000 V, 100.00 V, 1000.0 V |
| Width | 4.00 in |
| Width [Metric] | 10.1600 cm |
| Stock Status | NONSTOCK |
| Brand | Fluke® |
| Manufacturer | Fluke Corporation |
| Display 4 digit LCD, 9999 counts, with annunciators, menu features and 41 segment bargraph, true-rms |
| Highest voltage capability, measuring to 1500 VDC and 1000 VAC |
| Special sealing for environment and water resistance |
| Constructed with drop-resistant housing and PCB mounting |
| Measures capacitance, temperature and frequency |
| Superior 10000 count resolution with bar graph |
| Magne-Grip™ holster, frees both hands for work |
| Built-in temperature measurement |
| Digi-Glo™ bright backlight |
| Display 4 digit LCD, 9999 counts, with annunciators, menu features and 41-segment bargraph |
| Polarity indication automatic |
| Input overload indication OL, -OL |
| Auto power down |
| 40 nF to 400 uF ranges +/-3.0% RDG + 10 digits, 400 nF to 40 uF ranges +/-3.0% RDG + 5 digits capacitance accuracy, 0.01 nF capacitance resolution |
| 100 uA range +/-0.5% RDG + 10 digits, 1000 uA to 400 mA ranges +/-0.5% RDG + 5 digits, 2 A range +/-1.5% RDG + 10 digits DC current accuracy, 0.01 uA in 100 uA range DC current resolution |
| 100 uA to 100 mA +/-1.5% + 10 digits, 400 mA +/-2% + 10 digits, 2 A +/-2.5% + 20 digits AC current accuracy, 0.01 uA in 100 uA range AC current resolution |
