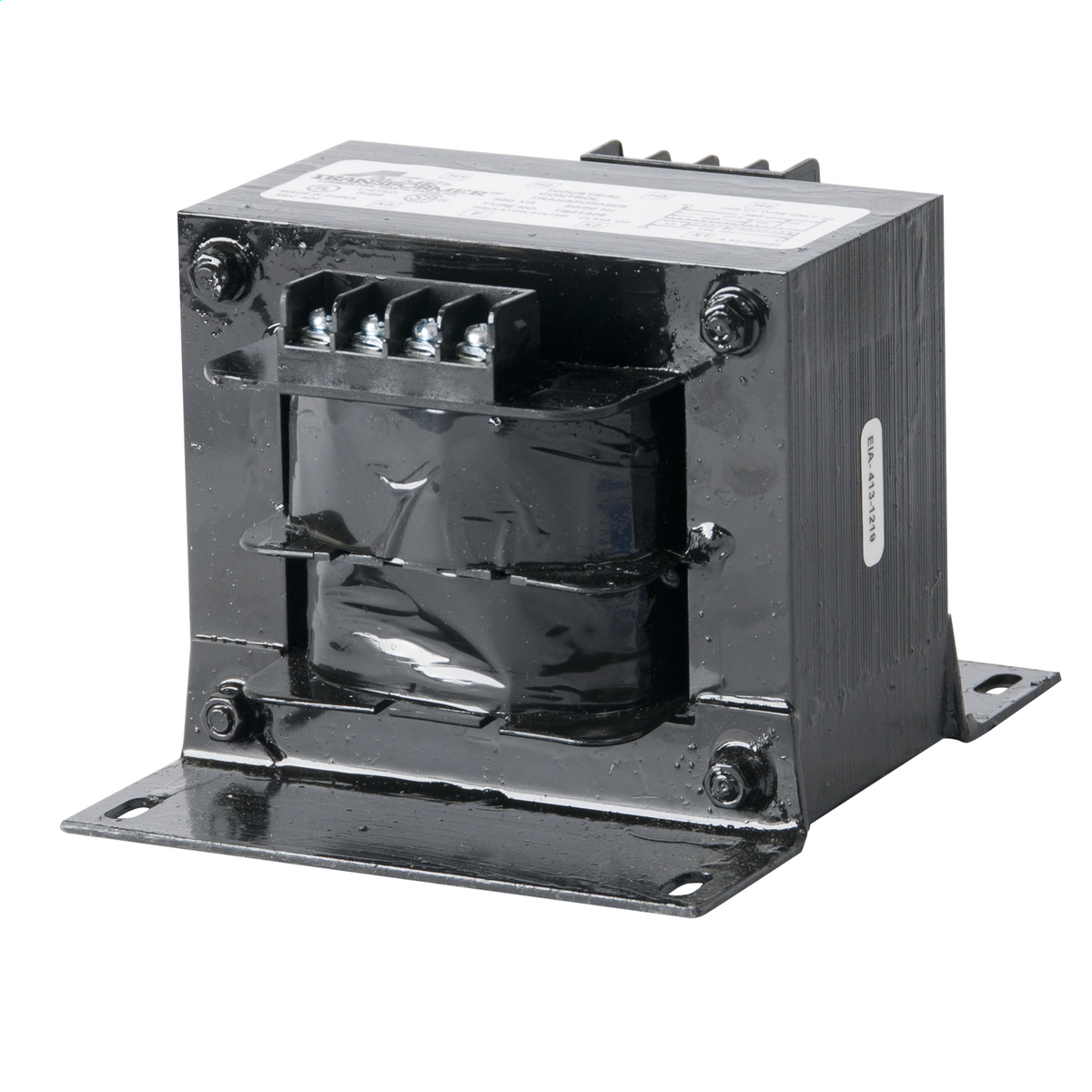

Acme Electric® TB32405 TB Series Industrial Open Style Control Transformer, 240/416/480/600 VAC Primary, 250 VA, 50/60 Hz
Control Transformers
1155630
MFG #: TB32405
Acme Electric
68.53000
/ ea
Acme TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized without sacrificing secondary voltage stability beyond practical limits. Acme TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety. Voltage regulation of Acme TB Series transformers exceeds standards recommended by the National Electrical Manufacturers Association. Secondary circuit voltage drop between no-load and momentary overload remains exceptionally low. This excellent secondary circuit voltage regulation assures reliable operation of electromagnetic components and may permit the use of a smaller and less expensive industrial control transformer.
- Safety Data Sheet URL - HCC_SDS.pdf(Safety Data Sheet URL)
- Seller Home Page URL - en(Seller Home Page URL)
- www.hubbell-acmeelectric.com(Seller Home Page URL)
- Spec Sheet URL - ds-494-datasheet(Spec Sheet URL)
- Tech Drawing URL - Acme_TB32405_TECHNICAL_DRAWINGS.dwg(Tech Drawing URL)
- Warranty URL - WAR_product_warranty_information.pdf(Warranty URL)
- Applications
- Features
Open Core & Coil |
250 VA |
Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency |
Designs incorporate precision split bobbin wound coils for improved regulation |
Primary fuse blocks and secondary fuse kits available and easily adaptable |
Series-parallel connecting links save wiring and labor costs |
Terminal blocks allow full access for ring terminals for easy installation even with solid strand conductors |
Integrally molded terminal blocks with isolation barriers to prevent arc over |
Copper windings on all groups |
Heavy gauge steel mounting plate adapts to various mounting dimensions |
Voltage regulation exceeds NEMA requirements |
Open coil and core |
0.22 x 0.5 in mounting slot |
240/416/480/600; 230/400/460/575, 220/380/440/550; 208/500 VAC primary volt |
99/120/130; 95/115/125; 91/110/120; 85/100/110 VAC secondary volt |
Silicon steel enclosure |
