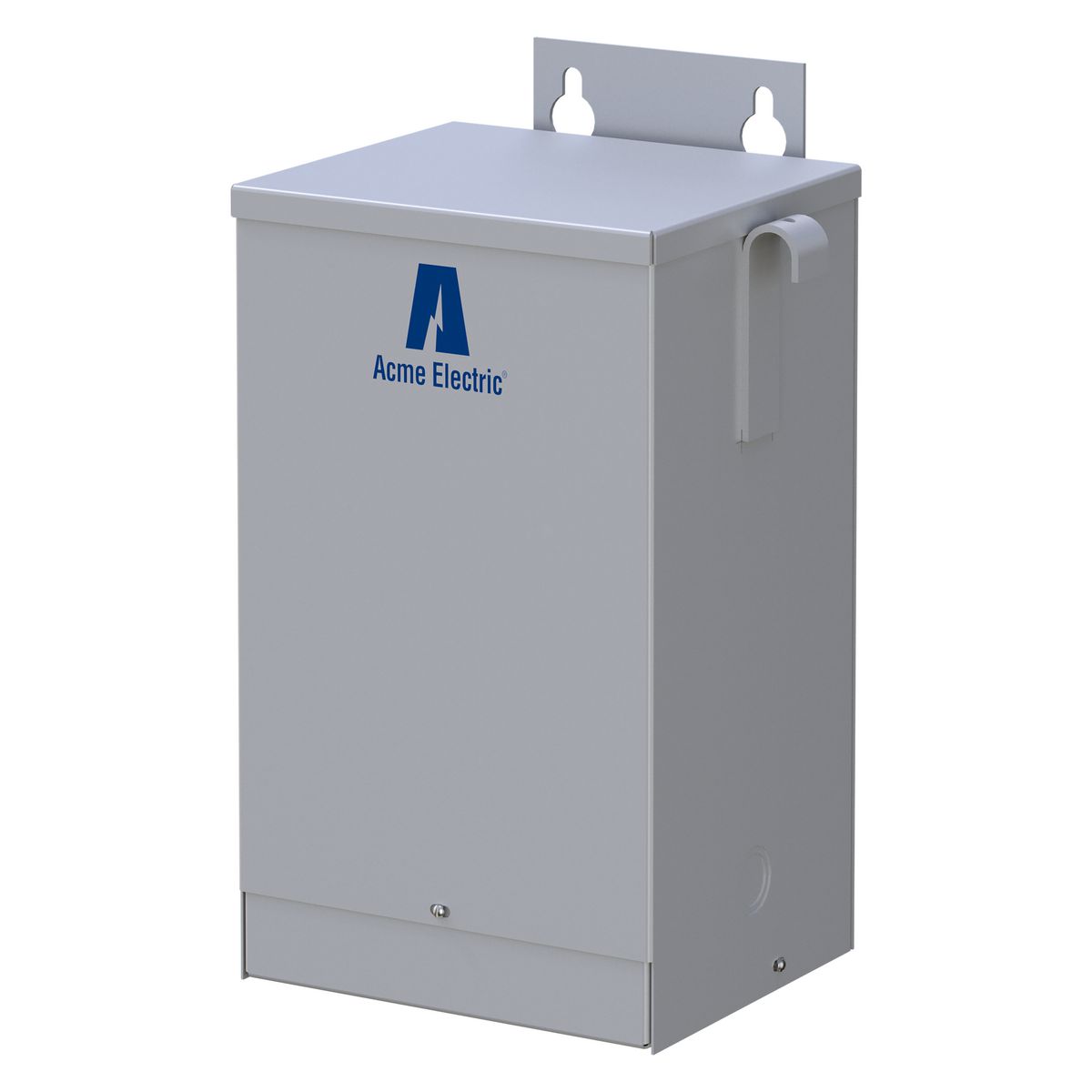

Acme Electric® T113077 Isolation Buck Boost Transformer, 120/240 VAC Primary, 16/32 VAC Secondary, 5 kVA, 60 Hz, 1 Phase
Buck Boost Transformers
1147901
MFG #: T113077
Acme Electric
1509.47000
/ ea
Acme Electric® Buck Boost Transformer, Isolation, 120/240 VAC Primary, 16/32 VAC Secondary, 5 kVA, 60 Hz, 1 Phase, 312/156 A Maximum, Wire Lead Screw, Wall Mount, Class H/180 deg C, NEMA 3R/IP54, 115 deg C, 14.38 in H x 10.31 in W x 7.13 in D
- Catalog URL - IDW_DOCUMENT_1480741299932.pdf(Catalog URL)
- Install Instructions 1 URL - 11112_27XS6CI9KMNTPDRQ.pdf(Install Instructions 1 URL)
- Seller Home Page URL - en(Seller Home Page URL)
- Tech Drawing URL - Acme_BB3_TECHNICAL_DRAWINGS.dwg(Tech Drawing URL)
- Safety Data Sheet URL - HCC_SDS.pdf(Safety Data Sheet URL)
- Spec Sheet URL - 11112_AGC5QT162J34VLEN.pdf(Spec Sheet URL)
- Warranty URL - WAR_product_warranty_information.pdf(Warranty URL)
- Applications
- Features
| Encapsulated |
| 5 kVA |
| Encapsulated core and coil |
| Buck-boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 to 20 PCT |
| The most common example is boosting 208 - 230 VAC, usually to operate a 230 VAC motor such as an air-conditioner compressor, from a 208 VAC supply line |
| Anytime a line voltage change in the 5 to 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense |
| Buck-boost transformers are an economical way to correct a potentially very serious problem |
