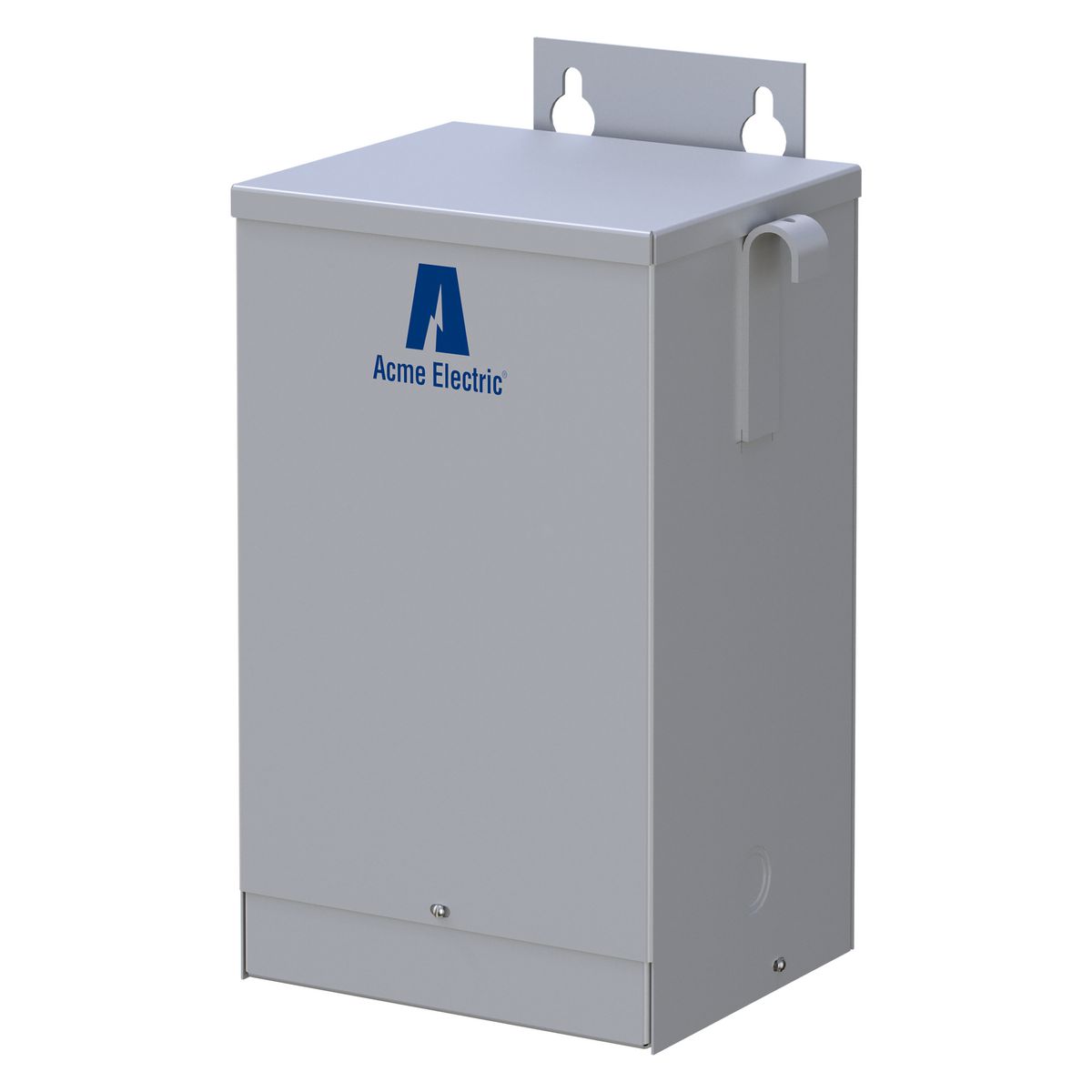

Acme Electric® T111686 Encapsulated Buck Boost Transformer, 120/240 VAC Primary, 12/24 VAC Secondary, 3 kVA, 60 Hz
Custom_Product_Images_Illustration
Acme Electric® T111686 Encapsulated Buck Boost Transformer, 120/240 VAC Primary, 12/24 VAC Secondary, 3 kVA, 60 Hz
SKU4224
MFGR #T111686
$/ea
Acme Electric® Buck Boost Transformer, Encapsulated, 120/240 VAC Primary, 12/24 VAC Secondary, 3 kVA, 60 Hz, 1 Phase, 250/125 A Maximum, Wire Lead Screw, Wall Mount, Class H/180 deg C, NEMA 3R, 115 deg C, Steel Housing, 11.5 in H x 10.31 in W x 5.13 in D
Acme Electric® Buck Boost Transformer, Encapsulated, 120/240 VAC Primary, 12/24 VAC Secondary, 3 kVA, 60 Hz, 1 Phase, 250/125 A Maximum, Wire Lead Screw, Wall Mount, Class H/180 deg C, NEMA 3R, 115 deg C, Steel Housing, 11.5 in H x 10.31 in W x 5.13 in D
Application For Low Voltage Lighting Or Control Circuitry ARRA Compliant C Boost Voltage 30.3 KVA/125 AMP: 220 V Line And 242 V Load Buy American Compliant C Catalog Number T111686 Connection Wire Lead Screw Terminal Connection Type Wire Lead Screw Country of Origin MX Currency USD Dimensions 11.5 in H x 10.31 in W x 5.13 in D Enclosure NEMA 3R Steel Enclosure Type NEMA 3R Gross Weight Per Pack 55.0000 lb Gross Weight per Pack Metric 24.95 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504320000 Height 11.50 in Height [Metric] 29.2100 cm Housing Material Steel Insulation Class H/180 deg C Insulation Class 180 DEG C Class H Length 7.13 in Length [Metric] 18.1102 cm Maximum Amperage Rating 250/125 A Maximum Output Current 125/250 A Mounting Wall Mounting Type Wall Number Of Phases 1 Returnable Y Standard UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number X3221, CSA Certified, OSHA Compliant, ANSI, IEEE Standards ARRA, Buy American Act and RoHS Compliant, UL 506, UL E79947V1, UL Control No. 50B8, UL Insulation No. X3221, CSA Certified, OSHA Approved, ANSI Specified, IEEE Certified Temperature Rating 115 DEG C Rise Type Encapsulated UNSPSC 39121025 UPC 11 04750308493 UPC 12 047503084939 Width 10.31 in Width [Metric] 26.1874 cm Stock Status NONSTOCK Brand Acme Electric Manufacturer Acme Electric Frequency Rating 60 Hz Phase 1 Power Rating 3 kVA Primary Voltage 120/240 VAC Secondary Voltage 12/24 VAC For Low Voltage Lighting Or Control Circuitry Encapsulated core and coil; Buck-boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 - 20 PCT; The most common example is boosting 208 - 230 V, usually to operate a 230 V motor such as an air-conditioner compressor, from a 208 V supply line; Buck-boost transformers are an economical way to correct a potentially very serious problem; Anytime a line voltage change in the 5 - 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense; 10-year limited warranty Easily configured for numerous applications Lower cost solution 5-10 times increase in kVA Encapsulated core and coil Buck-boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 to 20 PCT The most common example is boosting 208 - 230 VAC, usually to operate a 230 VAC motor such as an air-conditioner compressor, from a 208 VAC supply line Buck-boost transformers are an economical way to correct a potentially very serious problem Anytime a line voltage change in the 5 to 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense Single or three phase applications Boost voltage 30.3 kVA/125 A 220 VAC line and 242 VAC load Buck voltage 61 kVA/263 A 252 VAC line and 240 VAC load 250 A at 12 VAC, 125 A at 24 VAC power rating
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Low Voltage Lighting Or Control Circuitry |
| ARRA Compliant | C |
| Boost Voltage | 30.3 KVA/125 AMP: 220 V Line And 242 V Load |
| Buy American Compliant | C |
| Catalog Number | T111686 |
| Connection | Wire Lead Screw Terminal |
| Connection Type | Wire Lead Screw |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 11.5 in H x 10.31 in W x 5.13 in D |
| Enclosure | NEMA 3R Steel |
| Enclosure Type | NEMA 3R |
| Gross Weight Per Pack | 55.0000 lb |
| Gross Weight per Pack Metric | 24.95 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504320000 |
| Height | 11.50 in |
| Height [Metric] | 29.2100 cm |
| Housing Material | Steel |
| Insulation | Class H/180 deg C |
| Insulation Class | 180 DEG C Class H |
| Length | 7.13 in |
| Length [Metric] | 18.1102 cm |
| Maximum Amperage Rating | 250/125 A |
| Maximum Output Current | 125/250 A |
| Mounting | Wall |
| Mounting Type | Wall |
| Number Of Phases | 1 |
| Returnable | Y |
| Standard | UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number X3221, CSA Certified, OSHA Compliant, ANSI, IEEE |
| Standards | ARRA, Buy American Act and RoHS Compliant, UL 506, UL E79947V1, UL Control No. 50B8, UL Insulation No. X3221, CSA Certified, OSHA Approved, ANSI Specified, IEEE Certified |
| Temperature Rating | 115 DEG C Rise |
| Type | Encapsulated |
| UNSPSC | 39121025 |
| UPC 11 | 04750308493 |
| UPC 12 | 047503084939 |
| Width | 10.31 in |
| Width [Metric] | 26.1874 cm |
| Stock Status | NONSTOCK |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 60 Hz |
| Phase | 1 |
| Power Rating | 3 kVA |
| Primary Voltage | 120/240 VAC |
| Secondary Voltage | 12/24 VAC |
| For Low Voltage Lighting Or Control Circuitry |
| Encapsulated core and coil; Buck-boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 - 20 PCT; The most common example is boosting 208 - 230 V, usually to operate a 230 V motor such as an air-conditioner compressor, from a 208 V supply line; Buck-boost transformers are an economical way to correct a potentially very serious problem; Anytime a line voltage change in the 5 - 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense; 10-year limited warranty |
| Easily configured for numerous applications |
| Lower cost solution |
| 5-10 times increase in kVA |
| Encapsulated core and coil |
| Buck-boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 to 20 PCT |
| The most common example is boosting 208 - 230 VAC, usually to operate a 230 VAC motor such as an air-conditioner compressor, from a 208 VAC supply line |
| Buck-boost transformers are an economical way to correct a potentially very serious problem |
| Anytime a line voltage change in the 5 to 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense |
| Single or three phase applications |
| Boost voltage 30.3 kVA/125 A 220 VAC line and 242 VAC load |
| Buck voltage 61 kVA/263 A 252 VAC line and 240 VAC load |
| 250 A at 12 VAC, 125 A at 24 VAC power rating |
