Open Core & Coil
Epoxy encapsulated design protects core and coil assembly from potentially damaging contaminants
Integrally molded terminal blocks with isolation barriers to prevent arc over, terminal blocks allow full access for ring terminals for easy installation and solid termination
Heavy gauge steel mounting feet
Available factory or field installed fuse blocks provide integral fusing on the primary or primary and secondary
Dual labeling for easy product identification when equipped with a fuse block
0.31 x 0.69 in mounting slot
Encapsulated core and coil
These transformers have the ability to handle potentially damaging high in-rush currents that occur when electromagnetic components are energized, without sacrificing the required stable output voltage
Transformer enclosure temperature shall not exceed 65 deg C plus the ambient
Transformer shall incorporate an electrostatic shield for the attenuation of voltage spikes, line noise and transients
Transformer coils are typically wound with aluminum or copper for increased insulation life, cooler operation and lower losses

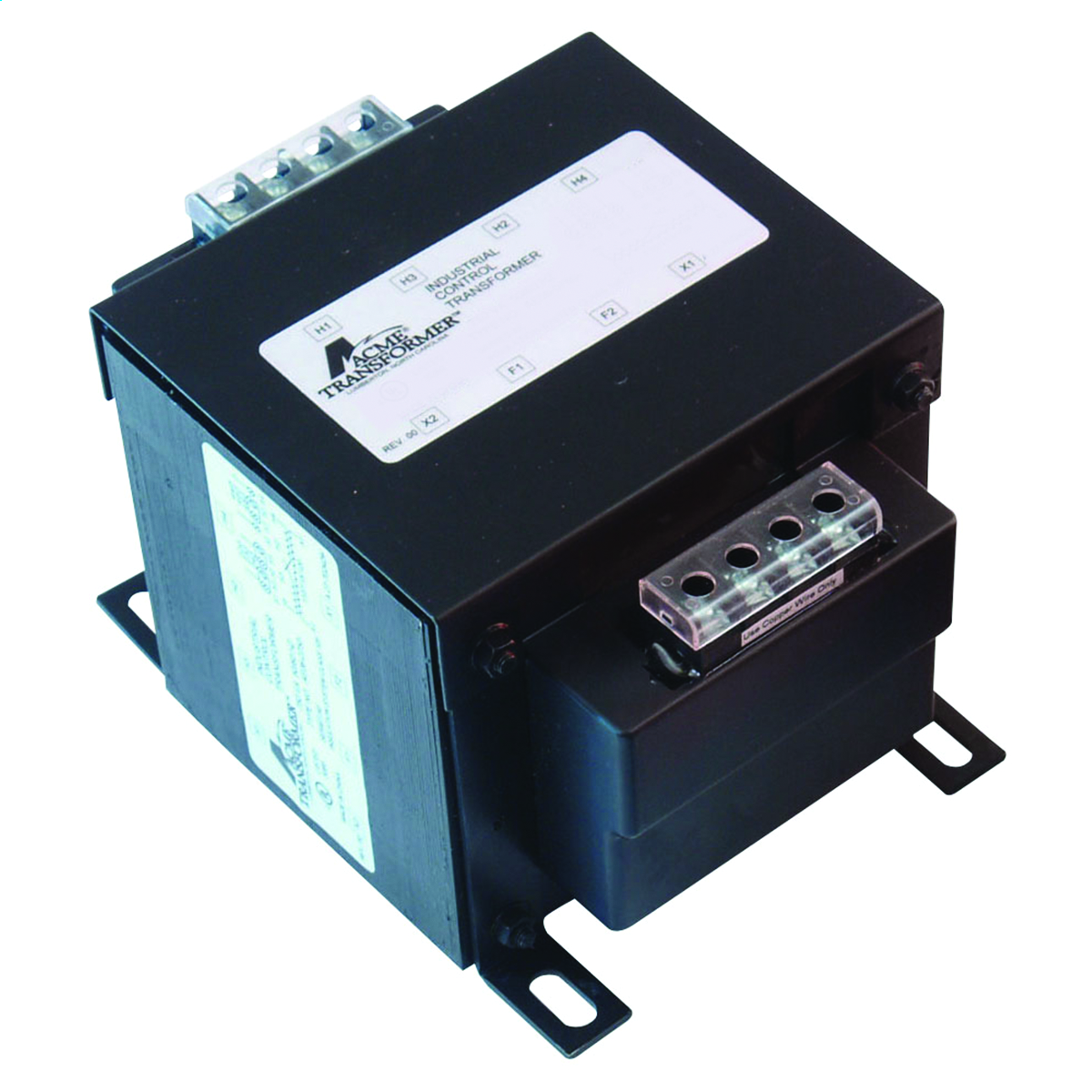

The AE and CE series design improves the dissipation of the heat away from the core and coil assembly providing cooler operation
In addition, the AE and CE series industrial control transformers seal the transformer's windings and internal terminations within an epoxy encapsulated encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants
240 x 480, 230 x 460, 220 x 440 VAC primary voltage
120/115/110 VAC secondary voltage
Furthermore, acme compact design helps minimize the mounting footprint, providing more flexibility in applications where space is a premium
