BURNDY®

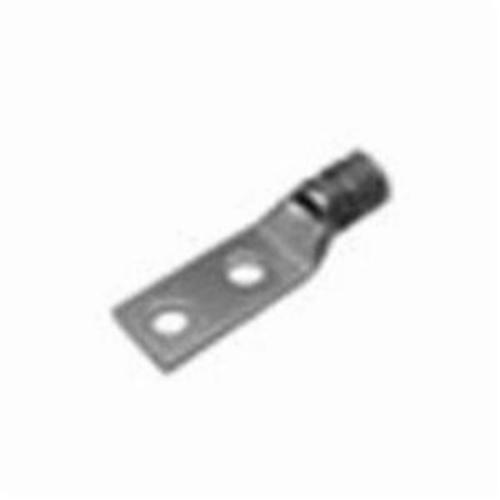

3STR 2-H 3/8STUD
Custom_Product_Images_Illustration
BURNDY®
3STR 2-H 3/8STUD
SKU334396
MFGR #YA3CL2TC38
Your Cost: $9.62/ea
List: BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Barrel Size 0.38 in OD x 0.88 in L Barrel Type Chamfered/Short/Skived/Standard Catalog Number YA3CL2TC38 Color White Country of Origin US Gross Weight Per Pack 0.0400 lb Overall Length 3.06 in Series YA-L-2TC Specifications 15/16 in L Wire Strip, 1 in Stud Hole Spacing Temperature Rating 90 °C Tongue Size 0.58 in W x 0.08 in THK Tongue Type Standard Straight Type 2-Hole UNSPSC 39121405 UPC 11 78181001840 UPC 12 781810018408 Voltage Rating 600 VAC to 35 kV Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 3 AWG Conductor Type Solid/Stranded Copper Die Code 9 Material Copper Stud Size 3/8 in Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Die Index: 9, Wire Strip Length: 15/16 IN, Finish: Electro-Tin Plated, Color Code: White, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W3CRT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W3CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U3CRT Die, (1), Y46 Tool, U3CRT Die With PUADP-1 Adapter, (1), Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1), Y1MRTC Tool, (2), Conductor Type: Commercial Stranded Copper Die set catalog number and (number of crimps): mechanical: MD6, OUR840, MD7-34R tool, W3CRT die, (1), hydraulic: BCT500HS, Y500CTHS tool, W3CRT die, (1), Y35, Y39, Y750, PAT750 tool, U3CRT die, (1), Y46 tool, U3CRT die with PUADP-1 adapter, (1), dieless tools (number of crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 tool, (1), Y1MRTC tool, (2), conductor type: commercial stranded copper 3 AWG stranded, 2 AWG solid conductor
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Barrel Size | 0.38 in OD x 0.88 in L |
| Barrel Type | Chamfered/Short/Skived/Standard |
| Catalog Number | YA3CL2TC38 |
| Color | White |
| Country of Origin | US |
| Gross Weight Per Pack | 0.0400 lb |
| Overall Length | 3.06 in |
| Series | YA-L-2TC |
| Specifications | 15/16 in L Wire Strip, 1 in Stud Hole Spacing |
| Temperature Rating | 90 °C |
| Tongue Size | 0.58 in W x 0.08 in THK |
| Tongue Type | Standard Straight |
| Type | 2-Hole |
| UNSPSC | 39121405 |
| UPC 11 | 78181001840 |
| UPC 12 | 781810018408 |
| Voltage Rating | 600 VAC to 35 kV |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 3 AWG |
| Conductor Type | Solid/Stranded Copper |
| Die Code | 9 |
| Material | Copper |
| Stud Size | 3/8 in |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Die Index: 9, Wire Strip Length: 15/16 IN, Finish: Electro-Tin Plated, Color Code: White, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W3CRT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W3CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U3CRT Die, (1), Y46 Tool, U3CRT Die With PUADP-1 Adapter, (1), Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1), Y1MRTC Tool, (2), Conductor Type: Commercial Stranded Copper |
| Die set catalog number and (number of crimps): mechanical: MD6, OUR840, MD7-34R tool, W3CRT die, (1), hydraulic: BCT500HS, Y500CTHS tool, W3CRT die, (1), Y35, Y39, Y750, PAT750 tool, U3CRT die, (1), Y46 tool, U3CRT die with PUADP-1 adapter, (1), dieless tools (number of crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 tool, (1), Y1MRTC tool, (2), conductor type: commercial stranded copper |
| 3 AWG stranded, 2 AWG solid conductor |
