3M™ Scotchcast™ 054007-02403 85 4-Way Multi-Mold Resin Splice Kit, 0 - 600 V, 7/8 in OD Run/Tap, 1/2 in In-Line Dia Cable, 8 in L Splice
Insulated Splice Kit, Low Voltage (below 5 KV)
461729
MFG #: 7100059057
3M™
129.47000
/ ea

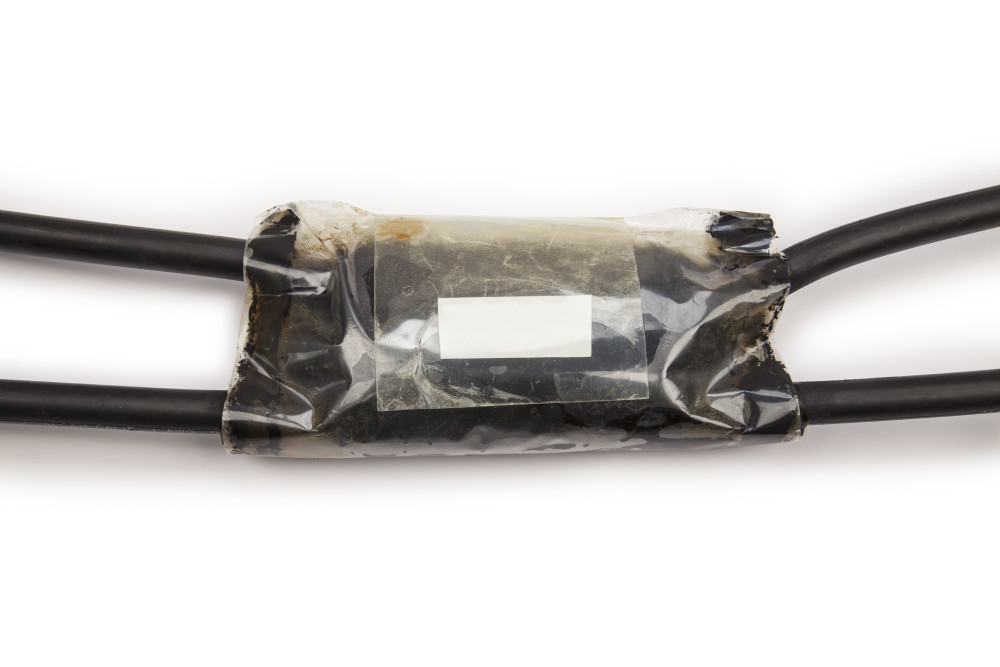

3M™ Scotchcast™ 85 Series Multi-Mold Resin Splice Kit is specially designed to splice 1kV-rated cables. This versatile splice kit electrically insulates odd-sized and odd-shaped splices in underground applications.
- Compliance Cert URL - Scotch_054007_10083_Compliance_Certificate.pdf(Compliance Cert URL)
- http://www.3m.com(Seller Home Page URL)
- Install Instructions 1 URL - 11579_1GPIOSWRMHQTC5N6.pdf(Install Instructions 1 URL)
- Install Instructions URL - 3m-scotchcast-multi-mold-power-cable-splice-kit-85series.pdf(Install Instructions URL)
- Line Drawing URL(Line Drawing URL)
- Safety Data Sheet URL - mediawebserver?mwsId=SSSSSuUn_zu8l00x4xt9n82G5v70k17zHvu9lxtD7SSSSSS--(Safety Data Sheet URL)
- Spec Sheet URL - 11579_M85THUKG6Z9AREL2.pdf(Spec Sheet URL)
- Tech Drawing URL - 11579_V2ZOCFGT83XP0AN1.pdf(Tech Drawing URL)
- Applications
- Features
| used to electrically insulate odd-sized and odd-shaped splices on cables rated through 1kV |
| Multi-Mode |
| Versatility designed into each kit accommodates a wide range of cable size |
| All materials provided to insulate and waterproof one splice, compound has low viscosity for fast, complete filling of splice and low exotherm which will not damage plastic insulated cable |
| Convenient closed mixing pouch permits clean, easy resin handling |
| Wrap around polyester film mold contains porous webbing which assures proper insulation spacing around splice and connector |
| No special tools required |
| Electrically insulates odd-sized and odd-shaped splices on cables |
| Pliable plastic molds are formed around splices |
| Rated for 1 kV cables |
| 10-1/4 in spacer web, 0.85 sealing putty |
| Accommodates 500 kcmil (run), 4/0 AWG (tap) compression conductor, 250 kcmil (run), 2/0 AWG (tap) split bolt conductor, 750 kcmil inline conductor |
| 3-1/4 in split bolt, 6 in H or C-tap compression max conductor size (height plus width) |
| 6 in max sheath opening length |
| 250 kcmil (run), 2/0 AWG (tap) |
| 444 PSI tensile strength |
| 98% elongation |
| 524 V/mil dielectric strength |
| 250 Kcmil, 2/0 AWG, 500 Kcmil, 4/0 AWG conductor sizes |
| 10/Case |
