SKU260329
MFGR #7100164194
Your Cost: $154.30/ea
List: Molded Rubber Inline Splicing Kit 15kV

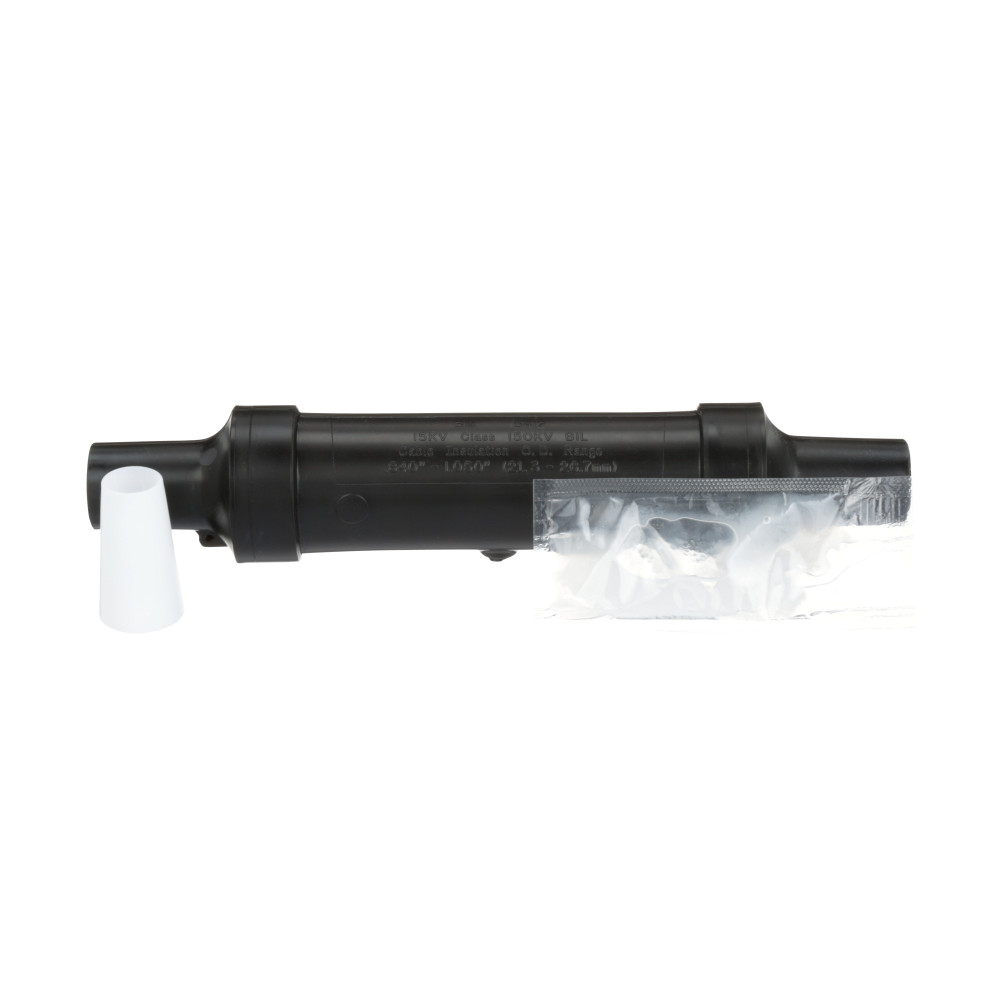

Molded Rubber Inline Splicing Kit 15kV
Alternate Catalog Number 5411-20006 ARRA Compliant X Buy American Compliant X Cable Type Concentric Neutral/Jacketed Concentric Neutral Catalog Number 7100164194 Color Black Connector 20006 Connector Type 20006 Country of Origin US Currency USD Dimensions 1.76 in Dia EU RoHS Indicator C Expiry|Spoilage Date Applicable Indicator Y Gross Weight Per Pack 0.8000 lb Gross Weight per Pack Metric 0.36 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8546900000 Height 3.00 in Height [Metric] 7.6200 cm Insulation Size 0.637 to 0.9 in Length 11.00 in Length [Metric] 27.9400 cm Material Composition Declaration Contact 3M for information Number Of Conductors 1 Returnable Y Series QS-II 5411 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantIEEE 404 Sub Brand Scotch™ Temperature Rating 90 °C Type In-Line UNSPSC 26121600 UPC 11 05400711861 UPC 12 054007118619 Width 3.30 in Width [Metric] 8.3820 cm Stock Status NONSTOCK Brand 3M™ Manufacturer 3M™ Conductor Size 2/0 AWG Material EPDM Rubber Splice Length 9 in Voltage Rating 15 kV 1-piece in-line splice to use on jacketed concentric neutral (JCN) or concentric neutral (CN) cables Provides an electrical connection for the outer conducting jacket to the cable semi-conductive jacket Designed to use on cables that can withstand a maximum temperature of 194 deg F The cold shrink jacket is made of peroxide-cured EPDM rubber which provides moisture resistance and durability Factory tested to offer reliability 2/0 AWG stranded conductor
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 5411-20006 |
| ARRA Compliant | X |
| Buy American Compliant | X |
| Cable Type | Concentric Neutral/Jacketed Concentric Neutral |
| Catalog Number | 7100164194 |
| Color | Black |
| Connector | 20006 |
| Connector Type | 20006 |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 1.76 in Dia |
| EU RoHS Indicator | C |
| Expiry|Spoilage Date Applicable Indicator | Y |
| Gross Weight Per Pack | 0.8000 lb |
| Gross Weight per Pack Metric | 0.36 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8546900000 |
| Height | 3.00 in |
| Height [Metric] | 7.6200 cm |
| Insulation Size | 0.637 to 0.9 in |
| Length | 11.00 in |
| Length [Metric] | 27.9400 cm |
| Material Composition Declaration | Contact 3M for information |
| Number Of Conductors | 1 |
| Returnable | Y |
| Series | QS-II 5411 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantIEEE 404 |
| Sub Brand | Scotch™ |
| Temperature Rating | 90 °C |
| Type | In-Line |
| UNSPSC | 26121600 |
| UPC 11 | 05400711861 |
| UPC 12 | 054007118619 |
| Width | 3.30 in |
| Width [Metric] | 8.3820 cm |
| Stock Status | NONSTOCK |
| Brand | 3M™ |
| Manufacturer | 3M™ |
| Conductor Size | 2/0 AWG |
| Material | EPDM Rubber |
| Splice Length | 9 in |
| Voltage Rating | 15 kV |
| 1-piece in-line splice to use on jacketed concentric neutral (JCN) or concentric neutral (CN) cables |
| Provides an electrical connection for the outer conducting jacket to the cable semi-conductive jacket |
| Designed to use on cables that can withstand a maximum temperature of 194 deg F |
| The cold shrink jacket is made of peroxide-cured EPDM rubber which provides moisture resistance and durability |
| Factory tested to offer reliability |
| 2/0 AWG stranded conductor |
