Lutron®
1113462
Custom_Product_Images_Illustration
Lutron®
1113462
SKU1113462
MFGR #MS-OPS5M-BL
Your Cost: $42.75/ea

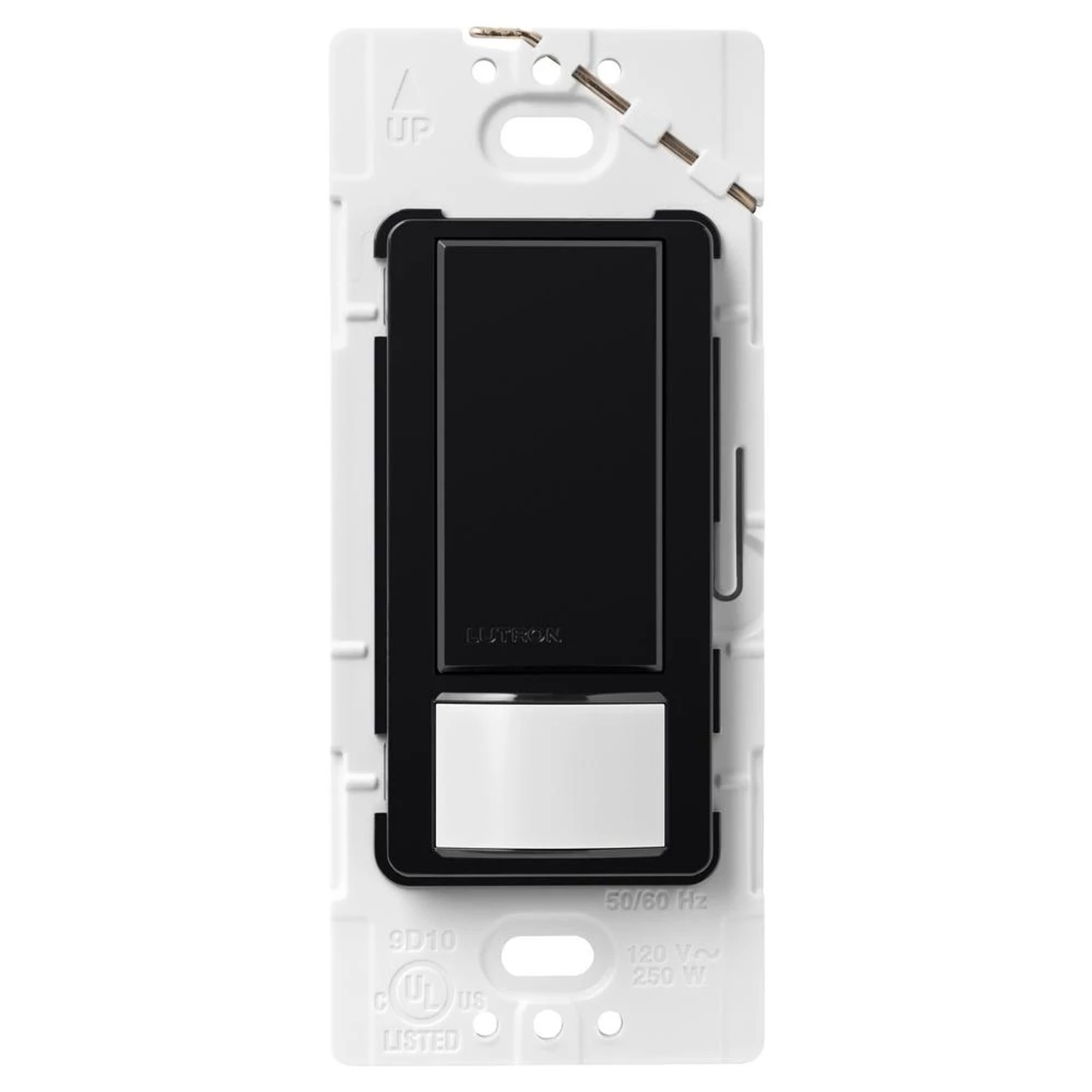

The Lutron® Maestro™ occupancy sensing switch combines a Maestro™ switch with a passive infrared occupancy or vacancy sensor. The sensor detects the heat from occupants moving within an area to determine whether the space is occupied. Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly.
The Lutron® Maestro™ occupancy sensing switch combines a Maestro™ switch with a passive infrared occupancy or vacancy sensor. The sensor detects the heat from occupants moving within an area to determine whether the space is occupied. Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly.
Amperage Rating 5 A Application Lighting Control ARRA Compliant N Body PLASTIC Brand Lutron® Buy American Compliant N Catalog Number MS-OPS5M-BL Color Black Country of Origin CN Coverage 900 ft² Currency USD Dimensions 4-11/16 in H x 2-15/16 in W x 1-7/16 in D Enclosure Plastic Environmental Conditions 0 to 90% humidity, non-condensing. Indoor use only. EU RoHS Indicator N Gross Volume Per Pack 0.04 Gross Volume per Pack Metric 0.00 Gross Weight Per Pack 0.2500 lb Gross Weight per Pack Metric 0.11 Gross Weight UOM Metric kg Height 4.50 in Height [Metric] 11.4300 cm Length 2.30 in Length [Metric] 5.8420 cm Load 5 A@120 VAC lights/3 A@120 VAC@ fan/3 A@120 VAC@light and fan Manufacturer Lutron Electronics Co., Inc Mounting Wallbox Mounting Type Wall/Box Operating Temperature 32 to 104 °F Power Rating 360/450/600 W Response Frequency 50/60 Hz Sensing Range 900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage Sensor Passive infrared motion detection with dependable Lutron XCT technology Sensor Type Passive Infrared Series MS-OPS5M Standard UL, cUL, NOM Standards UL Listed, NOM Certified Stock Status NONSTOCK Sub Brand Maestro Supply Voltage 120 VAC Temperature Rating 32 to 104 °F Time Delay 1 to 30 mins Type Occupancy sensor switch, multi-location/3-way/single-pole UNSPSC 39122236 UPC 11 02755798334 UPC 12 027557983341 Viewing Angle 180 ° Voltage Rating 120 VAC Width 2.30 in Width [Metric] 5.8420 cm Lighting Control Combines a Maestro switch with a passive infrared occupancy sensor. Detects the heat from occupants moving within an area to determine whether the space is occupied. Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly. Passive infrared sensors with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view. Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage. Can be set to auto-on/auto-off or manual-on/auto-off. Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment. Occupancy sensing switch loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan. Ground wire required. Occupancy/vacancy sensor switch, single-pole/multi-location, 5 A lighting/3 A fan capacity Automatically switches lights on and off to provide convenience and energy savings Controls incandescent/halogen, magnetic low voltage, electronic low voltage, non-dim fluorescent, non-dim LED loads 5 A light/3 A fan 600 W (incandescent/halogen/ELV), 450 W (MLV), 360 W (CFL/LED) power rating 400 sq-ft minor motion coverage 1/5/15/30 min (Adjustable) time delay
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Media
- Substitute Products
| Amperage Rating | 5 A |
| Application | Lighting Control |
| ARRA Compliant | N |
| Body | PLASTIC |
| Brand | Lutron® |
| Buy American Compliant | N |
| Catalog Number | MS-OPS5M-BL |
| Color | Black |
| Country of Origin | CN |
| Coverage | 900 ft² |
| Currency | USD |
| Dimensions | 4-11/16 in H x 2-15/16 in W x 1-7/16 in D |
| Enclosure | Plastic |
| Environmental Conditions | 0 to 90% humidity, non-condensing. Indoor use only. |
| EU RoHS Indicator | N |
| Gross Volume Per Pack | 0.04 |
| Gross Volume per Pack Metric | 0.00 |
| Gross Weight Per Pack | 0.2500 lb |
| Gross Weight per Pack Metric | 0.11 |
| Gross Weight UOM Metric | kg |
| Height | 4.50 in |
| Height [Metric] | 11.4300 cm |
| Length | 2.30 in |
| Length [Metric] | 5.8420 cm |
| Load | 5 A@120 VAC lights/3 A@120 VAC@ fan/3 A@120 VAC@light and fan |
| Manufacturer | Lutron Electronics Co., Inc |
| Mounting | Wallbox |
| Mounting Type | Wall/Box |
| Operating Temperature | 32 to 104 °F |
| Power Rating | 360/450/600 W |
| Response Frequency | 50/60 Hz |
| Sensing Range | 900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage |
| Sensor | Passive infrared motion detection with dependable Lutron XCT technology |
| Sensor Type | Passive Infrared |
| Series | MS-OPS5M |
| Standard | UL, cUL, NOM |
| Standards | UL Listed, NOM Certified |
| Stock Status | NONSTOCK |
| Sub Brand | Maestro |
| Supply Voltage | 120 VAC |
| Temperature Rating | 32 to 104 °F |
| Time Delay | 1 to 30 mins |
| Type | Occupancy sensor switch, multi-location/3-way/single-pole |
| UNSPSC | 39122236 |
| UPC 11 | 02755798334 |
| UPC 12 | 027557983341 |
| Viewing Angle | 180 ° |
| Voltage Rating | 120 VAC |
| Width | 2.30 in |
| Width [Metric] | 5.8420 cm |
| Lighting Control |
| Combines a Maestro switch with a passive infrared occupancy sensor. Detects the heat from occupants moving within an area to determine whether the space is occupied. Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly. Passive infrared sensors with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view. Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage. Can be set to auto-on/auto-off or manual-on/auto-off. Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment. Occupancy sensing switch loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan. Ground wire required. |
| Occupancy/vacancy sensor switch, single-pole/multi-location, 5 A lighting/3 A fan capacity |
| Automatically switches lights on and off to provide convenience and energy savings |
| Controls incandescent/halogen, magnetic low voltage, electronic low voltage, non-dim fluorescent, non-dim LED loads |
| 5 A light/3 A fan |
| 600 W (incandescent/halogen/ELV), 450 W (MLV), 360 W (CFL/LED) power rating |
| 400 sq-ft minor motion coverage |
| 1/5/15/30 min (Adjustable) time delay |
