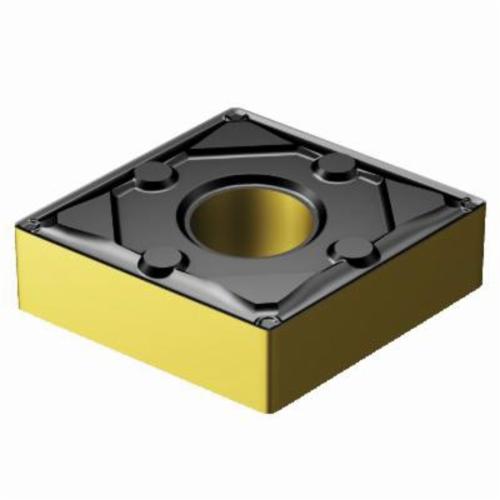

Sandvik Coromant 6612937 T-Max® P Negative Basic Shape Turning Insert, CNMG 322-WF 4315, C-80 deg Diamond, CNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6612937 T-Max® P Negative Basic Shape Turning Insert, CNMG 322-WF 4315, C-80 deg Diamond, CNMG Insert
SKU1250717
MFGR #6612937
Your Cost: $12.58/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 2 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 1/8 in Thickness, 0.3807 in Length, WF Chipbreaker, 0.0312 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: 4315, ANSI Code: CNMG 322-WF 4315, ISO Code: CNMG 09 03 08-WF 4315, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 2 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 1/8 in Thickness, 0.3807 in Length, WF Chipbreaker, 0.0312 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: 4315, ANSI Code: CNMG 322-WF 4315, ISO Code: CNMG 09 03 08-WF 4315, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Alternate Catalog Number CNMG 322-WF 4315 ANSI Code CNMG 322-WF 4315 Catalog Number 6612937 Corner Radius 0.0312 in Country of Origin SE Finish MTCVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Neutral Hole Diameter 0.15 in Included Angle 80 deg ISO Code CNMG 09 03 08-WF 4315 Item Group 112 Length 0.3807 in Relief Angle 0 deg Series T-Max® P Thickness 1/8 in Type Negative Basic Shape Width WF Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker WF Cutting Direction Neutral For Use On Cast Iron and Steel Inscribed Circle 3/8 in Insert Size C - 80 deg Diamond Insert Style CNMG Manufacturer's Grade 4315 Material Carbide Material Grade K/P Maximum Depth of Cut 2 mm Rake Negative Seat Size 09 Shape C-80 deg Diamond Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining Wiper technology for high feed machining Improved machining economy Excellent surface finish Eliminate expensive grinding operations Undisturbed production Less need for supervision 0.1 - 0.5 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 322-WF 4315 |
| ANSI Code | CNMG 322-WF 4315 |
| Catalog Number | 6612937 |
| Corner Radius | 0.0312 in |
| Country of Origin | SE |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.15 in |
| Included Angle | 80 deg |
| ISO Code | CNMG 09 03 08-WF 4315 |
| Item Group | 112 |
| Length | 0.3807 in |
| Relief Angle | 0 deg |
| Series | T-Max® P |
| Thickness | 1/8 in |
| Type | Negative Basic Shape |
| Width | WF |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | WF |
| Cutting Direction | Neutral |
| For Use On | Cast Iron and Steel |
| Inscribed Circle | 3/8 in |
| Insert Size | C - 80 deg Diamond |
| Insert Style | CNMG |
| Manufacturer's Grade | 4315 |
| Material | Carbide |
| Material Grade | K/P |
| Maximum Depth of Cut | 2 mm |
| Rake | Negative |
| Seat Size | 09 |
| Shape | C-80 deg Diamond |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| Wiper technology for high feed machining |
| Improved machining economy |
| Excellent surface finish |
| Eliminate expensive grinding operations |
| Undisturbed production |
| Less need for supervision |
| 0.1 - 0.5 mm/r cutting feed |
| 20 life cycle state |
