Siemens 6EP14372BA20 SITOP Power Supply, 400/500 VAC Input, 24 VDC Output, 960 W, 2/1.7 A, DIN Rail Mount
DC Power Supplies
619725
MFG #: 6EP14372BA20
Siemens
755.00000
/ ea
- Alternate Catalog Number: 6EP1437-2BA20
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: 6EP14372BA20
- Country of Origin: RO
- Currency: USD
- Depth: 150 mm
- EU RoHS Indicator: C
- Frequency Rating: 50/60 Hz
- Gross Volume Per Pack: 484.39
- Gross Volume UOM: in
- Gross Weight Per Pack: 8.1570 lb
- Gross Weight per Pack Metric: 3.70
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8504409540
- Height: 7.09 in
- Height [Metric]: 18.0086 cm
- Length: 8.67 in
- Length [Metric]: 22.0218 cm
- Replaced Catalog Number: 6EP14372BA00
- Returnable: Y
- Series: SITOP PSU300S
- Standards: cULus ListedUL 508 File No. E197259CSA C22.2 107.1 File No. E197259cCSAus CertifiedCSA C22.2 File No. 60950-1UL 60950-1CB CertifiedABS ApprovedDNV-GL Approved
- Type: Stabilized
- UNSPSC: 39121026
- UPC 11: 04089265663
- UPC 12: 040892656633
- Width: 7.88 in
- Width [Metric]: 20.0152 cm
- Stock Status: NORMALLY STOCKED
- Brand: Siemens
- Manufacturer: Siemens
- Amperage Rating: 2/1.7 A Input, 40 A Output
- Input Voltage: 400 to 500 VAC
- Mounting Type: DIN Rail
- Output Voltage: 24 VDC
- Power Rating: 960 W
SIEMENS 6EP14372BA20 SITOP PSU300S 40A STABILIZED POWER SUPPLY INPUT:
- 3D Rendering URL - G_KT01_XX_00573V.pdf(3D Rendering URL)
- Catalog URL - Siemens_6EP1321_5BA00_Catalog.pdf(Catalog URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=6EP1437-2BA20&language=en(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=6EP1437-2BA20&language=en(Spec Sheet URL)
- Tech Drawing URL - 10991_FWMV7RBLE28YP5U0.jpg(Tech Drawing URL)

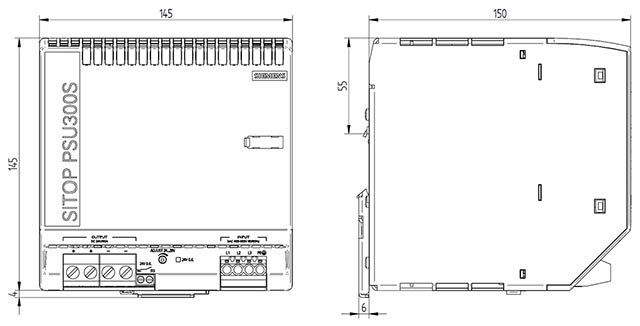

- Tech Drawing URL - ID-DRW-v1-G_KT01_XX_00571J.jpg(Tech Drawing URL)
- User Manual URL - man(User Manual URL)
- Video - http://www.automation.siemens.com/bilddb/download.aspx?reqInsID=748616(Video)
- Features
| The SITOP smart 3-phase power supplies are the universal high-performance standard power supplies for machine and plant construction. Despite their compact design, they offer excellent overload response: Thanks to 150% extra power, loads with high power |
| 1-phase and 3-phase standard applications up to 40 A |
| Compact design, no lateral clearances required |
| Extra power with 1.5 times the rated current (5 s/min) for brief operational overloads |
| Permanent overload capability with 1.2 times the rated current up to 45 deg C ambient temperature |
| Adjustable output voltage for compensating voltage drops |
| Parallel switching option to increase performance |
| High degree of efficiency up to 91.5% |
| 2 A at 400 VAC, 1.7 A at 500 VAC input, 40 A output |
