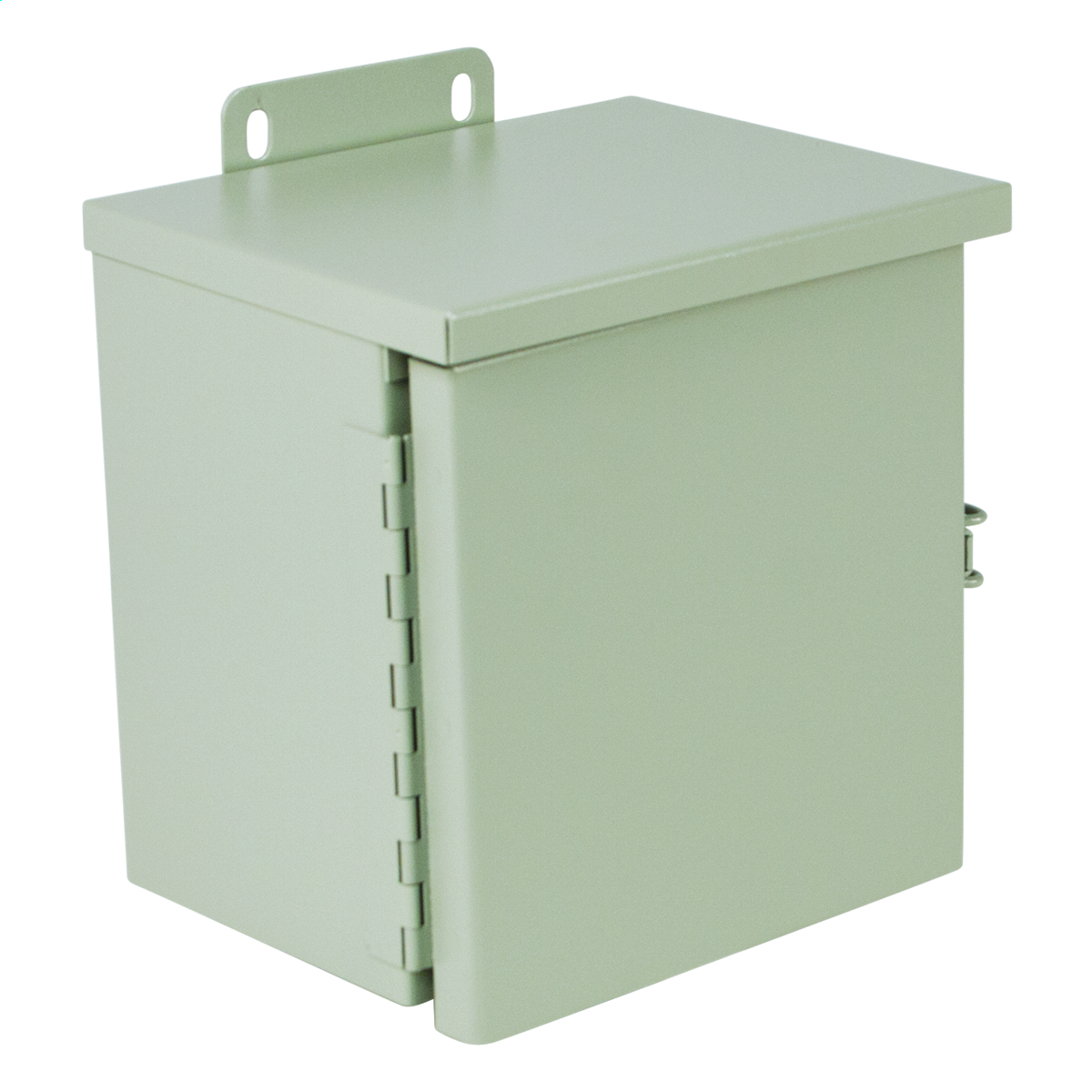

Wiegmann® RHC161606 RHC,LARGE,NEMA3R,CS,1
Wall Mount Enclosures
865662
MFG #: RHC161606
Wiegmann®
490.70000
/ ea
- Application: Designed for use as wiring boxes and junction boxes. Provides protection in outdoor installations against rain, sleet, and snow, or indoors against dripping water.
- ARRA Compliant: C
- Buy American Compliant: C
- Capacity: 1536 in³
- Catalog Number: RHC161606
- Color: Gray
- Construction: Seam and Tack Welded
- Country of Origin: US
- Cover Type: Hinged
- Cubic Capacity: 1536 cu. in. in³
- Currency: USD
- EU RoHS Indicator: Y
- Finish: Smooth
- Gross Volume Per Pack: 1536.00
- Gross Volume per Pack Metric: 25170.43
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 30.0000 lb
- Gross Weight per Pack Metric: 13.61
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 7326908688
- Height [Metric]: 40.6400 cm
- Length [Metric]: 15.2400 cm
- Lock: Padlock
- Mounting: External mounting plates
- Mounting Type: Wall
- Panel Size: 13 x 13 in
- Returnable: Y
- Series: RHC
- Size: 16" H x 16" W x 6" D
- Standard: UL, CSA
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL 508 File No. E6924CSA File No. LL66078PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Type: Medium Rainproof
- UNSPSC: 39121324
- UPC 11: 78672540655
- UPC 12: 786725406555
- Width [Metric]: 40.6400 cm
- Stock Status: NONSTOCK
- Brand: Wiegmann®
- Manufacturer: Wiegmann
- Depth: 6 in
- Height: 16.00 in
- Length: 6.00 in
- Material: Carbon Steel
- NEMA Rating: NEMA 1/3R
- Width: 16.00 in
RHC,LARGE,NEMA3R,CS,16X16X6
- Catalog URL - Wiegmann_RHC060604_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiegmann.com/(Seller Home Page URL)
- Line Drawing URL - 11030_GPXCYNQKV5E726OF.pdf(Line Drawing URL)
- Safety Data Sheet URL - HCC_SDS.pdf(Safety Data Sheet URL)
- Spec Sheet URL - 11030_SXTLYUNEIV264970.pdf(Spec Sheet URL)
- Tech Drawing URL - HWDRHC161606-S.dwg(Tech Drawing URL)
- Warranty URL - PRO-003_TERMS.pdf(Warranty URL)
- Warranty URL - Wiegmann_Warranty_Price_Sheet_3-8-2012.pdf(Warranty URL)
- Applications
- Features
| Designed for use as wiring boxes and junction boxes. Provides protection in outdoor installations against rain, sleet, and snow, or indoors against dripping water. |
| Bodies and doors fabricated from 14 gauge carbon steel. Continuous hinge. Hinge is made of galvanized steel with a stainless steel pin. No knockouts. Collar studs provided for mounting optional back panels. External mounting plates, top and bottom of enclosure. Hasp and staple provided for padlocking. Grounding provisions provided. |
| Bodies and doors fabricated from 14 ga carbon steel |
| Continuous hinged doors |
| Hinge is made of galvanized steel with a stainless steel pin |
| Without knockouts |
| Collar studs provided for mounting optional back panels |
| External mounting plates, top and bottom of enclosure |
| Hasp and staple is provided for padlocking |
| ANSI-61 gray polyester powder inside and out finish |
| 16 in H |
| Seam and tack welded construction |
