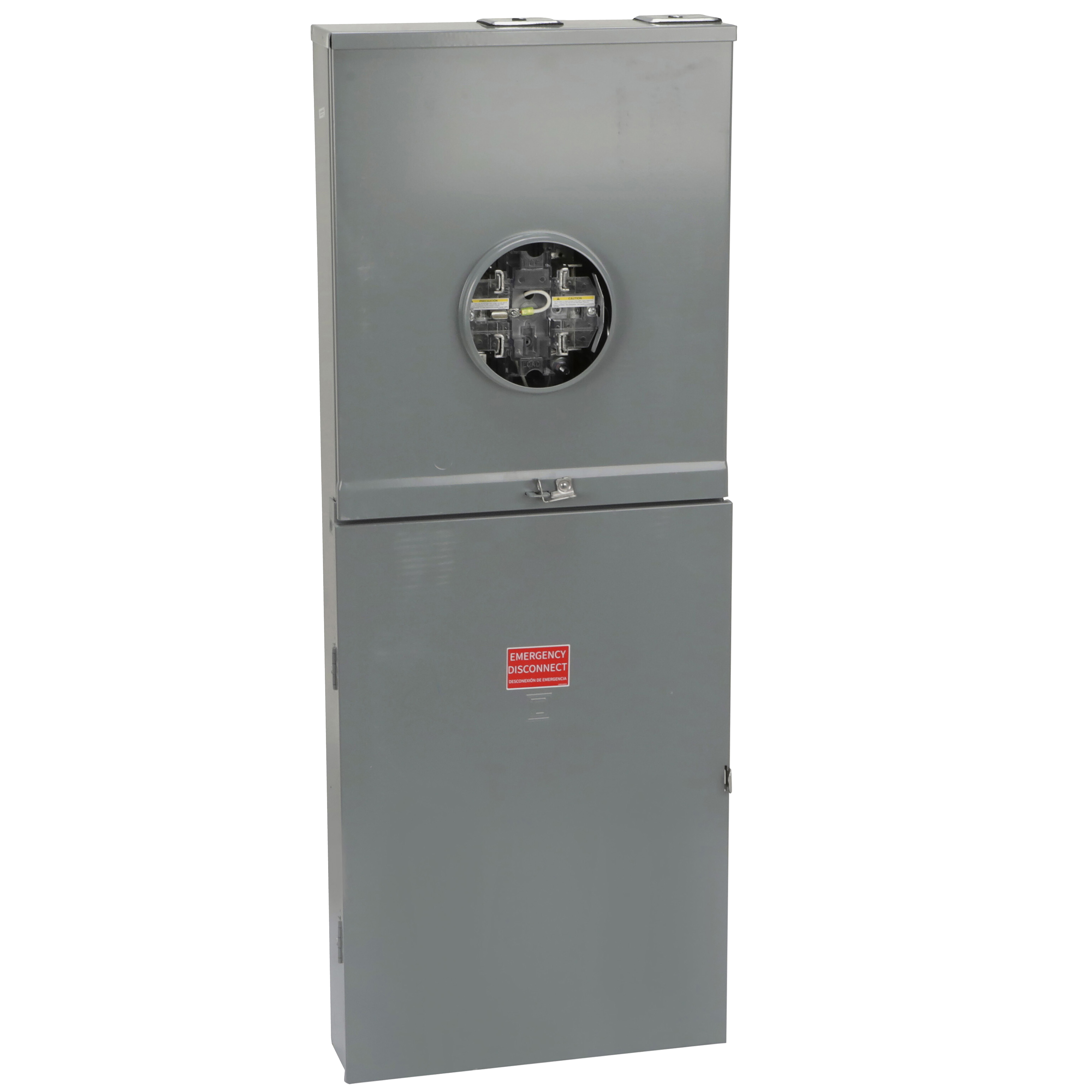

Square D™ HomeLine™ RC3040M200SLS 30-Circuit 40-Space All-In-One Field Installed Rainproof Combination Service Entrance Meter Main With Class 320 Lever Bypass, 200 A
Meter Socket Meter Main Combinations
PDW~10430888
MFG #: RC3040M200SLS
Square D™
5292.00000
/ ea
- Alternate Catalog Number: RC3040M200SLS
- Application: For residential, solar ready and load wires to exit top endwall with addition of tunnel kit OHBL applications
- ARRA Compliant: N
- Buy American Compliant: N
- Bypass Type: Lever bypass
- Catalog Number: RC3040M200SLS
- Country of Origin: UKN
- Currency: USD
- EU RoHS Indicator: Y
- Gross Volume Per Pack: 7038.51
- Gross Volume per Pack Metric: 115340.13
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 75.9900 lb
- Gross Weight per Pack Metric: 34.47
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8537109150
- Height: 7.4803 in
- Height [Metric]: 13.5000 cm
- Item Group: 00148
- Length: 49.6063 in
- Length [Metric]: 123.7000 cm
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=403075659&lang=en-us
- Mounting: Surface
- Returnable: N
- Substitute Product Catalog Number: WISEREM
- UNSPSC: 39121102
- UPC 11: 78590194644
- UPC 12: 785901946441
- Warranty Description: Contractual Warranty:18 months
- Width: 19.2913 in
- Width [Metric]: 46.7000 cm
- Brand: Square D™
- Manufacturer: Schneider Electric
Square D™ HomeLine™ Combination Service Entrance Meter Main, 30-Circuit 40-Space All-In-One Field Installed Rainproof, 200 A, Overhead/Underground Feed, 6 AWG to 350 kcmil, 8 to 2/0 AWG Aluminum/Copper Wire, A, 2-1/2 in Hub, Ringless Cover, Line/Service Ground Lug Terminal, Surface Mount, 48.62 in H x 18.35 in W x 5.32 in D
- 360 Degree View URL - 360(360 Degree View URL)
- Brochure URL - d9cf7e7fc0490198fb86429c42fc40f4b159a2e4.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=RC3040M200SLS.dxf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_02U39NTGVZK7LDEP.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_2ZWS18CFIM5YJ0Q7.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_9VEDAKQJUOCLW586.zip(Tech Drawing URL)
- Applications
- Features
| For residential, solar ready and load wires to exit top endwall with addition of tunnel kit OHBL applications |
| Multiple disconnect units can accommodate plug-on surge breaker™ secondary surge arrester |
| Multiple disconnect units can be converted to semi-flush with addition of flange kit |
| 6 AWG to 350 kcmil aluminum/copper line side, 8 to 2/0 AWG aluminum/copper service ground lug |
