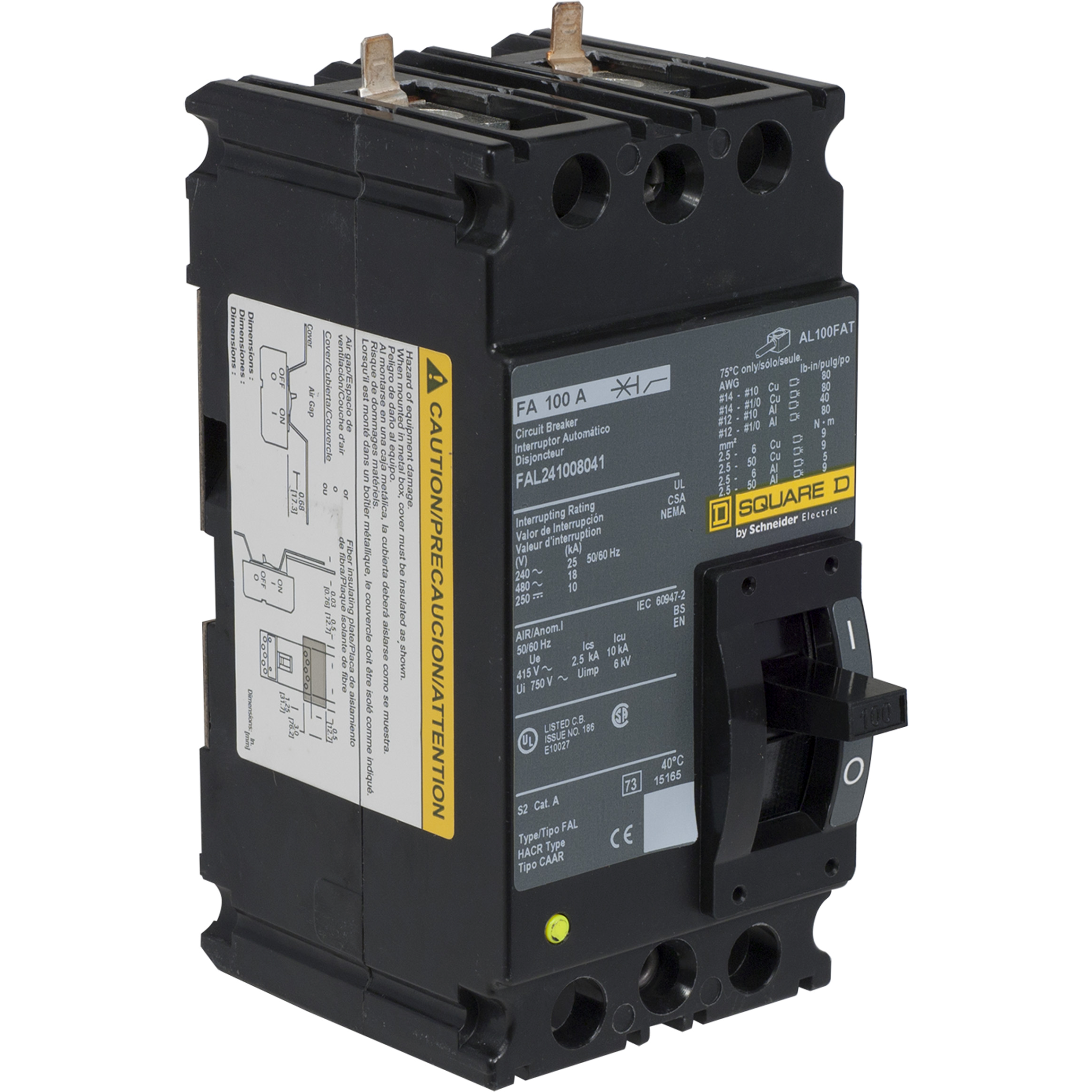

Square D™ I-Line™ FAL241008041 Type FA Molded Case Circuit Breaker, 480 VAC/250 VDC, 100 A, 2 Poles
Molded Case Circuit Breakers
634190
MFG #: FAL241008041
Square D™
2065.02000
/ ea
- Catalog Number: FAL241008041
- Connection: AWG 14...AWG 1/0 COPPER)1 -AWG 12...AWG 1/0 ALUMINIUM)1,LUGS LOAD-LUGS LINE
- Connection Type: Line/Load Lugs
- Country of Origin: MX
- Currency: USD
- Dimensions: 6.4 in H x 3 in W x 4.13 in D
- Enclosure Type: NEMA 1/3R/4/4X/5/7/9/12
- EU RoHS Indicator: Y
- Frame: F
- Frequency Rating: 50/60 Hz
- Gross Volume per Pack Metric: 12.19
- Gross Volume UOM: CI
- Gross Volume UOM Metric: kg
- Gross Weight Per Pack: 3.6100 lb
- Gross Weight per Pack Metric: 3.61
- Harmonization Tariff Schedule Code: 8536200020
- Height: 4.80 in
- Item Group: 00902
- Length: 9.80 in
- Mounting Type: Unit
- Returnable: N
- Standard: CSA-UL LISTED
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E10027CSA C22.2 No. 5-02 File No. LR7551Federal Specification W-C-375B/GENNEMA AB1IEC 60947-2HACR Ratedeccn: EAR99
- Temperature Rating: 50 °C
- Trip Range: 900 to 1700 A
- Type: Type FA
- UNSPSC: 39121616
- UPC 11: 78590163180
- UPC 12: 785901631804
- Warranty Description: cm
- Width: 6.30 in in
- Wire Size: 12 to 1/0 AWG Al/14 to 1/0 AWG Cu
- Stock Status: NONSTOCK
- Brand: Square D™
- Manufacturer: Schneider Electric
- Amperage Rating: 100 A
- Interrupt Rating: 25 kA at 240 VAC/18 kA at 480 VAC/10 kA at 415 VAC/10 kA at 250 VDC
- Trip Type: Thermal Magnetic
- Voltage Rating: 480 VAC/250 VDC
- Number Of Poles: 2
Square D FAL241008041 MOLDED CASE CIRCUIT BREAKER 480V 100A,100 A,2P,480 V AC,Circuit Breaker,F-Frame,Thermal Magnetic,UL Listed
- 16.0020(User Manual URL)
- Brochure URL - files?p_Doc_Ref=PIO00006555&p_File_Type=rendition_4000_png(Brochure URL)
- http://www.schneider-electric.us/(Seller Home Page URL)
- C(Warranty URL)
- cm(Installation Video URL)
- Catalog URL - Square_D_FAB36100_Catalog.pdf(Catalog URL)
- Video - 4927(Video)
- Tech Drawing URL - FA_FC_FH_2P_100A_OUTLINE_001(Tech Drawing URL)
- Install Instructions URL - Square_D_FA12020A_Instruction_Sheet.pdf(Install Instructions URL)
- Safety Data Sheet URL - us(Safety Data Sheet URL)
- Spec Sheet 1 URL - Square_D_FA12020A_Datasheet_1.pdf(Spec Sheet 1 URL)
- Features
| UNIT MOUNT |
| 100 A frame size |
| Lugs on both ends |
| 18 kA at 480 VAC, 25 kA at 240 VAC, 10 kA at 250 VDC, 10 kA at 415 VAC interrupt rating |
