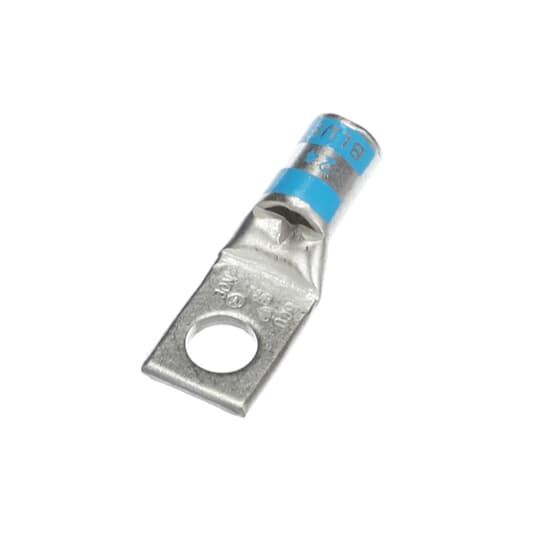

Color-Keyed® 54105 Thomas & Betts #6 CU STD. BRL. 1 HOLE 1/4 BOLT
Lugs
36102
MFG #: 54105
Color-Keyed®
515.18000
/ ea
- Alternate Catalog Number: 7TAH007100R0003
- ARRA Compliant: C
- Barrel Size: 0.31 in Dia
- Barrel Type: Standard
- Buy American Compliant: C
- Cable Size: 6 AWG
- Catalog Number: 54105
- Color: Blue
- Country of Origin: MX
- Currency: USD
- EU RoHS Indicator: C
- Gross Volume Per Pack: 0.01
- Gross Volume per Pack Metric: 0.00
- Gross Weight Per Pack: 0.0200 lb
- Gross Weight per Pack Metric: 0.01
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536904000
- Height: 2.30 in
- Height [Metric]: 5.8420 cm
- Insulation: None
- Item Group: 1L
- Item Group 2: 1LA
- Length: 3.30 in
- Length [Metric]: 8.3820 cm
- Mounting Hole Size: 0.281 in
- Number Of Holes: 1
- Overall Length: 1.23 in
- Returnable: A
- Series: 54100
- Standard: UL E9809
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E9809CSA Certified
- Sub Brand: Color Keyed
- Tongue Size: 0.53 in L x 0.44 in W x 0.07 in THK
- Tongue Type: Straight
- Type: 1-Hole
- UNSPSC: 39121405
- UPC 11: 78621054105
- UPC 12: 786210541051
- Voltage Rating: 35 kVA
- Width: 2.80 in
- Width [Metric]: 7.1120 cm
- Stock Status: NONSTOCK
- Brand: Color-Keyed®
- Manufacturer: Thomas & Betts
- Conductor Size: 6 AWG
- Conductor Type: Copper
- Die Code: 24
- Material: Copper
- Stud Size: 1/4 in
The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by Thomas & Betts. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.
- 360 Degree View URL - index.html?pid=12055&id=10767559360Den&ext=webp&rows=1&cols=48(360 Degree View URL)
- Compliance Cert URL - Color_Keyed_54105_RoHS_Sheet.pdf(Compliance Cert URL)
- Install Instructions URL - TA00675-TB2.pdf(Install Instructions URL)
- Install Instructions 1 URL - 12055_BPO5RJZUMXY61K9S.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - TA00675-TB2.pdf(Install Instructions 1 URL)
- http://www.TNB.com(Seller Home Page URL)
- Spec Sheet URL - TDS000649.pdf(Spec Sheet URL)
- Spec Sheet URL - 007_CAT3_F10-12.pdf(Spec Sheet URL)
- Spec Sheet URL - 12055_GJPIMLEKQ5WVZ749.pdf(Spec Sheet URL)
- Tech Drawing URL - WSD-001946.pdf(Tech Drawing URL)
- Line Drawing URL - 54101_ca2ld_1(Line Drawing URL)
- ROHS Compliance URL - Color_Keyed_54105_RoHS_Sheet.pdf(ROHS Compliance URL)
- Features
| Peep hole |
| High conductivity wrought copper construction |
| Tin plated finish |
