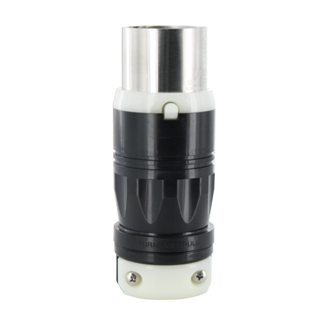

Leviton® 7765C Grounding Locking Plug, 600 VAC/250 VDC, 50 A, 3 Poles, 4 Wires, Black/White

Locking Plugs
72946 MFG #: 7765C
Leviton®
72.92000 / ea
10962_60JRUP73LECG1S9Y
  • Application: Industrial
  • ARRA Compliant: C
  • Buy American Compliant: C
  • Catalog Number: 7765C
  • Conductor Range: 10-4 AWG
  • Cord Diameter: 0.68 to 1.125 in
  • Country of Origin: MX
  • Currency: USD
  • Dimensions: 2.59 in Dia x 6.74 in L
  • Environmental Conditions: Flammability (Rated V-0 Per UL94HB)
  • EU RoHS Indicator: C
  • Grade: Industrial
  • Gross Weight Per Pack: 1.0500 lb
  • Gross Weight per Pack Metric: 0.48
  • Gross Weight UOM Metric: kg
  • Height: 7.7500 in
  • Height [Metric]: 6.9850 cm
  • Length: 14.7500 in
  • Length [Metric]: 18.0975 cm
  • Material: Nylon
  • NEMA Rating: Non-NEMA
  • Number Of Poles: 3
  • Standard: NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Listed 498 (File E13399);RoHS Compliant
  • Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantNOM 057CSA C22.2 No. 42 File No. 152105UL 498 File No. E13399UL94 V-0 Flammability Rating
  • Sub Brand: Black and White
  • Temperature Rating: -40 to 75 °C
  • Terminal Type: Screw
  • Type: Locking Plug
  • UNSPSC: 39121413
  • UPC 11: 07847780442
  • UPC 12: 078477804421
  • Width: 2.75 in
  • Width [Metric]: 6.9850 cm
  • Stock Status: NONSTOCK
  • Brand: Leviton®
  • Manufacturer: Leviton Manufacturing Co., Inc.
  • Amperage Rating: 50 A
  • Color: Black/White
  • Number of Wires: 4
  • Voltage Rating: 600//250 VAC//VDC
Leviton's Black and White 50 Amp, Non-NEMA line of industrial grade locking blade devices feature rugged construction that resists impact, sunlight, chemicals and rough use. All contacts and blades are solid one-piece construction for superior conductivity. Corrosion resistant versions feature nickel plated contacts and blades, plus stainless steel shrouds and screws. The ergonomic, fluted-body design with radial gripping edge is ideal for gripping and pulling. The unique cord clamp accepts a wide range of cord sizes, providing a secure grip without damaging the cord. And, they are backed by a limited lifetime warranty.
