500 CU STD. BRL. 1 HOLE 1/2 IN BOLT
Lug Compression Connectors
101554
MFG #: 54118
Color-Keyed®
3753.82000
/ ea
- Alternate Catalog Number: 7TAH007100R0015
- ARRA Compliant: C
- Buy American Compliant: C
- Cable Size: 500 kcmil
- Catalog Number: 54118
- Color: Brown
- Country of Origin: MX
- Currency: USD
- EU RoHS Indicator: C
- Gross Volume Per Pack: 0.03
- Gross Volume per Pack Metric: 0.00
- Gross Weight Per Pack: 0.3800 lb
- Gross Weight per Pack Metric: 0.17
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536904000
- Height: 3.00 in
- Height [Metric]: 7.6200 cm
- Insulation: None
- Item Group: 1L
- Item Group 2: 1LQ
- Length: 4.00 in
- Length [Metric]: 10.1600 cm
- Number Of Holes: 1
- Returnable: A
- Standard: UL E9809
- Standards: UL Listed, CSA Certified, RoHS Compliant
- Sub Brand: Color Keyed
- Type: Standard Barrel
- UNSPSC: 39121405
- UPC 11: 78621054118
- UPC 12: 786210541181
- Voltage Rating: 35,000 V
- Width: 4.00 in
- Width [Metric]: 10.1600 cm
- Stock Status: NONSTOCK
- Brand: Color-Keyed®
- Manufacturer: Thomas & Betts
- Material: Copper
- Stud Size: 0.5 in
The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by Thomas & Betts. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.
- 360 Degree View URL - index.html?pid=12055&id=10760021360Den&ext=webp&rows=1&cols=48(360 Degree View URL)
- http://www.TNB.com(Seller Home Page URL)
- Install Instructions 1 URL - 12055_SLEX803IRD2KUFB1.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - TA00884-TB2.pdf(Install Instructions 1 URL)
- Install Instructions URL - TA00884-TB2.pdf(Install Instructions URL)

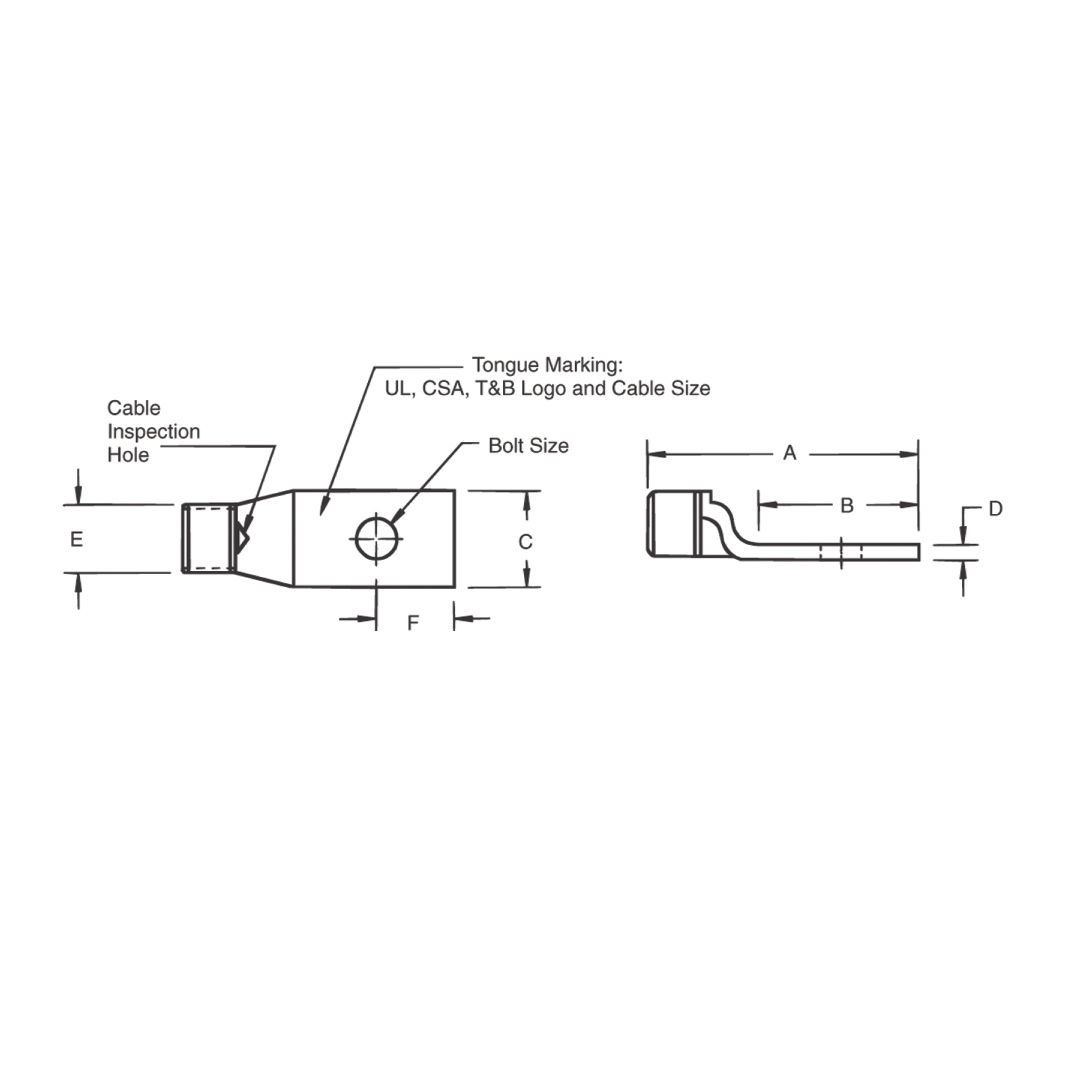

- Line Drawing URL - 58177_ca2ld_1(Line Drawing URL)
