4/0 3/8 AL/CU ONE HOLE LUG
Lug Compression Connectors
392357
MFG #: 60148
Color-Keyed®
4175.13000
/ ea
- Alternate Catalog Number: 7TAH007610R0037
- ARRA Compliant: C
- Buy American Compliant: C
- Cable Size: 4/0 AWG
- Catalog Number: 60148
- Color: White
- Country of Origin: MX
- Currency: USD
- EU RoHS Indicator: C
- Gross Volume Per Pack: 0.04
- Gross Volume per Pack Metric: 0.00
- Gross Weight Per Pack: 0.1200 lb
- Gross Weight per Pack Metric: 0.06
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536904000
- Height: 3.31 in
- Height [Metric]: 8.4074 cm
- Insulation: None
- Item Group: 1K
- Item Group 2: 1KF
- Length: 4.25 in
- Length [Metric]: 10.7950 cm
- Number Of Holes: 1
- Returnable: A
- Standard: UL E9809
- Standards: UL File No. E9809, CSA Certified, RoHS Compliant
- Sub Brand: Color Keyed
- Type: Long Barrel
- UNSPSC: 39121405
- UPC 11: 78621060148
- UPC 12: 786210601489
- Voltage Rating: 35,000 V
- Width: 4.25 in
- Width [Metric]: 10.7950 cm
- Stock Status: NONSTOCK
- Brand: Color-Keyed®
- Manufacturer: Thomas & Betts
- Material: Aluminum
- Stud Size: 0.375 in
The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by Thomas & Betts. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.
- 360 Degree View URL - spin?id=-MrNjMGOeguCXYqMqjXr&dirName=Spin(360 Degree View URL)
- http://www.TNB.com(Seller Home Page URL)
- Install Instructions 1 URL - 12055_WFHENBDGOAT256CL.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - TA00880-TB2.pdf(Install Instructions 1 URL)
- Install Instructions URL - TA00880-TB2.pdf(Install Instructions URL)

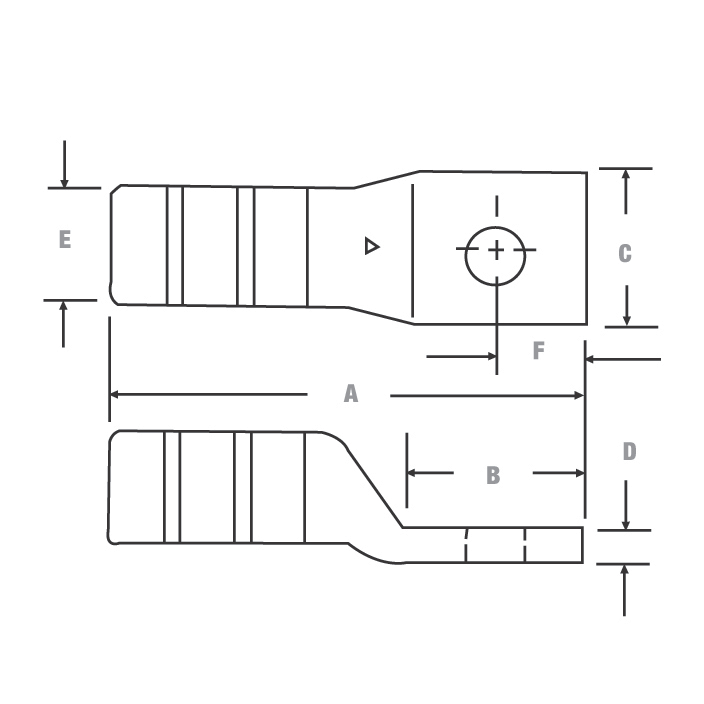

- Line Drawing URL - 60096_ca2ld_1(Line Drawing URL)
- ROHS Compliance URL - Color_Keyed_60148_RoHS_Sheet.pdf(ROHS Compliance URL)
- Safety Data Sheet URL - SDS-00012-TB2.pdf(Safety Data Sheet URL)
- Spec Sheet URL - 007_CAT3_F65.pdf(Spec Sheet URL)
- Spec Sheet URL - 12055_5PV14OEFN7IWZHGR.pdf(Spec Sheet URL)
