T&B® STEX100 Industrial Fitting STAR TECK EXTREME™Cable Connector, 1 in Trade, 0.86 to 1.205 in Cable Openings
Armored/Metal Clad Cable Connectors
524218
MFG #: STEX100
T&B® (Thomas & Betts)
27688.01000
/ ea
- Alternate Catalog Number: 7TBA051370R0001
- Application: For hazardous locations
- ARRA Compliant: C
- Buy American Compliant: C
- Cable Type: JMC/TECK
- Catalog Number: STEX100
- Color: Red/Silver
- Connection Type: NPT
- Country of Origin: CA
- Currency: USD
- Dimensions: 2.3 in Dia x 3.58 in L
- EU RoHS Indicator: C
- Gross Weight Per Pack: 0.5900 lb
- Gross Weight per Pack Metric: 0.27
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8547900010
- Height: 0.01 in
- Height [Metric]: 0.0254 cm
- Item Group: 2J
- Item Group 2: 2JU
- Length: 0.01 in
- Length [Metric]: 0.0254 cm
- Returnable: A
- Series: STEX
- Size: 1 Inch
- Standard: UL E82038, CSA 23086
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E38947CSA 23086CSA 4484UL File No. E82038
- Sub Brand: Star Teck
- Type: Teck Cable Fittings
- UNSPSC: 39121311
- UPC 11: 78621095252
- UPC 12: 786210952529
- Width: 0.01 in
- Width [Metric]: 0.0254 cm
- Stock Status: NONSTOCK
- Brand: T&B® (Thomas & Betts)
- Manufacturer: Thomas & Betts
- Cable Openings: 0.86 to 1.205 in
- Material: Aluminum
- Trade Size: 1 in
STAR TECK EXTREME™ fittings are designed to accommodate a broad range of cables. Each hub range overlaps the adjacent hub range, thereby minimizing the possibility of mismatched cables and fittings in the field. They are available in hub sizes from 1/2 to 4 in and will handle outer jacket diameters form 0.525 to 4.340 in.
- Catalog URL - T&B_Fittings_STED075_Catalog_1.pdf(Catalog URL)
- Compliance Cert URL - T&B_STEX100_RoHS_Sheet.pdf(Compliance Cert URL)
- http://www.TNB.com(Seller Home Page URL)
- Install Instructions 1 URL - 12055_H5XYKSMF6A0CPU8B.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - TA01870-TB2.pdf(Install Instructions 1 URL)
- Install Instructions URL - TA01870-TB2.pdf(Install Instructions URL)

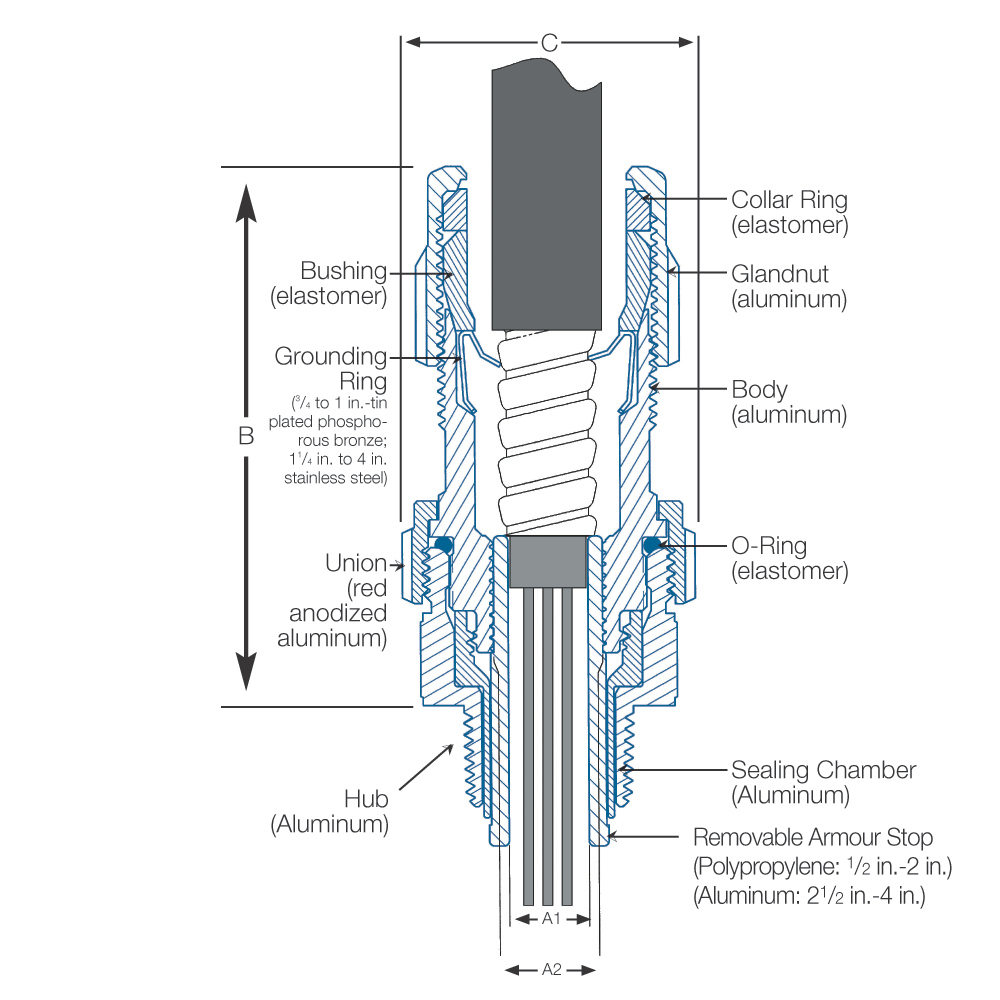

- Line Drawing URL - stex_ca2ld_en(Line Drawing URL)
- ROHS Compliance URL - T&B_STEX100_Specification_Sheet.pdf(ROHS Compliance URL)
- Spec Sheet 1 URL - T&B_STEX100_Specification_Sheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 051_CAT2_E122-3.pdf(Spec Sheet URL)
- Tech Drawing 1 URL - IDW_DOCUMENT_1537663882787.pdf(Tech Drawing 1 URL)
- Video - https://www.youtube.com/embed/QdWn6jpB1fY(Video)
- Spec Sheet URL - 12055_24W0DBXFUVECHTLY.pdf(Spec Sheet URL)
- Tech Drawing URL - TDS000041.pdf(Tech Drawing URL)
- Video - https://youtube.com/embed/QdWn6jpB1fY(Video)
- Applications
| For Hazardous Locations |
