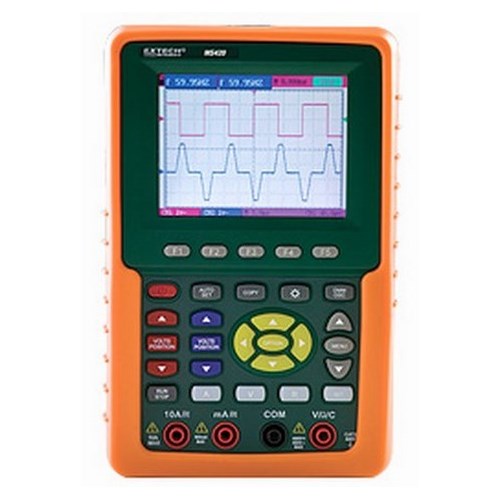

Extech® MS420 Dual-channel Oscilloscope with 3.8 (97mm) color LCD display"
Multimeters
PDW~12104299
MFG #: MS420
Extech®
949.00000
/ ea
- Bandwidth: 20 MHz
- Battery Life: 6 hr
- Battery Type: Rechargeable Lithium-Ion
- Catalog Number: MS420
- Country of Origin: CN
- Depth: 1.6 in
- Display Type: Color LCD
- Gross Weight Per Pack: 7.7000 lb
- Length: 7 in
- Resolution: 8 bit
- Safety Rating: CAT II 400V
- Sampling Rate: 100 MS/S
- Type: 2-Channel Handheld
- UNSPSC: 41113630
- UPC 11: 79395039420
- Width: 4.4 in
- Stock Status: NONSTOCK
- Brand: Extech®
- Manufacturer: FLIR Systems
Dual-channel Oscilloscope with 3.8" (97mm) color LCD display
- Features
| Auto-set function optimizes the position, range, time base and triggering to assure a stable display of waveforms |
| Peak detect function for 50 ns glitch capture |
| XY mode and FFT function to view component frequencies |
| Twenty automatic measurement including Frequency, cycle, average, peak to peak, RMS and more |
| Waveform math add, subtract, multiply and divide |
| Average mode for smoothing waveforms |
| Persistence mode for observing dynamic signals |
| Store and recall up to 4 waveform screens and setups |
| USB interface and software for transferring waveforms and data |
