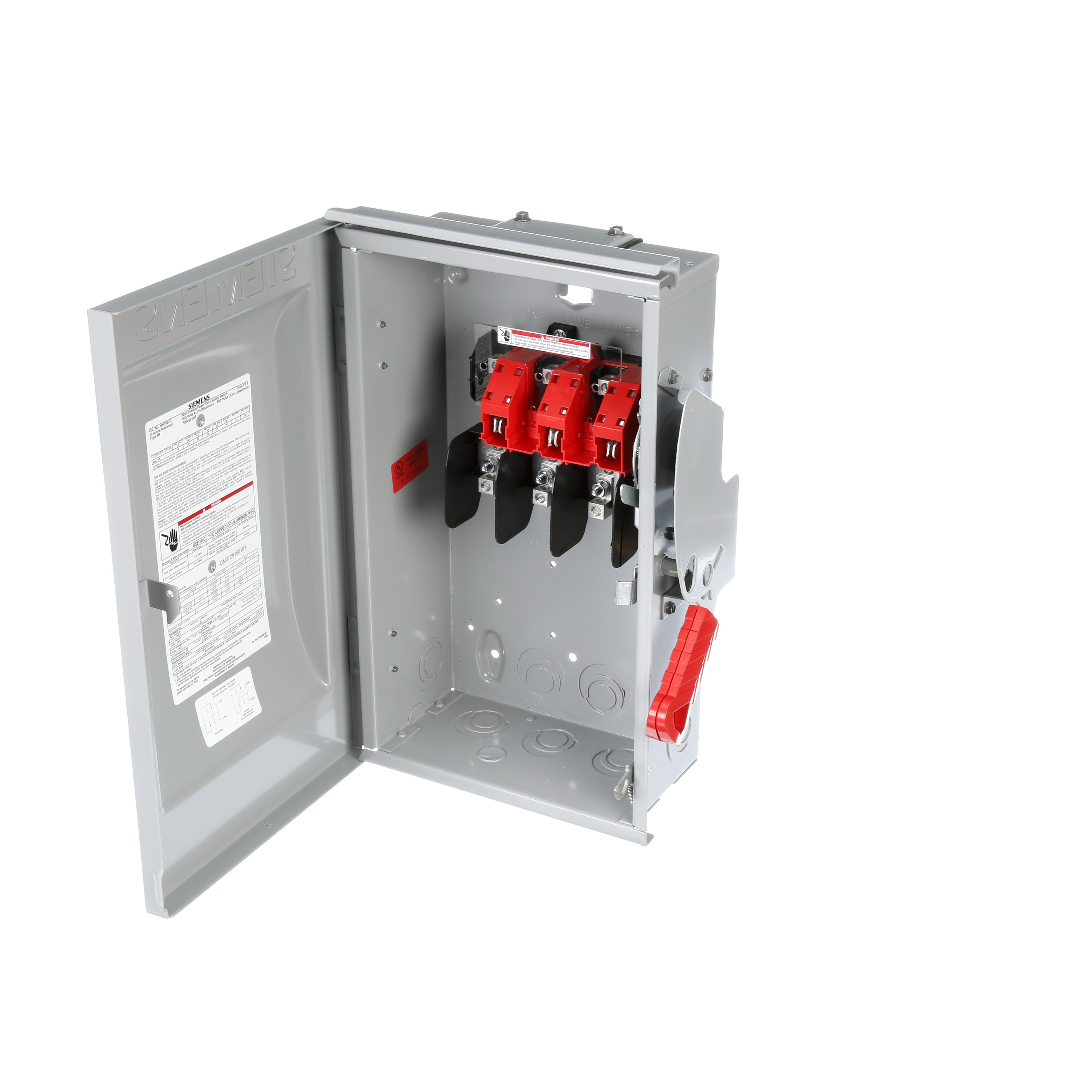

Siemens SpeedFax™ HNF362R Low Voltage Non-Fusible Heavy Duty Safety Switch, 600 VAC, 60 A, 60 hp, 3 Poles, TPST
Safety Switches & Disconnects
44674
MFG #: HNF362R
Siemens
387.74000
/ ea
- Actuator: SINGLETHROW
- Alternate Catalog Number: US2:HNF362R
- Application: DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: HNF362R
- Connection: MECHANICALLUGS
- Country of Origin: MX
- Currency: USD
- Enclosure: NEMA3R
- EU RoHS Indicator: C
- Frequency Rating: TRUE
- Gross Volume Per Pack: 2240.01
- Gross Volume UOM: in
- Gross Weight Per Pack: 18.0000 lb
- Gross Weight per Pack Metric: 8.16
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8537109170
- Height: 9.1400 in
- Height [Metric]: 23.2156 cm
- Length: 16.9300 in
- Length [Metric]: 43.0022 cm
- Material: Steel
- Mounting: Surface
- Number Of Poles: 3
- Operating Temperature: -29 °C
- Returnable: Y
- Standard: UL98
- Standards: ARRA, Buy American Act and RoHS Compliant, UL Listed
- Sub Brand: VBII
- Switch Type: SINGLETHROW
- Type: HEAVYDUTYSWITCH
- UNSPSC: 39122205
- UPC 11: 78364315174
- UPC 12: 783643151741
- Width: 10.4100 in
- Width [Metric]: 26.4414 cm
- Stock Status: NORMALLY STOCKED
- Brand: Siemens
- Manufacturer: Siemens
- Amperage Rating: 60 A
SIEMENS HNF362R 3P 600V 60A SFTY SW
- Application GDE URL - Siemens_HNF361_Application_Guide.pdf(Application GDE URL)
- Brochure URL - VBIISe%20Appl%20Guide%20F06_updated.pdf(Brochure URL)
- Catalog URL - Siemens_HF324SS_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - SIE_DW_HNF362R.pdf(Computer~Aided [CAD|BIM] Model URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Owners Manual URL - SIE_IM_SwitchMaintenance.pdf(Owners Manual URL)
- Spec Sheet 1 URL - ID-SPE-v1-SF17-04-012.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 10991_P7EGDQJV5XCR0ML4.pdf(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=US2:HNF362R&language=en(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=US2:HNF362R&language=en(Spec Sheet URL)
- User Manual URL - man(User Manual URL)
- Applications
- Features
| DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS |
| Quick-make, quick-break operating mechanism that ensures positive operation |
| Visible blade, double break switching action |
| Arc chutes dissipate heat and prolong switch life |
| Highly visible red handle grip designed for hook stick operation |
| Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking |
| Center punch provided for field drilling to allow ON padlocking |
| Handle can be padlocked in the OFF position with up to three padlocks with 5/16 in hasps |
| Generous top, bottom and side gutters that meet or exceed NEC wire bending space requirements |
| Informative door labeling which includes replacement parts list |
| Tangential knockouts through 600 A for easy conduit lineup |
| Side hinged door that opens 180 deg for easier wiring |
| Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands |
| Spring reinforced fuse clips that assure reliable contact for cool operation |
| Door latch securely holds door closed and allows cover padlocking |
| Front removable mechanical lugs that are suitable for CU/AI 60 or 75 deg C conductors |
| Lugs are field convertible to copper body and to a wide variety of compression connectors |
| Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals |
| Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication |
| Drawn cover for increased rigidity and resistance to abuse |
| Top key hole and bottom mounting holes provide easy 2 or 3-point mounting |
