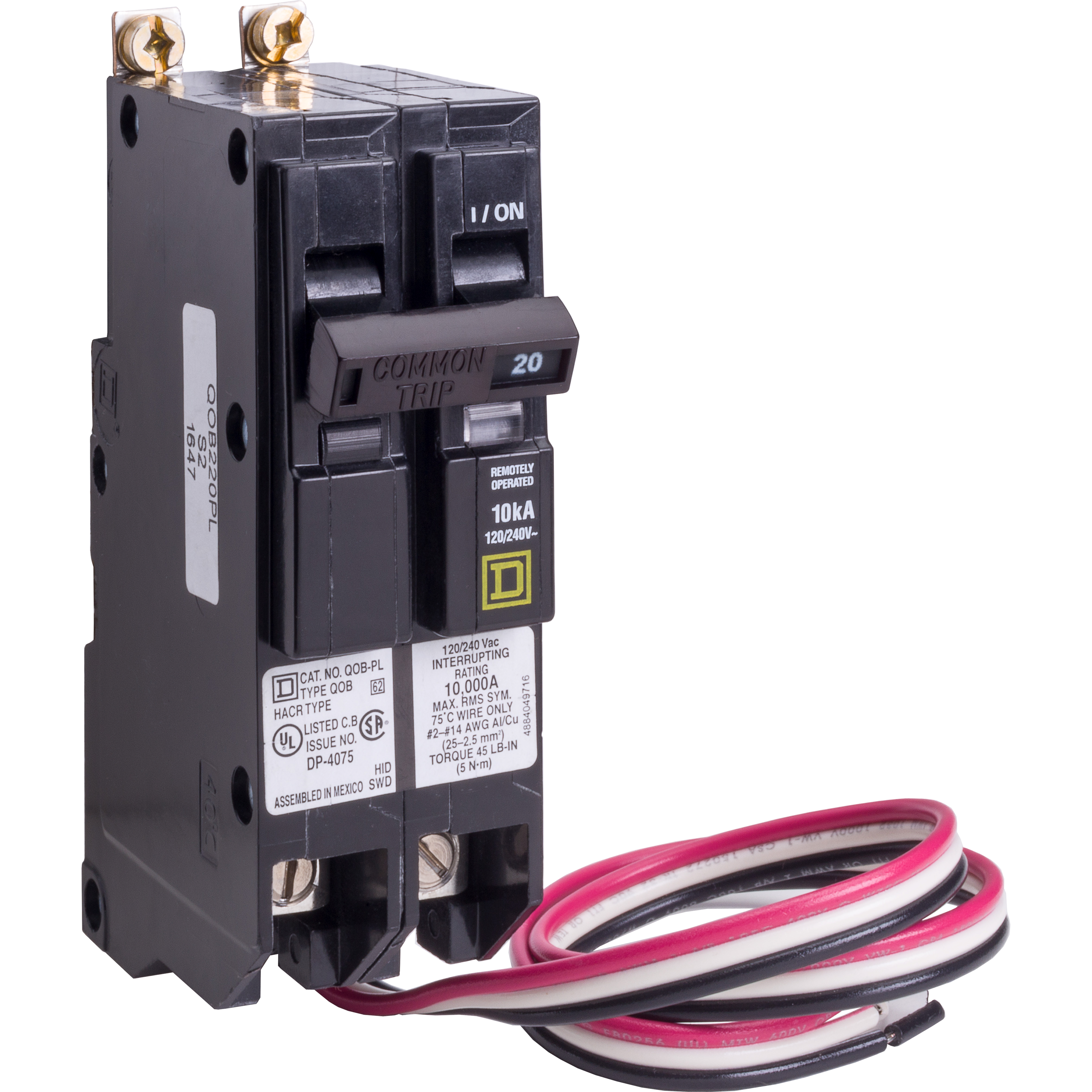

Square D™ QOB220PL Type QOB-PL Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA at 120/240 VAC Interrupt, 2 Poles
Circuit Breakers
272722
MFG #: QOB220PL
Square D™
549.89000
/ ea
- Application: HACR rated
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: QOB220PL
- Connection: AWG 12...AWG 2 ALUMINIUM-AWG 14...AWG 2 COPPER,BOX LUGS
- Connection Type: Box Lug
- Country of Origin: MX
- Dimensions: 4.55 in H x 1.5 in W x 2.91 in D
- EU RoHS Indicator: Y
- Frequency Rating: 50/60 Hz
- Gross Weight Per Pack: 0.8600 lb
- Harmonization Tariff Schedule Code: 8536200020
- Height: 4.55 in
- Item Group: 00912
- Length: 2.91 in
- Material: Fiberglass Filled Thermoset
- Mounting Type: Bolt-On
- Number Of Poles: 2
- Operating Temperature: 40 °C
- Phase: 1
- Returnable: Y
- Standard: UL LISTED-CSA
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov
- Sub Brand: QO
- Temperature Rating: 104 °F
- Type: Type QOB-PL
- UNSPSC: 39121603
- UPC 11: 78590109559
- UPC 12: 785901095590
- Width: 1.5 in
- Wire Size: 12 to 2 AWG Al, 14 to 2 AWG Cu
- Stock Status: NONSTOCK
- Brand: Square D™
- Manufacturer: Schneider Electric
- Amperage Rating: 20 A
- Interrupt Rating: 10 kA at 120/240 VAC
- Trip Type: Thermal Magnetic
- Voltage Rating: 120/240 VAC
Square D QOB220PL MINIATURE CIRCUIT BREAKER 120/240V 20A
- Applications
- Features
| HACR RATED |
| STANDARD |
| Designed for superior safety, quality and reliability |
| Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners |
| First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection |
| Saves space compact 3/4 in W design for small system footprint |
| Faster installation fewer connections |
| Frees gutter space no pigtails with the innovative plug-on neutral design |
| Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button |
| Remote control switching capability |
