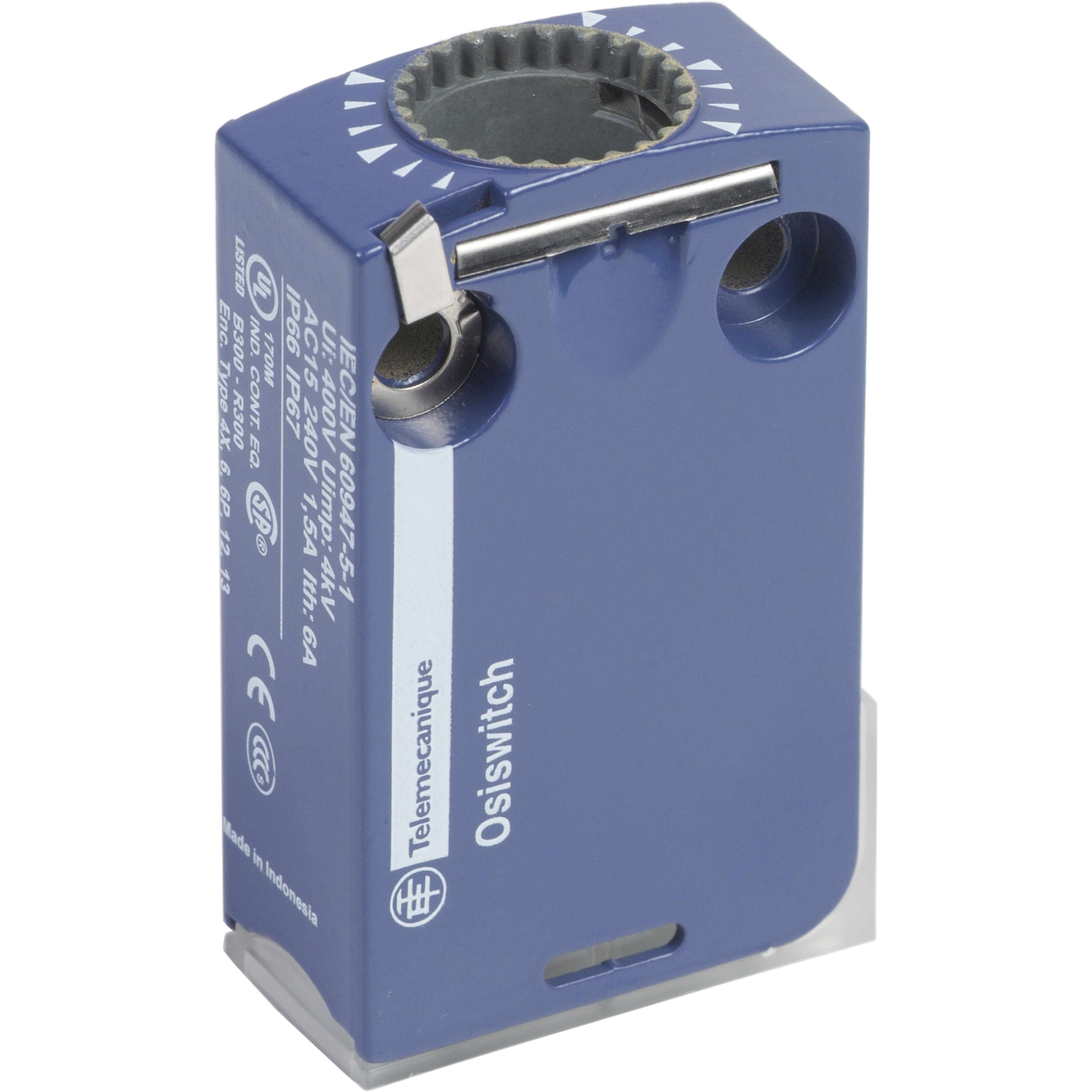

Telemecanique ZCMD21 OsiSense® Limit Switch Body, 1NO-1NC
Limit Switches
209394
MFG #: ZCMD21
Telemecanique Sensors
43.61000
/ ea
- Action: Snap action
- Alternate Catalog Number: ZCMD21
- Amperage Rating: 6 A
- Application: XCMD
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: ZCMD21
- Closed Contact Resistance: 25 MOHM IEC 60255-7 CATEGORY 3
- Connection: Plug-in without pre-cabled connection
- Connection Type: Plug-In
- Country of Origin: ID
- Currency: USD
- Dimensions: 1.97 in H x 1.18 in W x 0.63 in D
- EU RoHS Indicator: Y
- Gross Volume Per Pack: 1.82
- Gross Volume per Pack Metric: 29.82
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 0.1300 lb
- Gross Weight per Pack Metric: 57.15
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8536509055
- Height: 0.69 in
- Height [Metric]: 1.7780 cm
- Item Group: 22413
- Length: 1.98 in
- Length [Metric]: 5.0800 cm
- Material: Zamak
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=880292&lang=en-us
- Number Of Poles: 2
- Returnable: Y
- Series: ZCMD
- Size: 16 MM,30 MM,50-50 MM in
- Standard: IEC, UL LISTED, CSA
- Sub Brand: ZCMD
- Temperature Rating: -40 to 158 °F
- Type: 2-Pole
- UNSPSC: 39122213
- UPC 11: 78590166258
- UPC 12: 785901662587
- Warranty Description: Contractual Warranty:18 months
- Width: 1.29 in
- Width [Metric]: 3.3020 cm
- Stock Status: NORMALLY STOCKED
- Brand: Telemecanique Sensors
- Manufacturer: Telemecanique Sensors
- Contact Configuration: 1NO-1NC
- Contact Rating: 6 A
- Suitable For Use With: XCMD and ZCMD Series Standard Format Limit Switch
Telemecanique Sensors ZCMD21 LIMIT SWITCH 240VAC 5A METAL ZCMD,1 NC + 1 NO,6 A,IEC, UL listed, CSA,OsiSense,OsiSense XC,limit switch body,plug-in body,XCMD,ZCMD,ZCMD,standard format,plug-in body,plug-in body,without pre-cabled connection
- 360 Degree View URL - 360(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=ZCMD21(3D Rendering URL)
- Brochure URL - 5867f33f19390c8d01315fd43a21c939ad656ebf.pdf(Brochure URL)
- Catalog URL - Schneider_Electric_ZCKG00_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=MCADID0004815_2D-top.dwg(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_D5N2QEJXBU6STVCF.pdf(Service Manual URL)
- Service Manual URL - 11003_OHZV2JW69S4CGXK1.pdf(Service Manual URL)
- Spec Sheet URL - 11003_WXJ43NDSV1ECKFQB.pdf(Spec Sheet URL)
- Tech Drawing URL - bb1e5c3be69fac1b1c268a40960e124a05c5a663(Tech Drawing URL)
- Applications
- Features
| XCMD |
| PLUG-IN BODY |
| -40 to 158 deg F ambient air temperature for storage |
