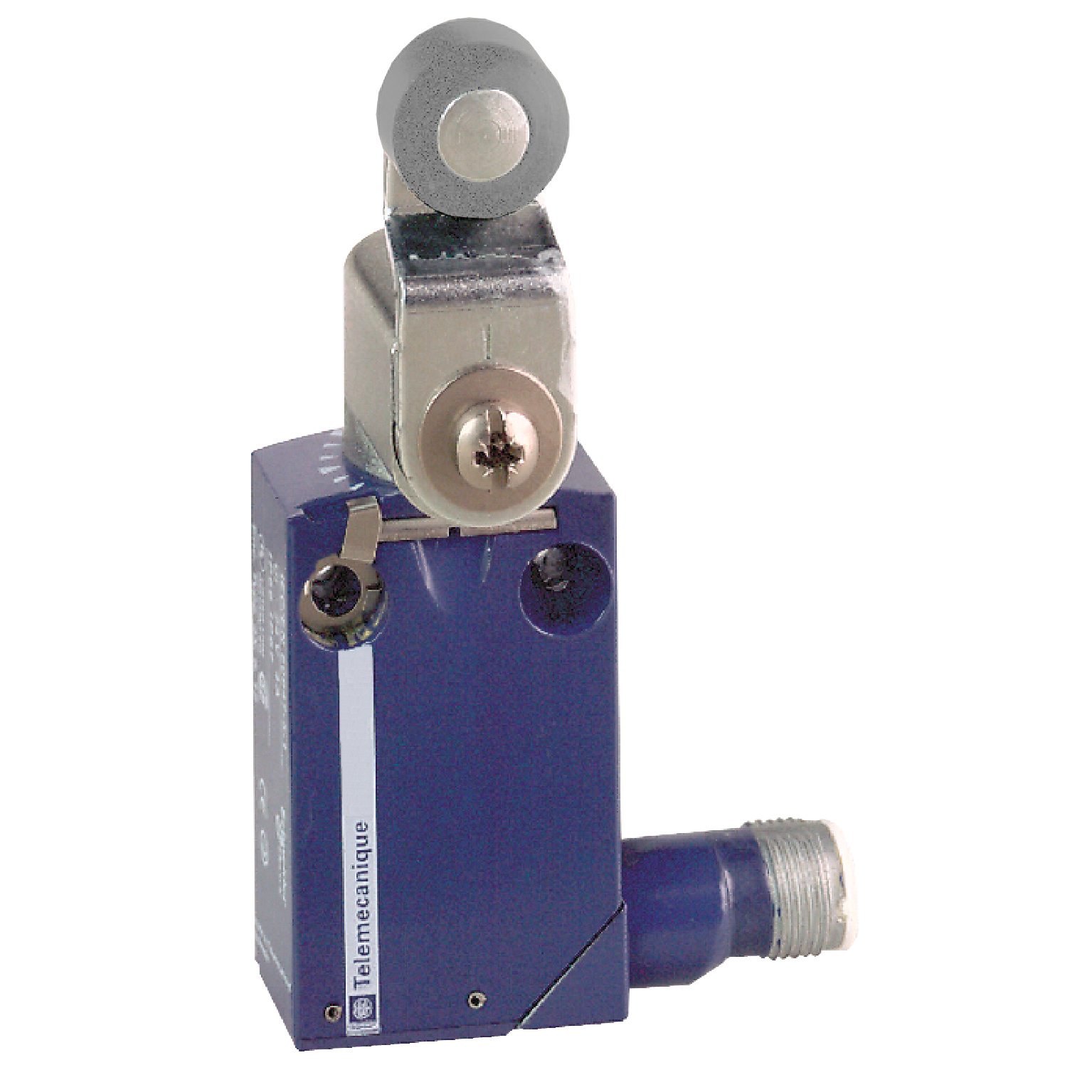

Telemecanique XCMD2116M12 LMT SWITCH 240VAC 1
Limit Switches
700001
MFG #: XCMD2116M12
Telemecanique Sensors
93.52000
/ ea
- Action: Lateral approach, 2 directions;Snap action;By 30° cam
- Alternate Catalog Number: XCMD2116M12
- Application: MINIATURE VARIABLE
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: XCMD2116M12
- Closed Contact Resistance: 25 MOHM IEC 60255-7 CATEGORY 3 MOhm
- Connection: Male connector M12, 4 pins
- Connection Type: 4-Pin M12 Male
- Contact Rating: 1.5 A at 240 VAC, 0.1 A at 250 VDC
- Country of Origin: ID
- Currency: USD
- Enclosure: NEMA 1/2/4X/6/6P/12/13 IP66/67/68
- Enclosure Type: NEMA 1/2/4X/6/6P/12/13/IP66/IP67/IP68
- Environmental Conditions: -40 to 158 deg F Storage Temperature
- EU RoHS Indicator: Y
- Gross Weight Per Pack: 291.0100 lb
- Gross Weight per Pack Metric: 132.00
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8536509055
- Height: 3.3000 in
- Height [Metric]: 3.3000 cm
- Item Group: 22413
- Length: 5.3000 in
- Length [Metric]: 5.3000 cm
- Material: Zamak
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=857726&lang=en-us
- Mounting: BY THE BODY
- Mounting Type: Plug-In
- Number Of Poles: 1
- Operating Cycles: 10000000 Cycles
- Operating Temperature: -25 to 70 °C
- Returnable: N
- Series: XCMD
- Size: 1.97 in H x 1.18 in W x 0.63 in D in
- Standard: 25 GN 18 MS IEC 60068-2-27,5 GN 10-500 HZ)IEC 60068-2-6,CCC-CSA-UL,IK06 EN 62262,IP66 IEC 60529-IP67 IEC 60529-IP68 IEC 60529,UL 508-EN/IEC 60204-1-CSA C22.2 NO 14-EN/IEC 60947-5-1,CLASS I IEC 61140-CLASS I NF C 20-030
- Sub Brand: XCMD
- Substitute Product Catalog Number: ZCE05
- Type: Heavy Duty Miniature Modular Standard
- UNSPSC: 39122213
- UPC 11: 78590191327
- UPC 12: 785901913276
- Warranty Description: Contractual Warranty:18 months
- Width: 9.5000 in
- Width [Metric]: 9.5000 cm
- Stock Status: NONSTOCK
- Brand: Telemecanique Sensors
- Manufacturer: Telemecanique Sensors
- Actuator: Spring return roller lever metal
- Amperage Rating: 3 A
- Contact Configuration: 1CO
- Voltage Rating: 240 VAC, 250 VDC VAC
Telemecanique Sensors XCMD2116M12 LMT SWITCH 240VAC 1.5A METAL XCMD,-25...70 deg.C,1 C/O,240VAC/250VDC,3 A,Lever Arm with Steel Roller (ZCKY16) CW and CCW,M12 Connector (4-Pin),NEMA 1/2/4X/6/6P/12/13 IP66/67/68,OsiSense,OsiSense XC,limit switch,plug-in body,rotary head,UL Listed - CSA Certified - CE Marked,XCMD,XCMD,rotary head,standard format,metal,plug-in body,miniature,plug-in body,rotary
- 360 Degree View URL - 360(360 Degree View URL)
- Brochure URL - 11003_327LTIKVBZQF6MYS.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Line Drawing URL(Line Drawing URL)
- ROHS Compliance URL - Schneider_Electric_XCMD2116M12_RoHS.pdf(ROHS Compliance URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_D5N2QEJXBU6STVCF.pdf(Service Manual URL)
- Service Manual URL - 11003_OHZV2JW69S4CGXK1.pdf(Service Manual URL)
- Spec Sheet URL - 11003_W2BJ1YI8G7R0OE9T.pdf(Spec Sheet URL)
- Tech Drawing URL - sales?sn=XCMD2116M12(Tech Drawing URL)
- Applications
- Features
| MINIATURE VARIABLE |
| METAL,PLUG-IN BODY |
| Positive opening on all snap and slow break contacts, for safer machinery |
| Modular design for easier maintenance |
| Miniature limit switch for making and breaking an electrical connection positive opening for safer machinery one normally open (NO) and one normally closed (NC) snap action silver contacts includes 4-pin M12 male connector |
