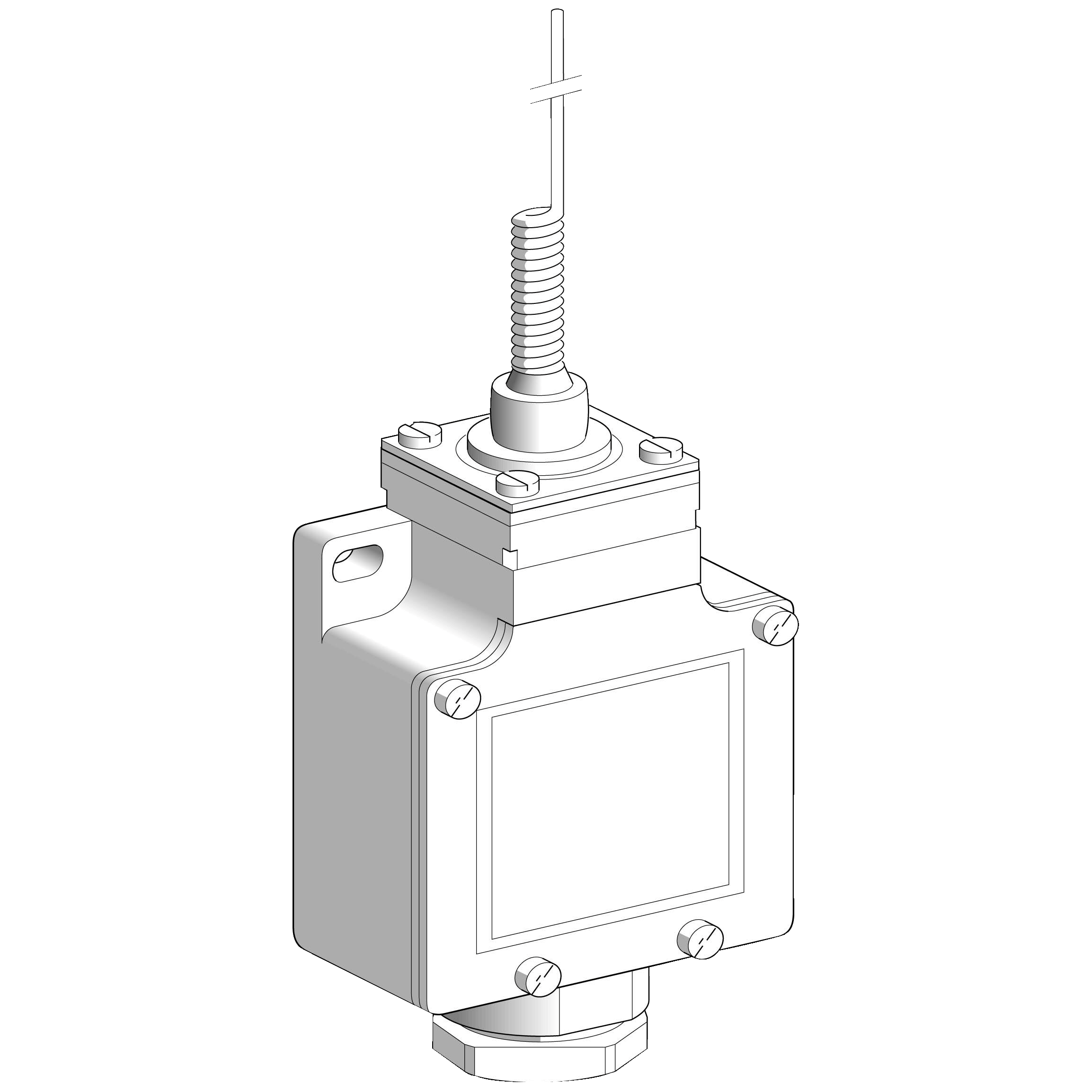

Telemecanique XCKL Miniature Limit Switch, 240 VAC/VDC, 10 A, Spring Return Cat's Whisker Actuator, 1NO-1NC, 2 Poles
Limit Switches
514388
MFG #: XCKL106H7
Telemecanique Sensors
199.35000
/ ea
- Action: Multi-directional approach;Snap action;By any moving part
- Alternate Catalog Number: XCKL106H7
- Application: CLASSIC
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: XCKL106H7
- Closed Contact Resistance: 25 MOHM IEC 60255-7 CATEGORY 3
- Connection: SCREW-CLAMP TERMINALS 1 X 0.34...2 X 1.5 MMA²
- Connection Type: Screw Clamp
- Country of Origin: FR
- Currency: USD
- Enclosure: NEMA 1/2/4/6/6P/12/13 IP66
- Enclosure Type: NEMA 1/2/4/6/6P/12/13/IP66
- Environmental Conditions: -40 to 70 deg C Storage Temperature
- EU RoHS Indicator: Y
- Gross Volume Per Pack: 27.95
- Gross Volume per Pack Metric: 458.02
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 0.5500 lb
- Gross Weight per Pack Metric: 248.00
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8536509055
- Height: 1.25 in
- Height [Metric]: 3.2000 cm
- Item Group: 22416
- Length: 2.42 in
- Length [Metric]: 6.2000 cm
- Material: Metal
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=856466&lang=en-us
- Mounting: By the body
- Operating Cycles: 10000000 Cycles
- Operating Temperature: -25 to 70 °C
- Returnable: Y
- Series: XCKL
- Size: 2.83 in H x 2.04 in W x 1.18 in D in
- Standard: 25 GN 10-500 HZ)EN/IEC 60068-2-6,50 GN 11 MS EN/IEC 60068-2-27,CSA C22.2 NO 14-EN 60204-1-IEC 60204-1-UL 508-IEC 60947-5-1-EN 60947-5-1,CSA-UL,IK05 EN 50102,IP66 EN/IEC 60529,CLASS I IEC 61140-CLASS I NF C 20-030
- Sub Brand: XCKL
- Substitute Product Catalog Number: DE9RA1012
- Type: Fixed Multi-Directional Standard Format
- UNSPSC: 39122213
- UPC 11: 78590145162
- UPC 12: 785901451624
- Warranty Description: Contractual Warranty:18 months
- Width: 8.42 in
- Width [Metric]: 21.6000 cm
- Stock Status: NORMALLY STOCKED
- Brand: Telemecanique Sensors
- Manufacturer: Telemecanique Sensors
- Actuator: SPRING RETURN CAT''S WHISKER
- Amperage Rating: 10 A
- Contact Configuration: 1NO-1NC
- Voltage Rating: 240 VAC/250 VDC VAC//VDC
- Number Of Poles: 2
Telemecanique Sensors XCKL106H7 LIMIT SWITCH 240VAC 10AMP XCKL +OPTIONS,-25...70 deg.C,1 NC + 1 NO,1 entry tapped for 1/2 NPT cable gland,fixed,10A,240VAC/250VDC,Cat Whisker (ZCKD06) Any Direction,Conduit Entrance (0.5 NPT) Screw Clamp,NEMA 1/2/4/6/6P/12/13 IP66,OsiSense,OsiSense XC,fixed,limit switch,multi-directional head,UL Listed - CSA Certified - CE Marked,XCKL,XCKL,multi-directional head,standard format,fixed,metal,multi-directional
- Brochure URL - 11003_1DI84TWO2Q7NUGRY.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Line Drawing URL(Line Drawing URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_C1AR4MPO7XNJ5DU0.pdf(Spec Sheet URL)
- Tech Drawing URL(Tech Drawing URL)
- Tech Drawing URL - 11003_GC2FEXK5D4Y8M1TW.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_POYB3V28ZDUJAC6W.pdf(Tech Drawing URL)
- Applications
- Features
| CLASSIC |
| FIXED,METAL |
| Fixed body type |
| Multi-directional head type |
| Zamak body material |
| By the body fixing mode |
| Multi-directional movement of operating head |
| Spring return cat's whisker type of operator |
| 1 entry tapped for 1/2 in NPT cable gland cable entry |
| By any moving part switch actuation |
| Without positive opening |
| 1.15 in-lb minimum torque for tripping |
| <= 25 MOhm conforming to IEC 602557 category 3 resistance across terminals |
| 6 kV conforming to IEC 60664, 6 kV conforming to IEC 609471 rated impulse withstand voltage |
| 50 gn (duration = 11 ms) conforming to IEC 60068227 shock resistance |
| 25 gn (10500 Hz) conforming to EN/IEC 6006826 vibration resistance |
| TC protective treatment |
| 1/2 in NPT conduit screw terminal |
| 1 entry tapped for 1/2 NPT cable gland |
