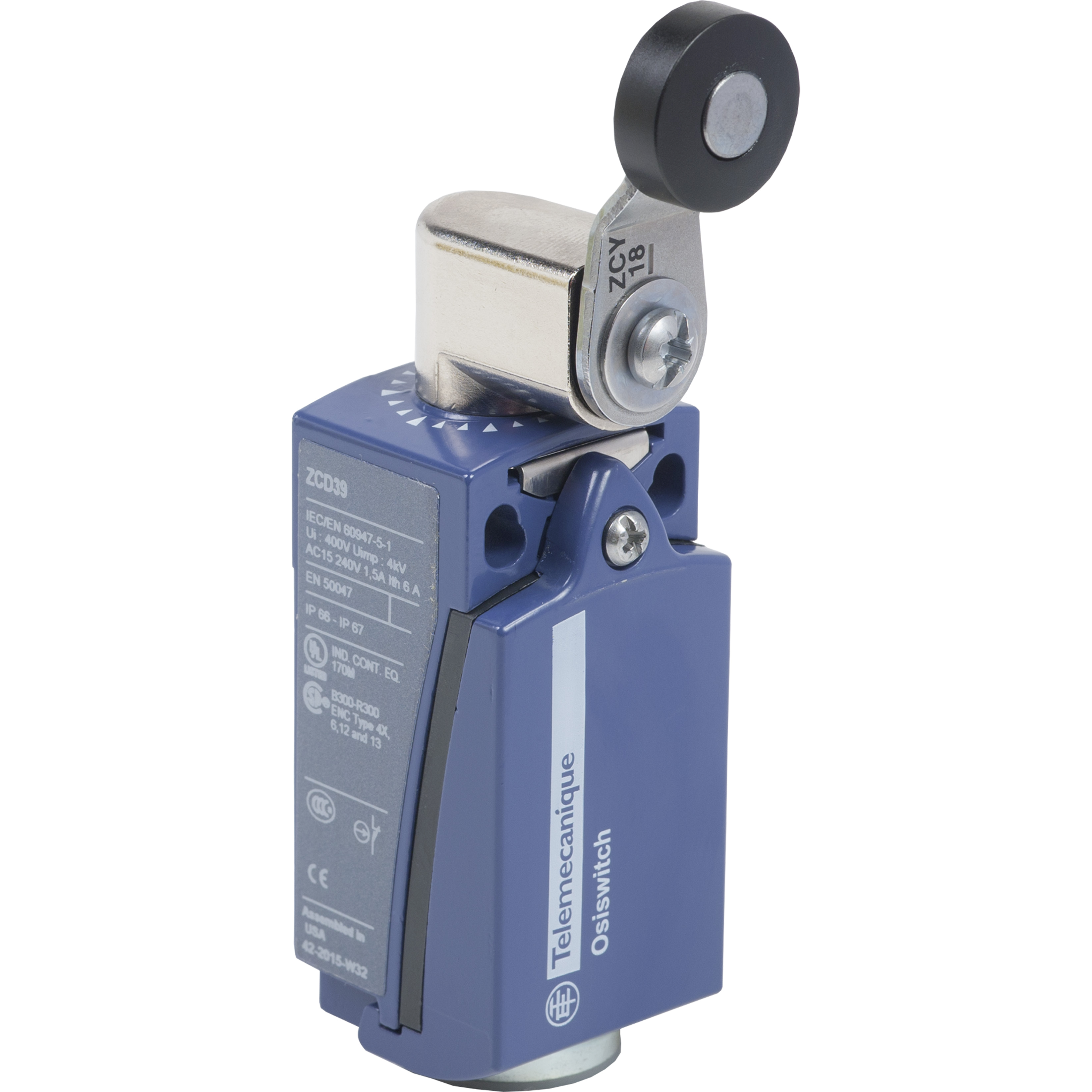

Telemecanique XCKD2118N12 LIMIT SWITCH 240VAC
Limit Switches
503839
MFG #: XCKD2118N12
Telemecanique Sensors
78.91000
/ ea
- Action: Lateral approach, 2 directions;Snap action;By 30° cam
- Alternate Catalog Number: XCKD2118N12
- Application: COMPACT VARIABLE
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: XCKD2118N12
- Closed Contact Resistance: 25 MOHM IEC 60255-7 CATEGORY 3 MOhm
- Connection: SCREW-CLAMP TERMINALS 1 X 0.34...2 X 1.5 MMA²
- Connection Type: 1/2 in NPT/Screw Clamp
- Contact Rating: 3 A at 240 VAC, 0.27 A at 250 VDC
- Country of Origin: FR
- Currency: USD
- Enclosure: NEMA 1/2/4/6/12/13 IP66/67
- Enclosure Type: NEMA 1/2/4/6/12/13/IP66/IP67
- Environmental Conditions: -40 to 158 deg F Storage Temperature
- EU RoHS Indicator: Y
- Gross Volume Per Pack: 19.18
- Gross Volume per Pack Metric: 314.30
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 0.5300 lb
- Gross Weight per Pack Metric: 239.00
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8536509055
- Height: 4.95 in
- Height [Metric]: 12.7000 cm
- Item Group: 22418
- Length: 1.83 in
- Length [Metric]: 4.7000 cm
- Material: Zamak
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=855940&lang=en-us
- Mounting: By the body
- Operating Cycles: 10000000 Cycles
- Operating Temperature: -25 to 70 °C
- Returnable: Y
- Series: XCKD
- Size: 65 mm L x 31 mm W x 30 mm D
- Standard: 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,IEC 60947-5-1-EN 60204-1-IEC 60204-1-UL 508-CSA C22.2 NO 14-EN 60947-5-1,IK06 EN 50102,UL-CCC-CSA,CLASS I IEC 61140-CLASS I NF C 20-030
- Sub Brand: XCKD
- Substitute Product Catalog Number: ZCE05
- Type: Compact Fixed Modular Standard
- UNSPSC: 39122213
- UPC 11: 78590130051
- UPC 12: 785901300519
- Warranty Description: Contractual Warranty:18 months
- Width: 1.25 in
- Width [Metric]: 3.2000 cm
- Stock Status: NORMALLY STOCKED
- Brand: Telemecanique Sensors
- Manufacturer: Telemecanique Sensors
- Actuator: SPRING RETURN ROLLER LEVER THERMOPLASTIC
- Amperage Rating: 10 A
- Contact Configuration: 1NO-1NC
- Voltage Rating: 240 VAC, 250 VDC VAC
- Number Of Poles: 2
Telemecanique Sensors XCKD2118N12 LIMIT SWITCH 240VAC 10A METAL XCKD,-25...70 deg.C,1 NC + 1 NO,1 entry tapped for 1/2 NPT cable gland,compact form A conforming to CENELEC EN 50047,fixed,10A,240VAC/250VDC,Conduit Entrance (0.5 NPT) Screw Clamp,Lever Arm with Thermoplastic Roller (ZCY18) CW and CCW,NEMA 1/2/4/6/12/13 IP66/67,OsiSense,OsiSense XC,fixed,limit switch,rotary head,UL Listed - CSA Certified - CE Marked,XCKD,XCKD,rotary head,standard format,fixed,metal,rotary
- Brochure URL - 11003_1DI84TWO2Q7NUGRY.pdf(Brochure URL)
- Catalog URL - Schneider_Electric_XCKD2118N12_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Line Drawing URL(Line Drawing URL)
- ROHS Compliance URL - Schneider_Electric_XCKD2118N12_RoHS.pdf(ROHS Compliance URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_T1VPWZ9XY5BRUO86.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_CT34FAPW6V1M0GLE.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_J19E2DYSWL58OB3T.pdf(Tech Drawing URL)
- Applications
- Features
| COMPACT VARIABLE |
| FIXED,METAL |
| Positive opening on all snap and slow break contacts, for safer machinery |
| Modular design for easier maintenance |
| For making and breaking an electrical connection electromechanical detection of presence/absence, passing, positioning and end of travel |
