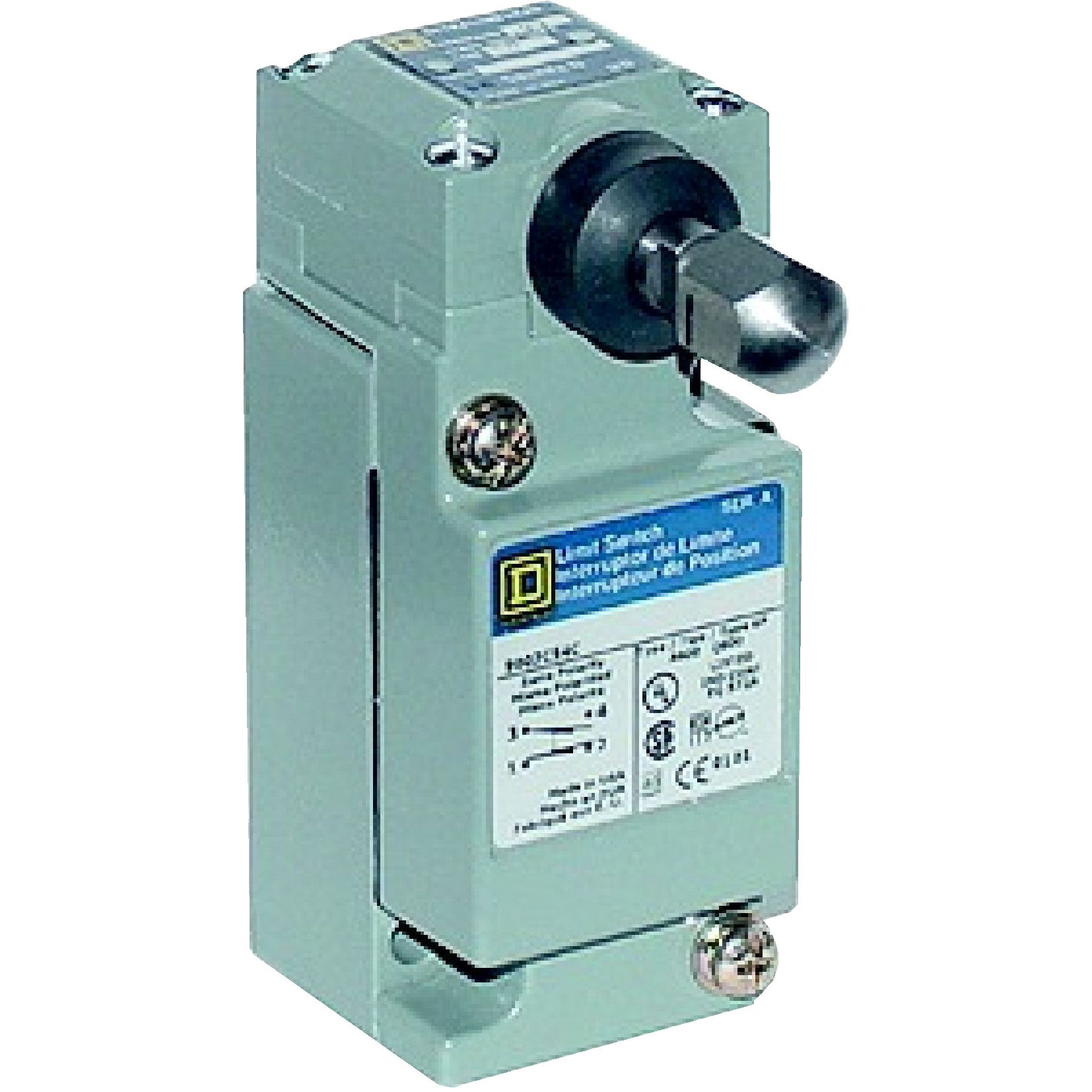

Telemecanique 9007 Heavy Duty Plunger Actuated Limit Switch, 600 VAC, 10 A, Spring Return Side Plunger Actuator, 1NO-1NC
Limit Switches
33768
MFG #: 9007C54GD
Telemecanique Sensors
276.17000
/ ea
- Action: On end;Lateral approach, 1 direction;Snap action
- Alternate Catalog Number: 9007C54GD
- Application: Standard box
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: 9007C54GD
- Connection: Screw-clamp terminals AWG 22...AWG 12), 1-2
- Contact Rating: NEMA A600/Q600
- Country of Origin: MX
- Currency: USD
- Enclosure: NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
- Environmental Conditions: STANDARD ENVIRONMENT
- EU RoHS Indicator: Y
- Gross Volume Per Pack: 24.08
- Gross Volume per Pack Metric: 394.60
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 1.2500 lb
- Gross Weight per Pack Metric: 566.99
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8536509055
- Height: 1.98 in
- Height [Metric]: 5.0800 cm
- Item Group: 21499
- Length: 4.21 in
- Length [Metric]: 10.7950 cm
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=374947&lang=en-us
- Mounting: By the body
- Operating Temperature: -20-185 A°F STANDARD ENVIRONMENT
- Returnable: N
- Size: 1.55 IN,2.71 IN,4.02-4.02 IN in
- Standard: 25 GN 10-150 HZ)IEC 60068-2-6,60 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140
- Standards: RoHS Compliant
- Sub Brand: 9007C
- Type: LIMIT SWITCH,PLUNGER HEAD
- UNSPSC: 39122213
- UPC 11: 78590154054
- UPC 12: 785901540540
- Warranty Description: Contractual Warranty:18 months
- Width: 2.77 in
- Width [Metric]: 7.1120 cm
- Stock Status: NONSTOCK
- Brand: Telemecanique Sensors
- Manufacturer: Telemecanique Sensors
- Actuator: Stainless steel spring return side plunger adjustable)
- Amperage Rating: 10 A
- Contact Configuration: NC-NO
- Voltage Rating: 1.2 A 600 V AC, A600 NEMA-0.1 A 600 V DC, Q600 NEMA
- Number Of Poles: 1
Telemecanique 9007C54GD LIMIT SWITCH 600V 10AMP C +OPTIONS,-,metal,plug-in,-20...185 deg.F for standard environment,0.5 Inch NPT Conduit Entrance (screw clamp terminals),1 entry for 1/2 - 14 NPT conforming to ANSI B1.20.1,plug-in,10 A,600V,9007,limit switch,plug-in,plunger head,9007C,heavy duty,plunger head,NC-NO,NEMA A600/Q600,Side Push-Rod (Adjustable) Horizontal,UL Listed - CSA Certified - CE Marked,linear,standard environment
- Brochure URL - 11003_D12WSZ0Y9A4IEPQB.pdf(Brochure URL)
- Brochure URL - files?p_enDocType=Brochure&p_File_Name=9007BR0801.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=MCADID0002614_2D-left.dwg(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - goto?PartNumber=9007C54GD(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_P6RXYZGHC0AFNWOL.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - files?p_File_Name=65013-309-03.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_QFG91UZ0XD4BMCV5.pdf(Spec Sheet URL)
- Spec Sheet URL - 7d490a0515e7b6e0951de9ddd596309cd23cdf4b.pdf(Spec Sheet URL)
- Applications
- Features
| Standard box |
| WITHOUT |
| 1 direction lateral approach |
| Plug-in body |
| C + options limit switch |
| Linear movement of operating head |
| Form Z, snap action silver contacts |
| Screw clamp terminals (22 to 12 AWG) electrical connection |
