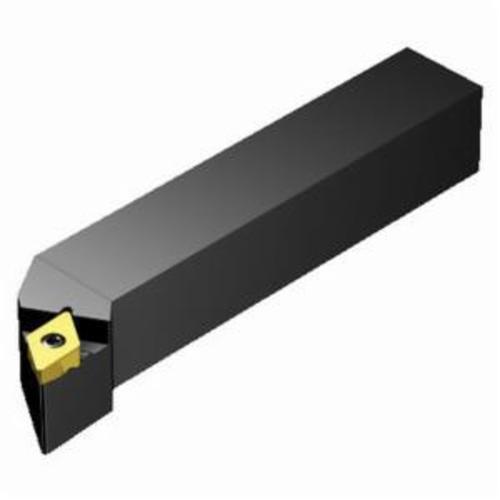

Sandvik Coromant 5755214 CoroTurn TR Turning Shank Tool, TR-DC1308 Insert, -3 deg Lead, Rectangle Shank, Left Hand
Indexable Turning Tool Holders
1248672
MFG #: 5755214
Sandvik Coromant
192.81000
/ ea
- Alternate Catalog Number: TR-D13JCL 16D
- ANSI Code: TR-D13JCL 16D
- Back of Bar to Cutting Edge: TR-D13JCL 16D
- Catalog Number: 5755214
- Country of Origin: SE
- Gross Weight Per Pack: 1.76000 lb
- Head Length: Rectangular
- Inscribed Circle: 0.433 in
- Insert Seat Size: 13
- ISO Code: TR-D13JCL 16D
- Item Group: 480
- Material: Steel
- Series: CoroTurn TR
- Shank Type: Rectangle
- Type: TR-DC1308
- UPC 11: 69826238255
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Cutting Direction: Left Hand
- Insert Compatibility: TR-DC1308
- Lead Angle: -3 deg
- Overall Length: 6 in
- Rake: 0 deg Neutral
- Shank Size: 1 in H x 1 in W
- Tool Holder Style: -3 deg
Sandvik Coromant Turning Shank Tool, Series: CoroTurn TR, 6 in Overall Length, Rectangle Shank, 1 in H x 1 in W Shank, Insert Compatibility: TR-DC1308, 13 Insert Seat, Left Hand Cutting, 0.433 in Inscribed Circle, -3 deg Lead Angle, ANSI Code: TR-D13JCL 16D, ISO Code: TR-D13JCL 16D, 0 deg Neutral Rake, Steel
- Features
| 20 life cycle state |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Without coolant entry |
| 40 - 60 deg insert screw, rail bottom |
| No coolant exit |
| 93 deg cutting edge |
| 0 deg inclination |
| 152.4 mm L functional |
| 28.5 mm overhang |
| 27 deg ramping |
| D-55 deg diamond insert shape |
| 13 mm insert seat |
| 3 Nm torque |
| TR-D13JCR/L tool style |
| 31.75 mm W functional |
| 1 in H functional |
| Screw clamp fastening |
| 0.2175 in THK insert |
