Sandvik Coromant 5743738 CoroMill® 216F, R216F..AxxS Insert, 0.3149 in Cutting, Right Hand, 0.047 in Max Depth of Cut, Steel
Indexable End Mills
1244556
MFG #: 5743738
Sandvik Coromant
492.47000
/ ea
- Alternate Catalog Number: R216F-08A12S-053
- ANSI Code: R216F-08A12S-053
- Catalog Number: 5743738
- Country of Origin: SE
- Gross Weight Per Pack: 0.3800 lb
- Insert Compatibility: R216F-08..
- ISO Code: R216F-08A12S-053
- Item Group: 440
- Maximum Depth of Cut: 0.047 in
- Number of Inserts: 1
- Overall Length: 4.3307 in
- Series: CoroMill® 216F
- Shank Diameter: 0.4724 in
- Shank Type: Cylindrical
- UPC 11: 69826219242
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Cutting Diameter: 0.3149 in
- Cutting Direction: Right Hand
- Insert Style: R216F..AxxS
- Material: Steel

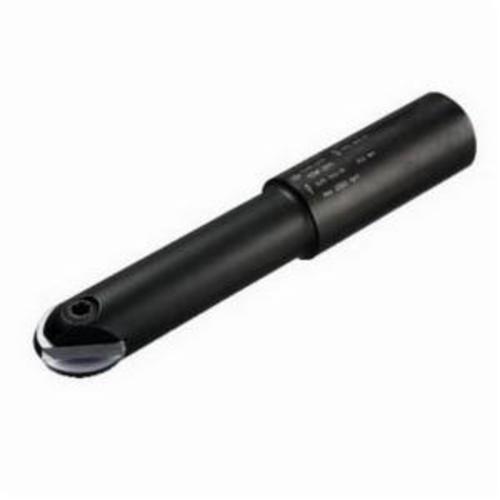

Sandvik Coromant Ball Nose Milling Cutter, Series: CoroMill® 216F, 0.3149 in Cutting Dia, 4.3307 in Overall Length, 0.047 in Maximum Depth of Cut, R216F..AxxS Insert, 1 Inserts, Insert Compatibility: R216F-08.., 0.4724 in Shank Dia, Cylindrical Shank, ANSI Code: R216F-08A12S-053, ISO Code: R216F-08A12S-053, Right Hand Cutting, Steel
- Features
| 20 life cycle state |
| Cylindrical shank machine side adaptive interface without clamping |
| 6.5 mm Dia body |
| 5 deg body half taper |
| Without coolant entry |
| 40 - 60 deg insert screw clamping |
| 0 deg rake orthogonal |
| 32.5 mm L body |
| S row identifier |
| 110 mm L functional |
| R insert shape |
| 85 deg ramping |
| 33600 r/min |
| 8 mm insert seat |
| 0.9 Nm torque |
| 2 face/peripheral effective cutting edges |
| R216F..AxxS tool style |
| 65 mm overhang |
| 41.5 mm L usable |
