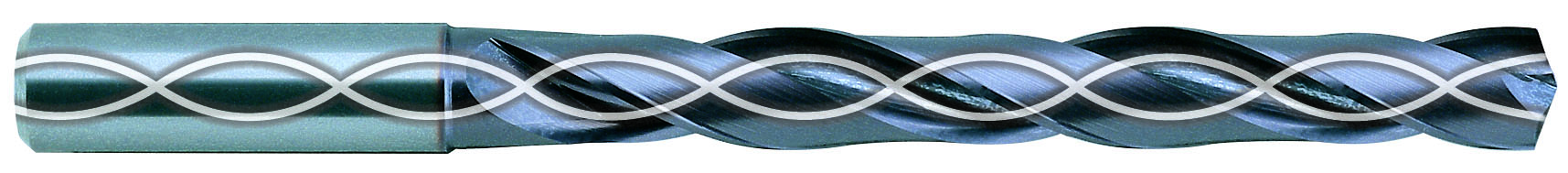

YG-1 DH424183 18.3 x 20 x 101 x 153 CARBIDE DREAM DRILL (5XD) - METRIC
Long Length Drill Bits
PDW~12659803
MFG #: DH424183
YG-1
480.88000
/ ea
- Applicable Materials: Carbon Steel, Alloy Steel and Pre-Hardened Steel
- Application: Steel
- Catalog Number: DH424183
- Country of Origin: KR
- Cutting Depth: 5XD
- Cutting Direction: Right Hand
- Cutting Edge Material: Micrograin Carbide
- Flute Length: 101 mm
- Flute Type: Spiral
- Gross Weight Per Pack: 1.0100 lb
- Helix Angle: 30 °
- Industry Standard: DIN 6537
- Number of Flutes: 2
- Point Angle: 140 °
- Point Length: 3.3303 mm
- Point Type: Self-Centering
- Series: DH424
- Shank Size: 20 mm
- Shank Tolerance: h6
- Shank Type: Straight
- Through Coolant: No
- Type: General Purpose Metric
- Brand: YG-1
- Manufacturer: YG-1 U.S.A.
- Finish: TiAlN
- Material: Carbide
- Overall Length: 153 mm
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
- Applications
| Steel |
