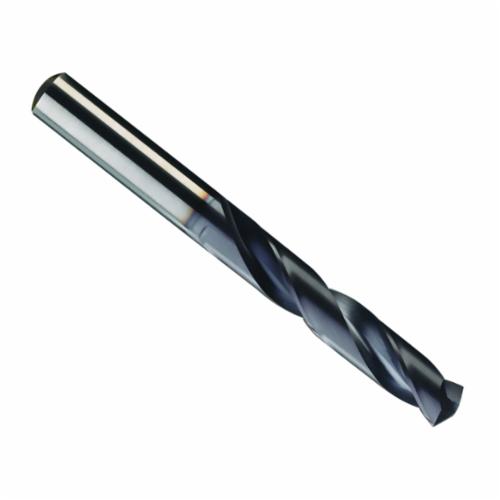

Dormer 5978966 Force X R453 Multi-Application Standard Length Jobber Length Drill Bit, 6.8 mm Drill - Metric, 0.2677 in Drill - Decimal Inch, 140 deg Point, Carbide, TiAlN Coated

Jobber Length Drill Bits
1439396 MFG #: 5978966
Dormer Pramet
154.18000 / ea
  • Alternate Catalog Number: 0616116
  • Catalog Number: 5978966
  • Color: Black/Gray
  • Cutting Depth: 5XD
  • Cutting Direction: Right Hand
  • Cutting Edge Material: Carbide
  • Drill Diameter Measurement System: Imperial/Metric
  • Flute Length: 53
  • Flute Type: CTW
  • Item Group: R453
  • Number of Flutes: 2
  • Overall Length: 91
  • Point Type: 4-Facet/Self-Centering/Split
  • Series: Force X R453
  • Shank Size: 8 mm Dia x 36 mm L
  • Shank Type: Straight
  • Type: Multi-Application Standard Length
  • UPC 11: 20760616116
  • Stock Status: NONSTOCK
  • Brand: Dormer Pramet
  • Manufacturer: Dormer Pramet
  • Finish: TiAlN Coated
  • Material: Carbide
  • Point Angle: 140
Dormer Jobber Length Drill Bit, Multi-Application Standard Length, Series: Force X R453, Metric/Imperial, 6.8 mm Drill - Metric, 0.2677 in Drill - Decimal Inch, 91 mm Overall Length, 5XD Cutting Depth, 2 Flutes, CTW Flute, 53 mm Flute Length, 8 mm Dia x 36 mm L Shank, Straight Shank, 140 deg Point, 4-Facet/Self-Centering/Split Point, Right Hand Cutting Direction, Carbide Cutting Edge, Yes Through Coolant, Carbide, TiAlN Coated, Black/Gray, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel, Alloy Steel/ Hardened and Tempered Steel, Alloy Steel/Hardened and Tempered Steel, Alloy Steel Hardened, Alloy Steel Hardened, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Precipitation Hardened Stainless Steel, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Unalloyed Titanium, Copper, Brass, Bronze, High Strength Bronze, Unalloyed Aluminum Magnesium and Alloyed Aluminum
QTY
  • Features
Self-centering 4-facet split point and CTW flute construction for enhanced penetration rate
TiAlN coating increases surface hardness, improves tool life at high RPM
