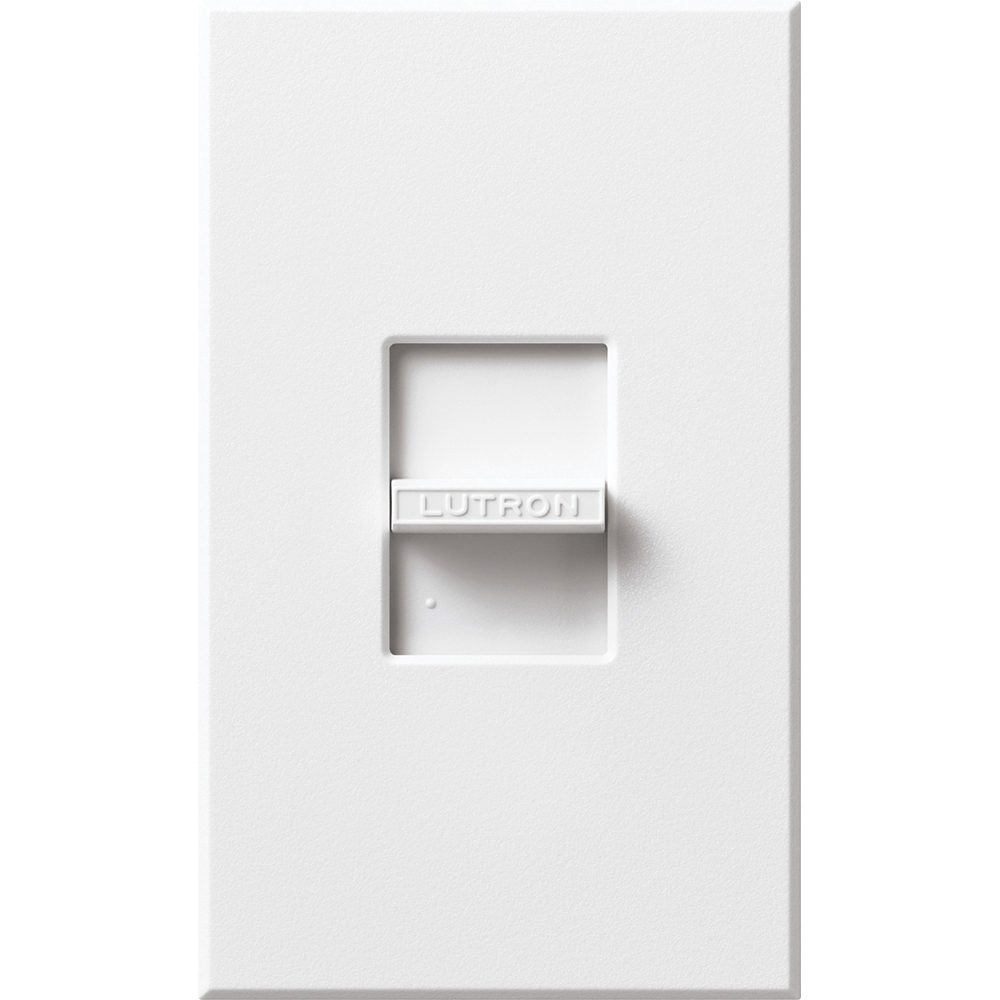

Nova® NFTV-WH Architectural 3-Wire Small Dimmer Switch, 120 VAC, 30 mA, 1 Pole, Slide-to-Off Mode, White
Dimmer Switches
200900
MFG #: NFTV-WH
Lutron®
97.50000
/ ea
- Actuator: Slide
- Application: Lighting Control
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: NFTV-WH
- Connection: Wire Leads
- Connection Type: Wire Leads
- Control: Small
- Country of Origin: US
- Currency: USD
- Dimensions: 4.56 in H x 2.75 in W x 0.65 in D
- Enclosure: Plastic
- EU RoHS Indicator: N
- Face Material: Metal;Plastic
- Frequency Rating: 50-60 Hz
- Gross Volume Per Pack: 0.06
- Gross Volume per Pack Metric: 0.00
- Gross Weight Per Pack: 0.5400 lb
- Gross Weight per Pack Metric: 0.23
- Gross Weight UOM Metric: kg
- Height: 3.90 in
- Height [Metric]: 9.9060 cm
- Insulation: Plastic
- Lamp Type: Fluorescent/LED
- Length: 5.40 in
- Length [Metric]: 13.7160 cm
- Material: Metal/Plastic
- Mounting: Wallbox
- Mounting Type: Wall
- Number Of Poles: 1
- Operating Temperature: 32 to 104 °F
- Series: NFTV
- Size: 4.56 x 2.75 in
- Standard: UL, CSA, NOM, ANSI/IEEE Std. C62.41-1980
- Standards: RoHS CompliantUL 1685NEC CertifiedCE Certified
- Sub Brand: Nova
- Switch Type: Slide
- Temperature Rating: 0 to 40 °C
- Terminal Type: Screw
- Type: Slide-to-off dimmer, single-pole
- UNSPSC: 39122206
- UPC 11: 02755775270
- UPC 12: 027557752701
- Width: 5.30 in
- Width [Metric]: 13.4620 cm
- Stock Status: NONSTOCK
- Brand: Lutron®
- Manufacturer: Lutron Electronics Co., Inc
- Amperage Rating: 30 mA
- Color: White
- Operation Mode: Slide to Off
- Voltage Rating: 10 VAC
Dimmers & switches with a wide array of styles, colors, and control options, Lutron offers hundreds of choices in stand-alone dimmers and switches. Multiple designs and control openings compliment any decor and provide functionality for ambiance, convenience, and security-meeting all of your lighting control needs.
- Catalog URL - Lutron_N_1003P_BL_Catalog.pdf(Catalog URL)
- http://www.lutron.com(Seller Home Page URL)
- Install Instructions 1 URL - 10977_AECZ1B9XYPLIFG0T.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 10977_8RSOBIP29UF06JQM.pdf(Spec Sheet URL)
- Spec Sheet URL - Spec%20Guide%20Volume%201%20Nova.pdf(Spec Sheet URL)
- Tech Drawing URL - 10977_NZYJBCVRKEOM2GHT.pdf(Tech Drawing URL)
- Video - https://www.lutron.com/Service-Support/Technical/InstallationInstructions/Pages/Videos.as...(Video)
- Video - https://www.youtube.com/embed/sMB7LYvhzEM(Video)
- Warranty URL - 10977_FACWP0X3TQZG6S52.pdf(Warranty URL)
- Warranty URL - 369-119_Wallbox_Warranty.pdf(Warranty URL)
- Applications
- Features
| Lighting Control |
| Controls 16 A LED driver/3-wire fluorescent ballast loads. Slide up to brighten, down to dim. |
| Nova® dimmers are the contractor's choice in rugged, linear slide dimmers |
| Over 25 years of proven reliability in the most demanding applications |
| Heavy duty components for surge protection and long product life |
| For demanding applications up to 2000 W |
| Slide adjusts light to suit any activity |
| Exclusive heat sink design maximizes convection cooling to maximize reliability |
| Full family of controls plus matching fan controls, switches and wiring devices |
| Voltage compensation maintains stable light levels, despite line voltage variations |
| Mechanical air gap switch to disconnect load power |
| 100% factory tested |
| Button turns on/off to slider level |
| Slides up to brighten and down to dim |
| Power failure memory |
| Superior RFI suppression |
| For 0 to 10 VDC/60 A ballasts and drivers |
| Use with PP-DV or PP-347H |
