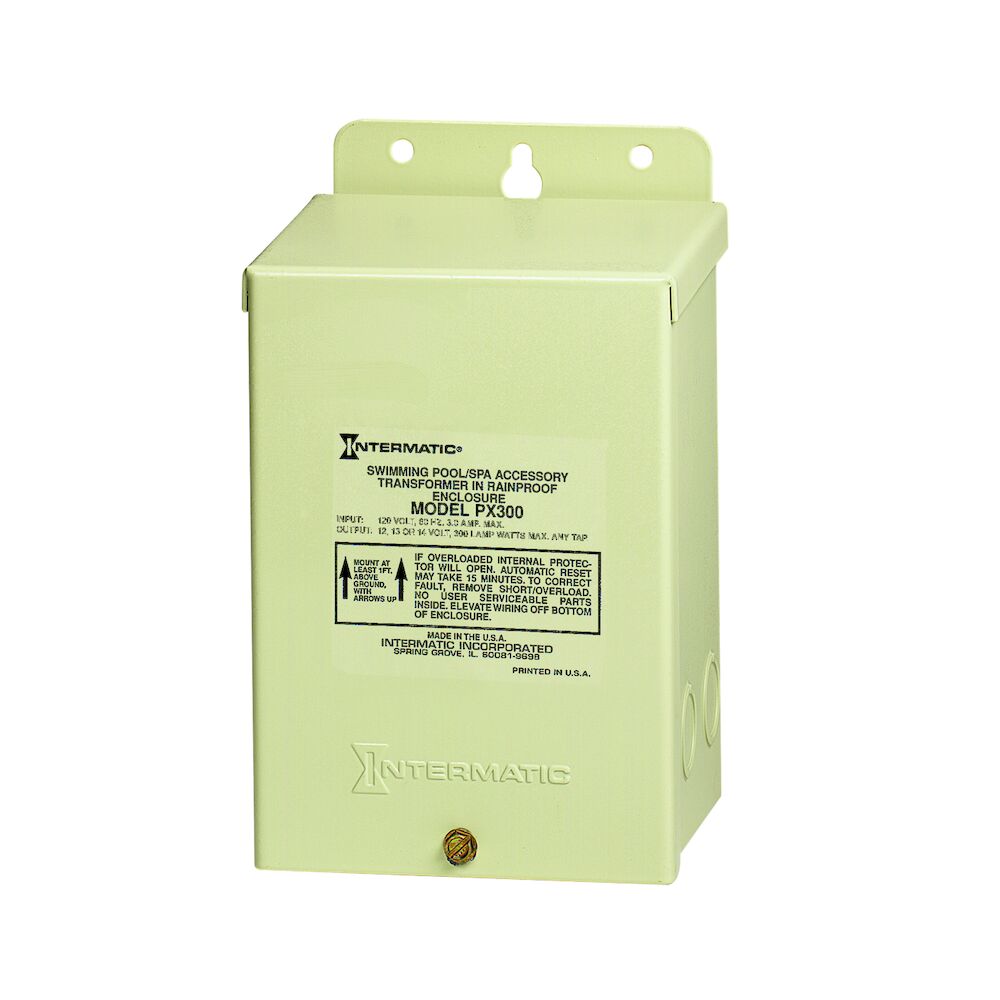

Intermatic® PX300 Safety Transformer, 120 VAC Input, 12/13/14 VDC Output, 300 W, 3 A, NEMA 3R Enclosure
Low Voltage Lighting Transformers
277431
MFG #: PX300
Intermatic®
162.56000
/ ea
- Application: Pool or Garden Lighting, Spa Lighting, Fountain Lighting
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: PX300
- Color: Beige
- Country of Origin: MX
- Currency: USD
- Dimensions: 7-1/4 in H x 5-1/4 in W x 4-1/2 in D
- Enclosure: Type 3R Steel
- EU RoHS Indicator: X
- Frequency Rating: 60 Hz
- Gross Weight Per Pack: 11.2500 lb
- Gross Weight per Pack Metric: 5.10
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8504314065
- Height: 7.88 in
- Height [Metric]: 20.0152 cm
- Length: 5.69 in
- Length [Metric]: 14.4526 cm
- Material: Steel
- Mounting: Bracket Mount
- Mounting Type: Panel
- Standard: cCSAus certified
- Standards: cCSAus Listed, RoHS Compliant
- Type: Safety Transformer
- UNSPSC: 39101904
- UPC 11: 07827502410
- UPC 12: 07827502410
- Width: 4.56 in
- Width [Metric]: 11.5824 cm
- Stock Status: NONSTOCK
- Brand: Intermatic®
- Manufacturer: Intermatic Incorporated
- Amperage Rating: 3 A
- Enclosure Type: NEMA 3R
- Input Voltage: 120 VAC
- Output Voltage: 12 VAC, 13 VAC, 14 VAC
- Wattage: 300 W
Intermatic® Safety Transformer, 120 VAC Input, 12/13/14 VDC Output, 300 W, 3 A, 60 Hz, NEMA 3R, Bracket Mount, Steel, Beige, 7-1/4 in H x 5-1/4 in W x 4-1/2 in D
- http://www.intermatic.com(Seller Home Page URL)
- http://www.intermatic.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11158_PJRI60AHBSLNX2WC.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - 88442_px100%20300%20installation%20manual.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 11158_SPE_General_Intermatic_Catalog_130.pdf(Spec Sheet URL)
- Spec Sheet URL - SPE_General_Intermatic_Catalog_130.pdf(Spec Sheet URL)
- Applications
- Features
| Pool or Garden Lighting, Spa Lighting, Fountain Lighting |
| Features: Built-In Circuit Protection will Disconnect Power to the Transformer in Case of Defect or Overload |
| Built-in circuit protection will disconnect power to the transformer in case of defect or overload |
| These safety transformers are specifically designed to supply 12-14 VAC and are suitable for direct connection to underwater pool/spa lights |
| Mounting brackets on the top and bottom |
| Complies with NEC code 680.23 requirements for underwater luminaries |
| Total of ten 1/2 - 3/4 in combination (4) bottom, (2) right side, (2) left side, (2) back |
