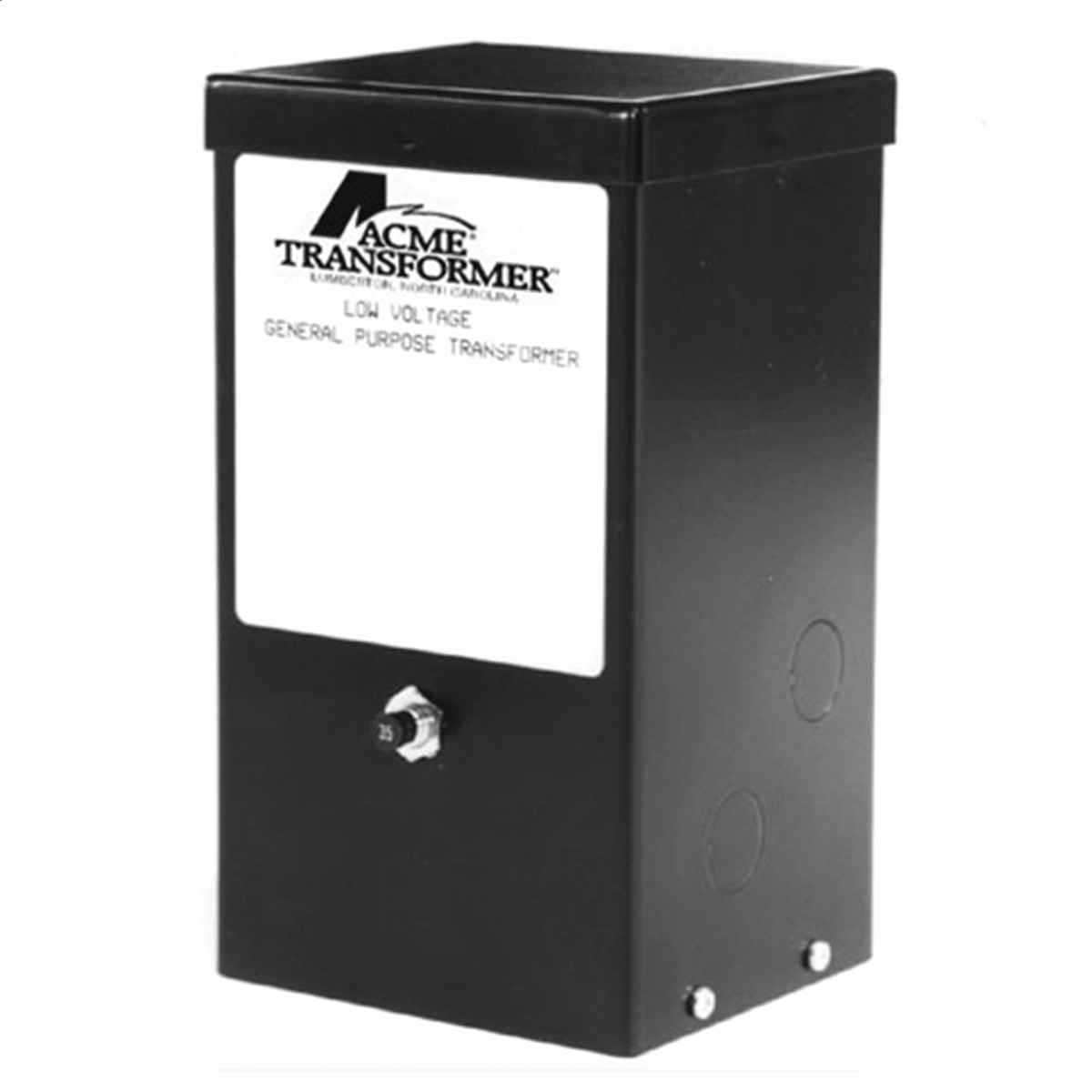

Acme Electric® T179622S General Purpose Low Voltage Lighting Transformer, 120 VAC Input, 12 VDC Output, 60 A
Low Voltage Lighting Transformers
472341
MFG #: T179622S
Acme Electric
393.12000
/ ea
- Application: Encapsulated
- ARRA Compliant: C
- Breaker Type: Magnetic Toggle ON/OFF
- Buy American Compliant: C
- Catalog Number: T179622S
- Color: Black
- Connection Type: Lead Wire
- Country of Origin: MX
- Currency: USD
- Dimensions: 11.68 in H x 4.66 in W x 4.57 in D
- Frequency Rating: 60 Hz
- Gross Weight Per Pack: 15.0000 lb
- Gross Weight per Pack Metric: 6.80
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8504314065
- Height: 11.68 in
- Height [Metric]: 29.6672 cm
- Length: 4.57 in
- Length [Metric]: 11.6078 cm
- Material: Copper
- Model: Low Voltage Lighting Transformer
- Mounting: WALL
- Mounting Type: Wall
- Returnable: N
- Standard: UL 379, UL File Number E111069V1,UL Insulation Number H3180, CSA Certified, OSHA Compliant, ANSI, IEEE
- Standards: UL Listed, CSA Certified
- Temperature Range: 115 °C
- Type: General Purpose Low Voltage
- UNSPSC: 39101904
- UPC 11: 04750341028
- UPC 12: 047503410288
- Width: 4.66 in
- Width [Metric]: 11.8364 cm
- Stock Status: NONSTOCK
- Brand: Acme Electric
- Manufacturer: Acme Electric
- Amperage Rating: 60 A
- Enclosure Type: NEMA 2
- Input Voltage: 120 VAC
- Output Voltage: 12 VAC
Acme Electric® Lighting Transformer, General Purpose Low Voltage, 120 VAC Input, 12 VDC Output, 60 A, 60 Hz, Lead Wire, NEMA 2, Magnetic Toggle On/Off Breakers, 600 VA Fuse, 115 deg C, Wall Mount, Copper, Black, 11.68 in H x 4.66 in W x 4.57 in D
- Safety Data Sheet URL - HCC_SDS.pdf(Safety Data Sheet URL)
- Seller Home Page URL - en(Seller Home Page URL)
- Spec Sheet URL - 11112_8BY9R1JI3QMKO6UF.pdf(Spec Sheet URL)
- Spec Sheet URL - T179622S.pdf(Spec Sheet URL)
- Warranty URL - WAR_product_warranty_information.pdf(Warranty URL)
- www.hubbell-acmeelectric.com(Seller Home Page URL)
- Applications
- Features
| Encapsulated |
| 600 VA, 1 phase |
| 1 phase, 2 windings |
| Input auto-thermal reset switch |
| Output circuit breaker |
| Fully encapsulated core and coil |
| Full fault current carrying Faraday shield |
| Flexible copper lead wire terminations |
| UL class 180 deg C insulation system 115 deg C rise |
| Bottom access |
| Two 0.875 in single knockouts each side |
| Two dual 0.875 in and 1.125 in knockouts on bottom cover |
