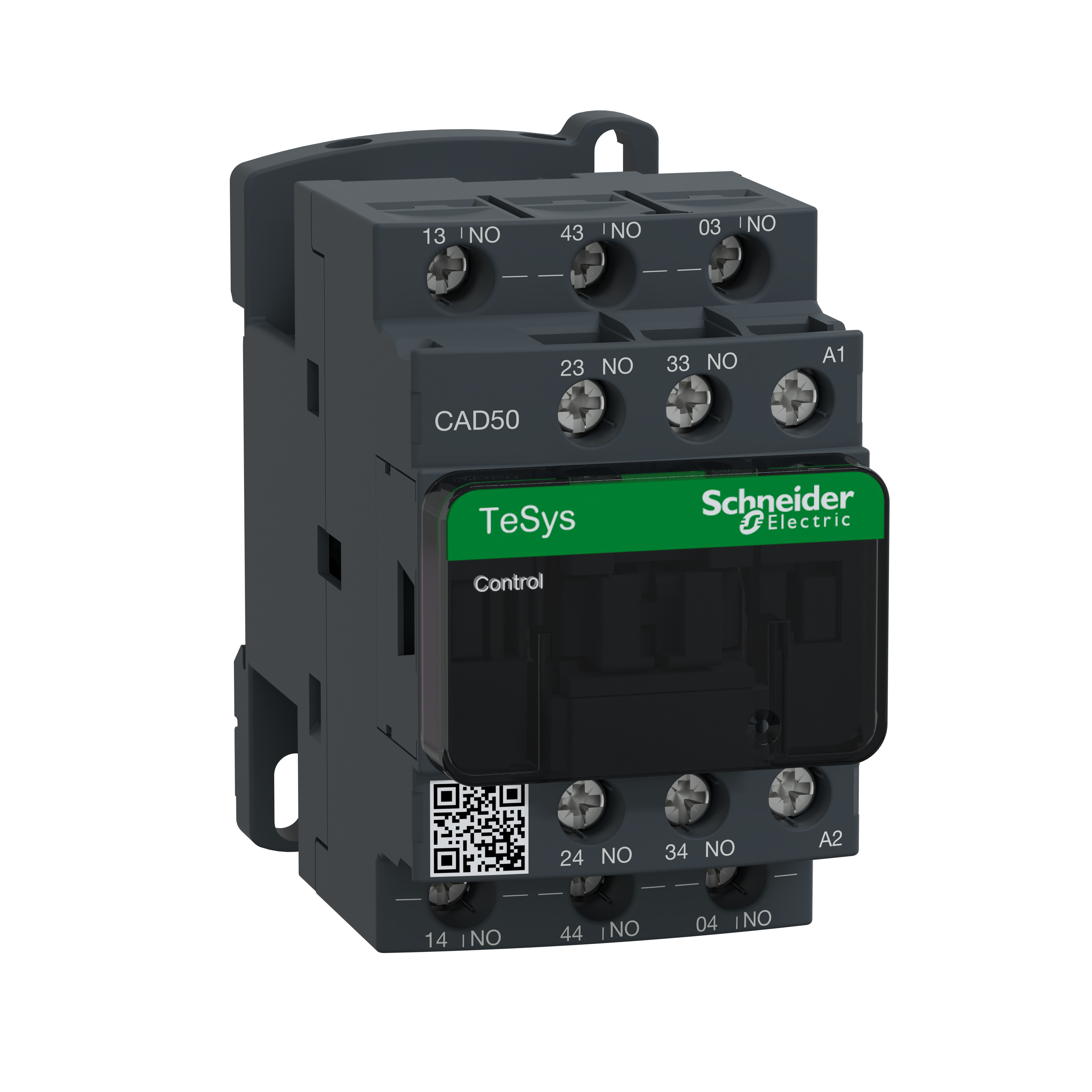

Schneider Electric CAD50B7 RELAY 600V 10AMP TESYS
IEC Control Relays
97054
MFG #: CAD50B7
Schneider Electric
84.59000
/ ea
- Alternate Catalog Number: CAD50B7
- Application: Control circuit
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: CAD50B7
- Coil: 24 V AC 50/60 Hz
- Coil Voltage: 24 VAC
- Contact Configuration: 5 NO
- Country of Origin: ID
- Currency: USD
- Dimensions: 3.03 in H x 1.77 in W x 3.31 in D
- Enclosure: IP2X FRONT FACE CONFORMING TO VDE 0106
- Enclosure Type: IP2X
- EU RoHS Indicator: Y
- Frequency Rating: 50/60 Hz
- Gross Volume Per Pack: 37.44
- Gross Volume per Pack Metric: 613.53
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 0.7800 lb
- Gross Weight per Pack Metric: 352.00
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8536410060
- Height: 5.0000 in
- Height [Metric]: 5.0000 cm
- Item Group: 22371
- Length: 11.2000 in
- Length [Metric]: 11.2000 cm
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1462723&lang=en-us
- Mounting: Rail;plate
- Mounting Type: Front/Plate Rail
- Number Of Poles: 5
- Operating Temperature: -40-70 A°C
- Power Rating: 8/70 VA
- Returnable: Y
- Series: TeSys™ D
- Size: 3.31 in
- Standard: IP2X FRONT FACE VDE 0106,UL-CSA
- Sub Brand: TESYS
- Substitute Product Catalog Number: LADN22
- Temperature Rating: -40 to 70 °C
- Terminal Type: Screw/Clamp
- Type: CONTROL RELAY
- UNSPSC: 39122331
- UPC 11: 78590120488
- UPC 12: 785901204886
- Warranty Description: Contractual Warranty:18 months
- Width: 9.2000 in
- Width [Metric]: 9.2000 cm
- Stock Status: NONSTOCK
- Brand: Schneider Electric
- Manufacturer: Schneider Electric
- Amperage Rating: 10 A
- Contact Form: 5NO
Schneider Electric CAD50B7 RELAY 600V 10AMP TESYS +OPTIONS,-40...70 deg.C,10 A at <= 60 deg.C,24VAC,5 NO,A600 - Q600,IP2x front face conforming to VDE 0106,Screw Clamp,TeSys,UL Listed File Number E164353 CCN NKCR - CSA Certified File Number LR43364 Class 3211 03 - CE Marked - IEC Rated,control circuit,control relay,rail-plate
- 360 Degree View URL - index.html?pid=11003&id=8081212360Den&ext=webp(360 Degree View URL)
- Brochure URL - 18a980d685243854ca4e35ce1b2b9ac4fe7f4dc6.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_4CT8A7OV2ZUEYDQP.pdf(Install Instructions 1 URL)
- Line Drawing URL(Line Drawing URL)
- ROHS Compliance URL - Schneider_Electric_CAD50B7_RoHS.pdf(ROHS Compliance URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_KGH6DENT0RC5B9M4.pdf(Service Manual URL)
- Spec Sheet URL - 11003_IHFU2K60BATVY5XQ.pdf(Spec Sheet URL)
- Tech Drawing URL - sales?sn=CAD50B7(Tech Drawing URL)
- Applications
- Features
| Control circuit |
| 70 VA inrush and 8 VA hold-in power rating |
