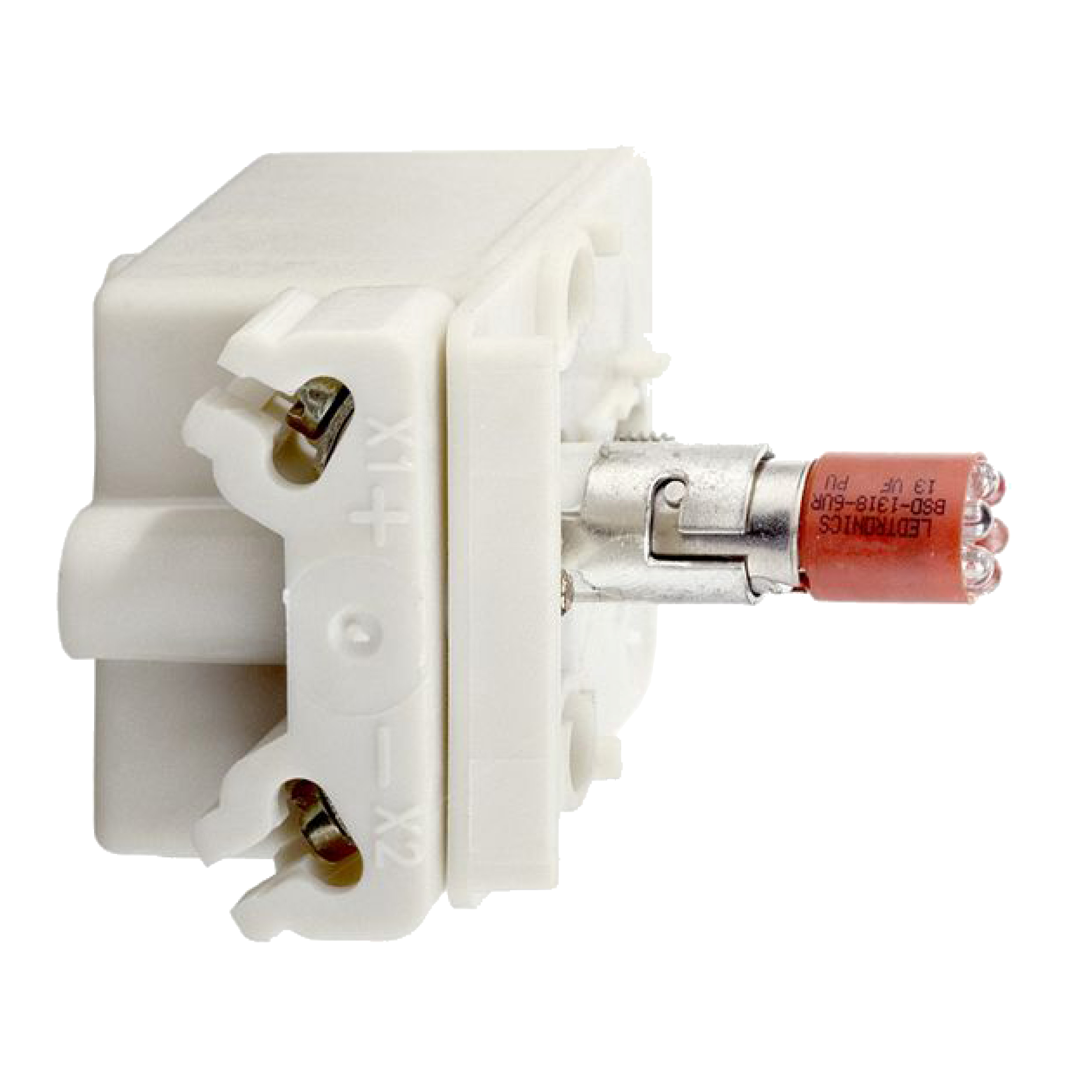

Square D™ Harmony™ 9001KM58LR Light Module, Integral LED Lamp, 110 to 120 VAC/VDC, Spring Clamp Terminal, Red
Pushbutton & Switch Light Source Units
1487741
MFG #: 9001KM58LR
Square D™
190.25000
/ ea
- Alternate Catalog Number: 9001KM58LR
- Application: For Harmony™ 9001TK, 9001SK and 9001KX standard and shallow depth 30 mm round control units and pilot light
- ARRA Compliant: N
- Base: BA 9s
- Buy American Compliant: N
- Catalog Number: 9001KM58LR
- Country of Origin: MX
- Currency: USD
- Dimensions: 43 mm W x 45 mm H
- EU RoHS Indicator: Y
- Gross Weight Per Pack: 1.1340 lb
- Gross Weight per Pack Metric: 113.40
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8531809026
- Height: 4.5720 in
- Height [Metric]: 4.5720 cm
- Illumination Type: LED
- Item Group: 21435
- Length: 9.1440 in
- Length [Metric]: 9.1440 cm
- Material: Thermoplastic Polyester
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=468517&lang=en-us
- Mounting Type: Surface
- Operating Temperature: -25-70 A°C
- Returnable: N
- Series: 9001KM
- Standard: 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,CSA C22.2 NO 14-EN/IEC 60947-5-4-EN/IEC 60947-1-JIS C 852-EN/IEC 60947-5-1-UL 508-JIS C 4520,IP20 IEC 60529,NEMA-UL 508
- Type: LIGHT BLOCK
- UNSPSC: 39121534
- UPC 11: 78590177142
- UPC 12: 785901771425
- Warranty Description: Contractual Warranty:18 months
- Width: 5.3340 in
- Width [Metric]: 5.3340 cm
- Stock Status: NONSTOCK
- Brand: Square D™
- Manufacturer: Schneider Electric
- Color: Red
- Lamp Type: Integral LED
- Terminal Type: Spring Clamp
- Voltage Rating: 110 to 120
Square D™ Harmony™ Light Module, Series: 9001KM, Integral LED Lamp, 110 to 120 VAC/VDC, Spring Clamp Terminal, Surface Mount, Thermoplastic Polyester, Red, 43 mm W x 45 mm H
- Brochure URL - 11003_8QOJYL9EPK6C5SGW.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=9001KM58LR_3D.stp(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_BDKLHJPQ78C2V0U1.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_UYNQ5ZCO8T23K60R.pdf(Service Manual URL)
- Spec Sheet URL - 11003_B08LJR279WIMCXPN.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_AO9QB0P32NZRGFJ1.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/z4UUZQz35-w(Video)
- Applications
- Features
| For Harmony™ 9001TK, 9001SK and 9001KX standard and shallow depth 30 mm round control units and pilot light |
| LIGHT BLOCK |
