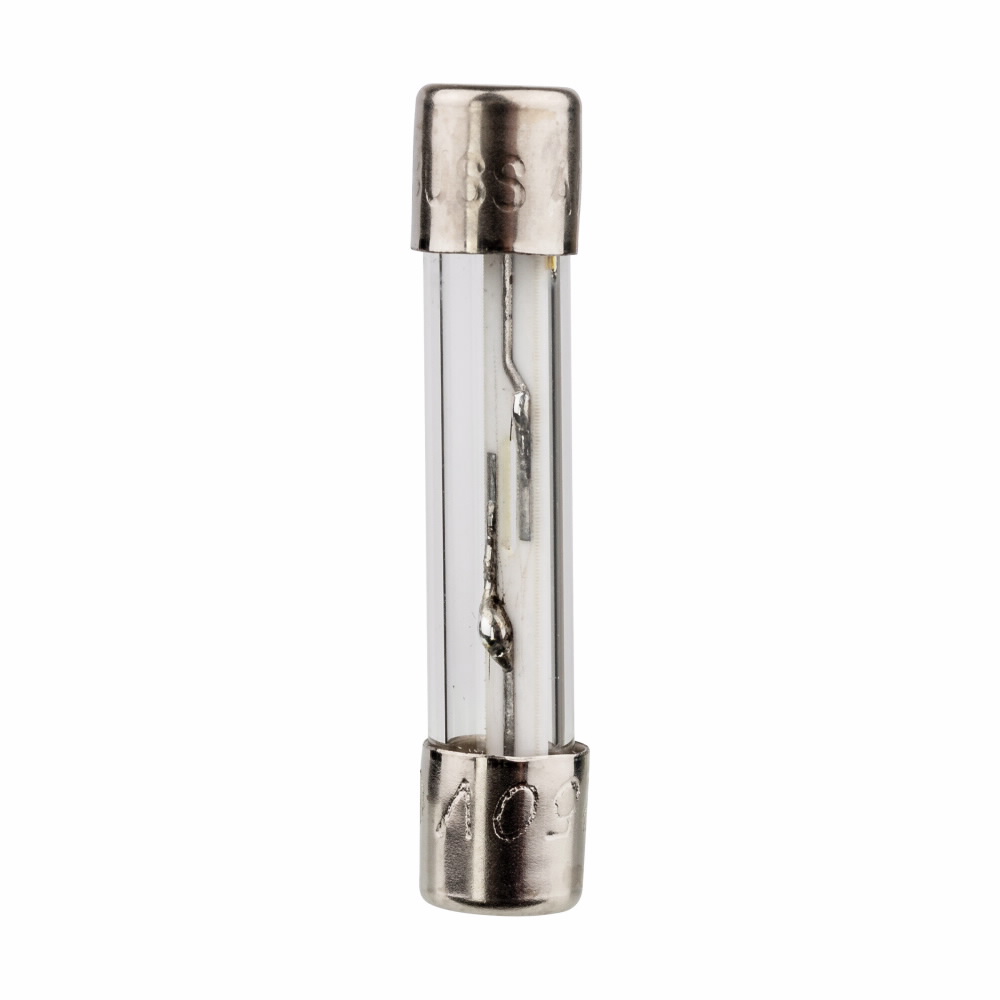

Bussmann® AGC-1/32 AGC Fast Acting Electronic Fuse, 0.031 A, 250 VAC, 35 A, Cylindrical Body
Fast Acting Fuses
727873
MFG #: AGC-1/32
Bussmann
96.66000
/ ea
- Alternate Catalog Number: AGC-1/32
- Application: Ind Facilities & Factories - Facility: Safety and Security Systems
- ARRA Compliant: C
- Body Size: 1/4 in Dia x 1-1/4 in L
- Buy American Compliant: C
- Catalog Number: AGC-1/32
- Connection: Ferrule end x ferrule end
- Country of Origin: US
- Currency: USD
- EU RoHS Indicator: C
- Gross Weight Per Pack: 0.0100 lb
- Gross Weight per Pack Metric: 0.00
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536100020
- Height: 8.81 in
- Height [Metric]: 22.3774 cm
- Indicating|Non~Indicating: Non-Indicating
- Length: 13.38 in
- Length [Metric]: 33.9852 cm
- Material: Glass tubeNickel-plated brass end cap construction
- Mounting Type: Holder
- Response Time: 60 min at 135%, 120 sec at 200% s
- Series: AGC
- Size: 1/4 In Diameter X 1-1/4 In Length
- Standard: Not Applicable
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedC22.2/CSA Class 1422-01UL File No. 053787CE CertifiedUL ListedGuide JDYX UL File No. E19180
- Sub Brand: Bussmann Series
- Terminal Type: Ferrule
- Type: Fast-acting glass tube fuse
- UNSPSC: 39121607
- UPC 11: 05171270358
- UPC 12: 051712703581
- Width: 11.31 in
- Width [Metric]: 28.7274 cm
- Stock Status: NONSTOCK
- Brand: Bussmann
- Manufacturer: Eaton
- Amperage Rating: 0.03125A
- Body Type: Cylindrical
- Interrupt Rating: 35 A, 10 kA
- Voltage Rating: 250 VAC//VDC
World's leading supplier of fuses and fusible protection systems, Bussmann continues its 88-year history of blazing new trails of innovative technologies. Maker of the industry's first truly global product line, each item is backed by an efficient worldwide network of distribution, customer service and technical support. Bussmann products include the most extensive circuit protection solutions approved for use in a variety of major standards: UL, CSA, IEC. Not to mention both European (DIN, British Standard) and North American styled fuses for a wide range of applications: industrial motor protection, power conversion, medium voltage, power distribution, telecommunications network equipment, electronics, and automotive.
- Brochure URL - COBUSSE01827_63.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_f4145cb9bae61da3ebf060551e4a113e2cb78f582478d08da9ab89eabafc0eb5.pdf(Catalog URL)
- http://www.bussmann.com(Seller Home Page URL)
- Seller Home Page URL - bussmann.html(Seller Home Page URL)
- Spec Sheet 1 URL - Edison_AGC_1_R_Specification_Sheet_1.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 10973_KIDOWF7QERX2VH5G.pdf(Spec Sheet URL)
- Spec Sheet URL - 32(Spec Sheet URL)
- Tech Drawing URL - 10973_T6DFRZEI1HOW20K8.pdf(Tech Drawing URL)
- Tech Drawing URL - Bus_Elx_DS_OC-2543_AGC_Series.pdf(Tech Drawing URL)
- Applications
- Features
| Ind Facilities & Factories - Facility: Safety and Security Systems |
| Interrupt Rating 35 Amp at 250 Vac, 10 kA at 125 Vac, Material Glass Tube, Nickel Plated Brass Endcap |
| Original electronic glass tube fuse |
| Fast-acting for maximum protection |
| Wide amp/volt ratings allow versatility of protecting electronic circuits |
| Nickel-plated brass endcap construction |
| 60 min maximum at 135% of response time |
| Size 3AG |
| AC interrupting rating of 10 kA at 125 V |
