nVent HOFFMAN MAD1201030R5 2-Door Wall Mount Enclosure, 1000 mm W x 300 mm D x 1200 mm H, NEMA 12/13/IK10/IP55 NEMA Rating, Mild Steel
Wall Mount Enclosures
PDW~14117191
MFG #: MAD1201030R5
nVent HOFFMAN
0.00000
/ ea
- Application: Controls and Drives; Factory Automation and Process Control
- ARRA Compliant: C
- Buy American Compliant: C
- Cable Entry: NO
- Catalog Number: MAD1201030R5
- Color: Light Gray
- Construction: Body: 16 gauge Door: 14 gauge
- Country of Origin: MX
- Cubic Capacity: 13 Cu-ft
- Currency: USD
- EU RoHS Indicator: NEW
- Finish: Powder Coat
- Gross Volume Per Pack: 13.63
- Gross Weight Per Pack: 184.4300 lb
- Gross Weight per Pack Metric: 83.66
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 7326908688
- Height [Metric]: 31.5976 cm
- Insulation: None
- Item Group: GW1
- Length [Metric]: 120.9548 cm
- Mounting: Wall Mounted
- Number Of Outlet: 1
- Returnable: Y
- Size: 47.24 x 39.37 x 11.81 inch
- Type: Mild Steel Wall Mounted Industrial Enclosures
- UNSPSC: 39121324
- UPC 11: 78351048665
- UPC 12: 783510486655
- Width [Metric]: 100.9650 cm
- Brand: nVent HOFFMAN
- Manufacturer: HOFFMAN ENCLOSURES
- Depth: 11.81
- Height: 12.4400 in
- Length: 39.7500 in
- Material: Mild Steel
- NEMA Rating: NEMA Type 12 NEMA Type 13
- Width: 47.6200 in

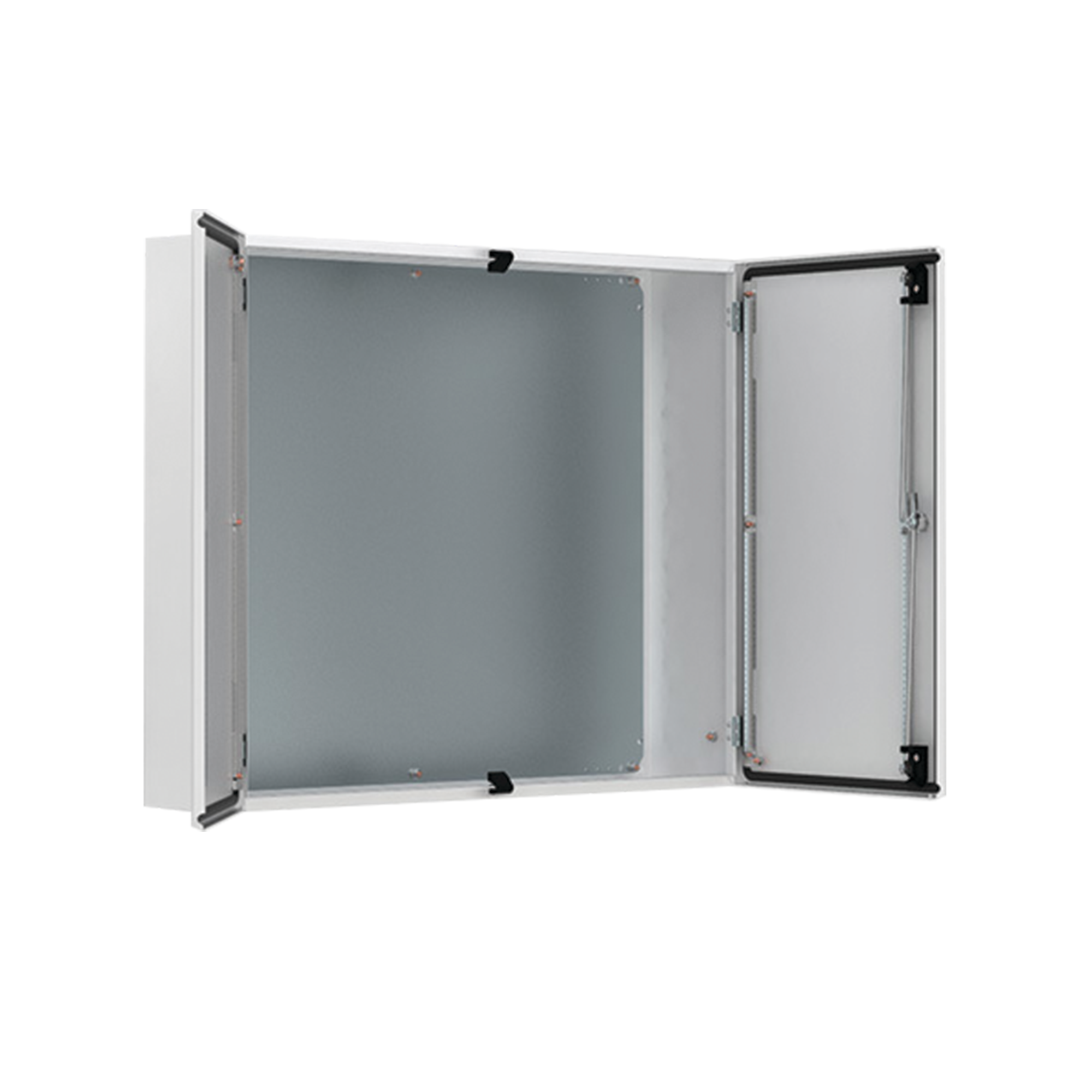

nVent HOFFMAN Wall Mount Enclosure, 2-Door, Series: MAD, 1000 mm Width, 300 mm Depth, 1200 mm Height, NEMA 12/13/IK10/IP55 NEMA Rating, 950 mm W x 1170 mm H Panel, Lock: 3-Point Espagnolette, Wall Mounting, Mild Steel, Powder Coated, Light Gray
- http://www.hoffmanonline.com(Seller Home Page URL)
- Install Instructions 1 URL - 11015_OYNMA9I0KDW83T24.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - MAD MI_V5.pdf(Install Instructions 1 URL)
- Spec Sheet URL - MAD-SF(ENGLISH).pdf(Spec Sheet URL)
- Warranty URL - terms-of-sale.pdf(Warranty URL)
- Applications
- Features
| Controls and Drives; Factory Automation and Process Control |
| IP55, type 12, 13, IK10 |
| For outdoor installation, the use of a rain hood ARF and 100% polyester paint coating is recommended |
| The corrosion resistance must be taken into consideration |
| Body - Folded and seam welded |
| Four 8.5 mm Dia holes for wall fixing, pressed out in 20.4 mm Dia x 2 mm depressions, to allow air circulation around the rear part of the enclosure |
| Door - Surface mounted with 130 deg opening |
| Concealed removable hinges with captive pin |
| Inner M6 welded studs to mount door profiles MMDP |
| Two removable mounting profiles on the right hand door and two on the left hand door |
| Sealing is ensured by an injected one piece polyurethane gasket |
| Lock - Customized lock with double bit for easy opening of the door |
| Double bit 3 mm insert and 90 deg movement |
| Espagnolette three point locking |
| Other inserts are available as an accessory |
| Gland plate - Situated at the far rear of the enclosure, to make cabling onto the mounting plate easier |
| Mounting plate - The mounting plate is marked vertically at 10 mm intervals, for easy horizontal positioning of equipment |
| On the top and bottom there are holes to facilitate cable fixing |
| Fixed onto M8 press welded studs to the rear of the enclosure |
| All sides, from 800 mm and above, are strengthened by folded edges |
| By using the AMG accessory, the mounting plate position can be adjusted to any depth |
