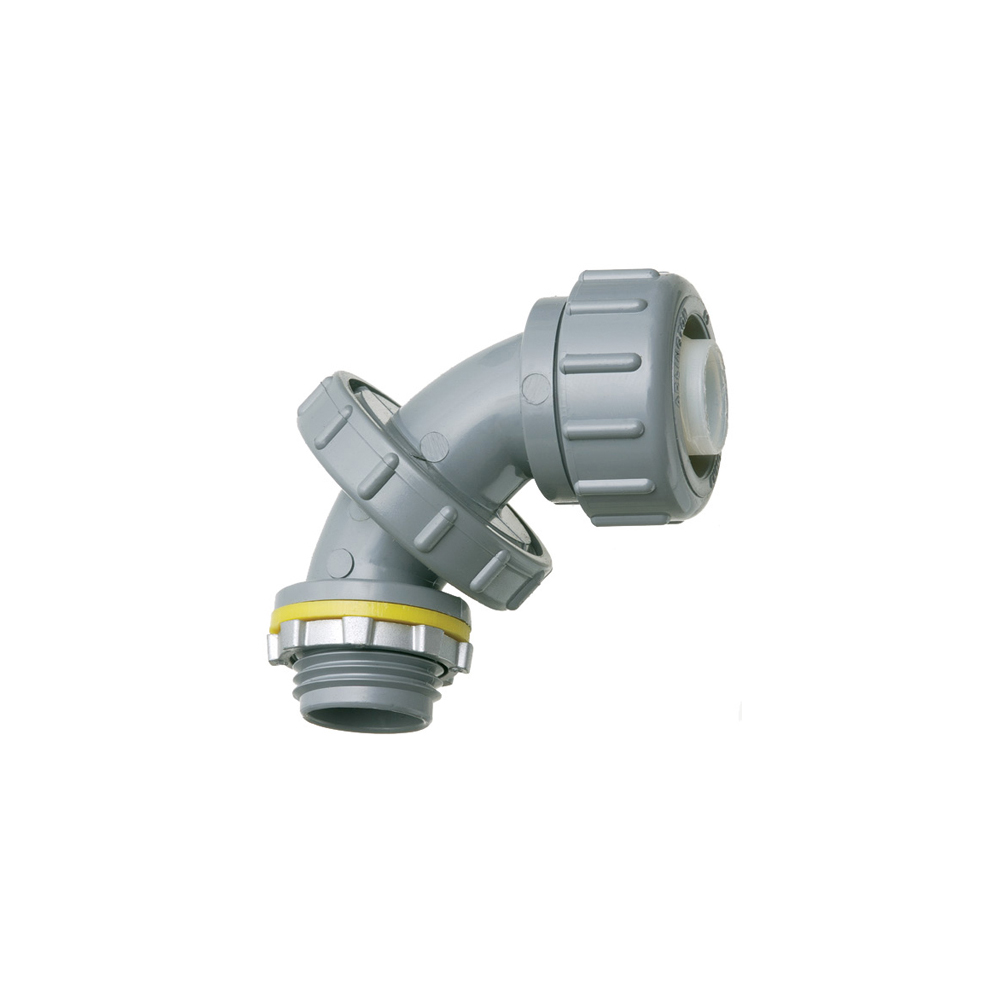

Arlington NMLT5090 Liquidtight Conduit Connector, 1/2 in Trade, 90 deg, Plastic
Liquidtight Conduit Connectors
734047
MFG #: NMLT5090
Arlington
447.85000
/ ea
- Application: Outdoor, Non Metallic Liquid Tight Conduit Type B
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: NMLT5090
- Color: Gray
- Connection: Threaded X Screw-In
- Country of Origin: USA
- Currency: USD
- Dimensions: 2.324 in L x 2.387 in W x 1.945 in H
- EU RoHS Indicator: C
- Form: Form B
- Gross Weight Per Pack: 0.0730 lb
- Gross Weight per Pack Metric: 0.03
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 3917409092
- Height: 1.94 in
- Height [Metric]: 4.9403 cm
- Length: 2.32 in
- Length [Metric]: 5.9030 cm
- Mounting Type: Threaded
- Returnable: Y
- Size: L(2.324) x W(2.387) x H(1.945) IN in
- Standard: UL and CSA
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E60812CSA File No. LR49636
- Sub Brand: Zero to 90
- Suitable For Use With: Type B Non-Metallic Liquidtight Conduit
- Type: 0 to 90 Deg Angle Connector
- UNSPSC: 39121420
- UPC 11: 01899706240
- UPC 12: 01899706240
- Warranty Description: 1 Year Warranty Against Manufacturer Defects
- Width: 2.39 in
- Width [Metric]: 6.0630 cm
- Stock Status: NONSTOCK
- Brand: Arlington
- Manufacturer: Arlington Industries, Inc.
- Angle: 90 °
- Material: PVC
- Trade Size: 1/2 in
Arlington Liquidtight Conduit Connector, 1/2 in, 90 deg, For Use With: Non-Metallic Type B Liquidtight Conduit, Threaded Mount, Plastic, Gray, 2.765 in L x 2.387 in H
- http://www.aifittings.com(Seller Home Page URL)
- Install Instructions 1 URL - IDW_Arlington_NMLT5090_Installation_Instructions.pdf(Install Instructions 1 URL)
- Line Drawing URL - 11196_ID-LIN-v1-NMLT5090-NMLT7590.pdf(Line Drawing URL)
- Spec Sheet 1 URL - Arlington_NMLT5090_Specification_Sheet_1.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 11196_ID-SPE-v1-NMLT5090.pdf(Spec Sheet URL)
- Tech Drawing 1 URL - Arlington_NMLT5090_Technical_Sheet.pdf(Tech Drawing 1 URL)
- Warranty 1 URL - IDW_Arlington_NMLT5090BL_Warranty.pdf(Warranty 1 URL)
- Warranty URL - 11196_FO6QK9M85W1P2H4B.pdf(Warranty URL)
- Applications
- Features
| Outdoor, Non Metallic Liquid Tight Conduit Type B |
| 2.765 IN Length X 2.387 IN Height, 50 Per Pack |
| Adjusts for all angles from 0 to 90 deg by simply loosening the center nut, twist to the correct angle and then retightening the nut |
| Form B |
| Made of UV Rated Plastic |
