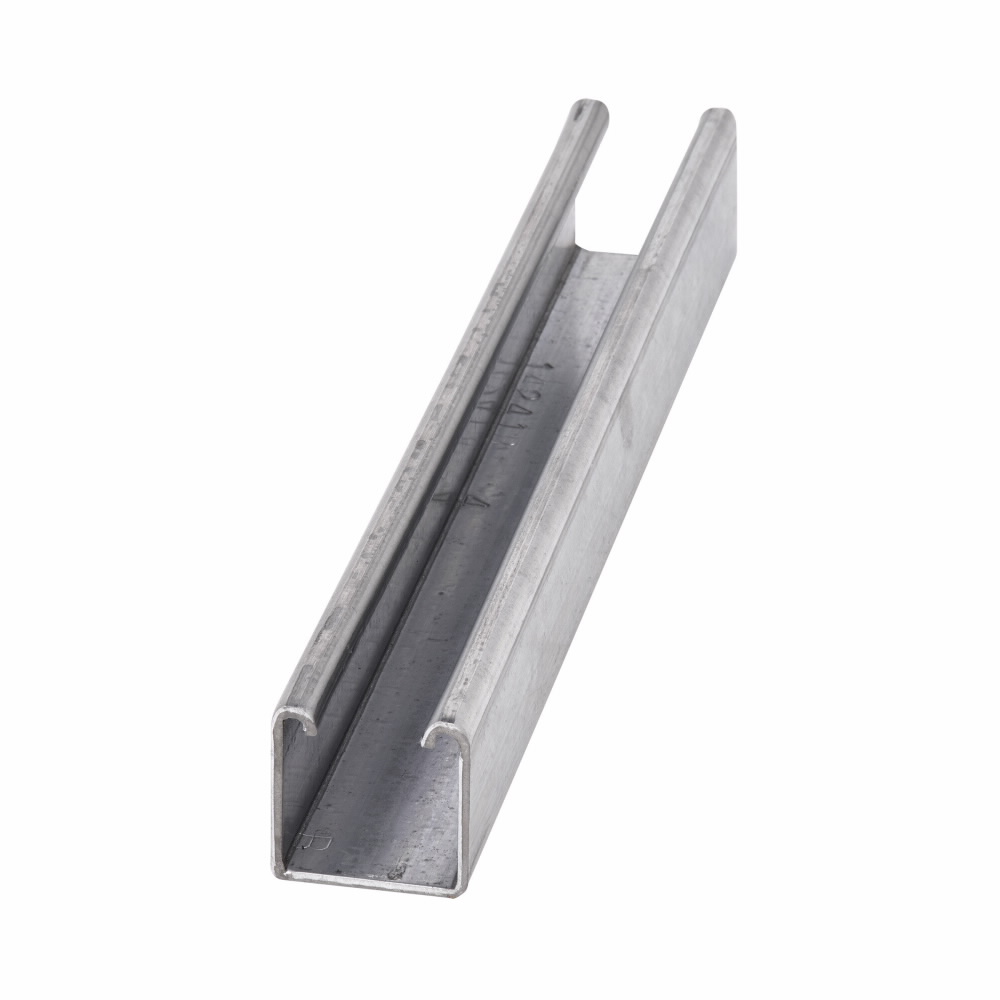

B-Line B22-120HDG B22 Solid Channel, 12 ga THK, 10 ft L
Channel & Strut
219124
MFG #: B22-120HDG
B-Line
832.55000
/ ft
- Alternate Catalog Number: 78101121109
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: B22-120HDG
- Country of Origin: MUL
- Currency: USD
- Depth: 1-5/8 in
- EU RoHS Indicator: C
- Finish: Hot-Dip Galvanize
- Gauge: 12
- Gross Weight Per Pack: 1.9000 lb
- Gross Weight per Pack Metric: 0.81
- Gross Weight UOM Metric: kg
- Height: 1.62 in
- Height [Metric]: 4.1275 cm
- Length [Metric]: 30.4800 cm
- Material: Steel
- Material Composition: Cold Formed Low Carbon Steel
- Material Standard: ASTM A123
- Returnable: Y
- Series: B22
- Standard: UL
- Standards: UL Listed
- Sub Brand: B-Line series
- Type: Single, Solid, Metal Framing
- UNSPSC: 30101804
- UPC 11: 78101121109
- UPC 12: 781011211097
- Width: 1.62 in
- Width [Metric]: 4.1275 cm
- Stock Status: NONSTOCK
- Brand: B-Line
- Manufacturer: Eaton
- Length: 12.00 in
- Thickness: 12 ga
Eaton's metal framing support system provides an economical solution for electrical, mechanical and industrial supports and is designed with many time-saving features. They are fully adjustable and reusable, with a complete line of channels, fittings and accessories for multi-purpose applications. Channel and fittings can be taken apart for reuse as quickly as they were assembled, producing substantial savings in time and labor, yet they provide the strength of welded construction.
- Brochure URL - mfc-b22channel.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_922cf89c5740099e5dad5543c114ae57d5cb52dea316713736806946e65f18a6.pdf(Catalog URL)
- Cold Formed Low Carbon Steel(Material Composition)
- http://www.bline.com(Seller Home Page URL)
- Install Instructions 1 URL - 11024_U97DRC3LV1X5ATFB.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 11024_G7HCM92I6LNESRVA.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11024_M824CDFPTY6L7EVW.pdf(Tech Bulletin URL)
- Warranty 1 URL - IDW_DOCUMENT_1537666263090.pdf(Warranty 1 URL)
- Warranty URL - 11024_ID-WAR-v1-B-Line_Legal_Statement_and_Terms_and_Conditions.pdf(Warranty URL)
- Applications
- Features
| Other IT and Datacom - Other InfrastructuresResidential Bldgs & Facilities - Residential Bldgs & Facilities - OtherWater and Wastewater Systems - Water and Wastewater Systems - OtherInd Facilities & Factories - Industrial Facilities/Factories - OtherInd Facilities & Factories - Facility - OtherCommercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - OtherCommercial / Institutional Buildings / Structures - Commercial/Inst Bldg Strctures - AftermarketGeneration - Renewable Energy - Alternative EnergyGeneration - Conventional Energy - Conventional EnergyDatacenters - IT Space: Enterprise / Server Room / Network ClosetUtilityDatacenters - Datacenters - Other |
| +/- 1/8 in ON 10 ft for all channel tolerances excluding SH style |
| Ideally used to provide support for wiring, mechanical components in construction and electrical industries |
| Metal framing |
| ASTM A123 steel materia |
