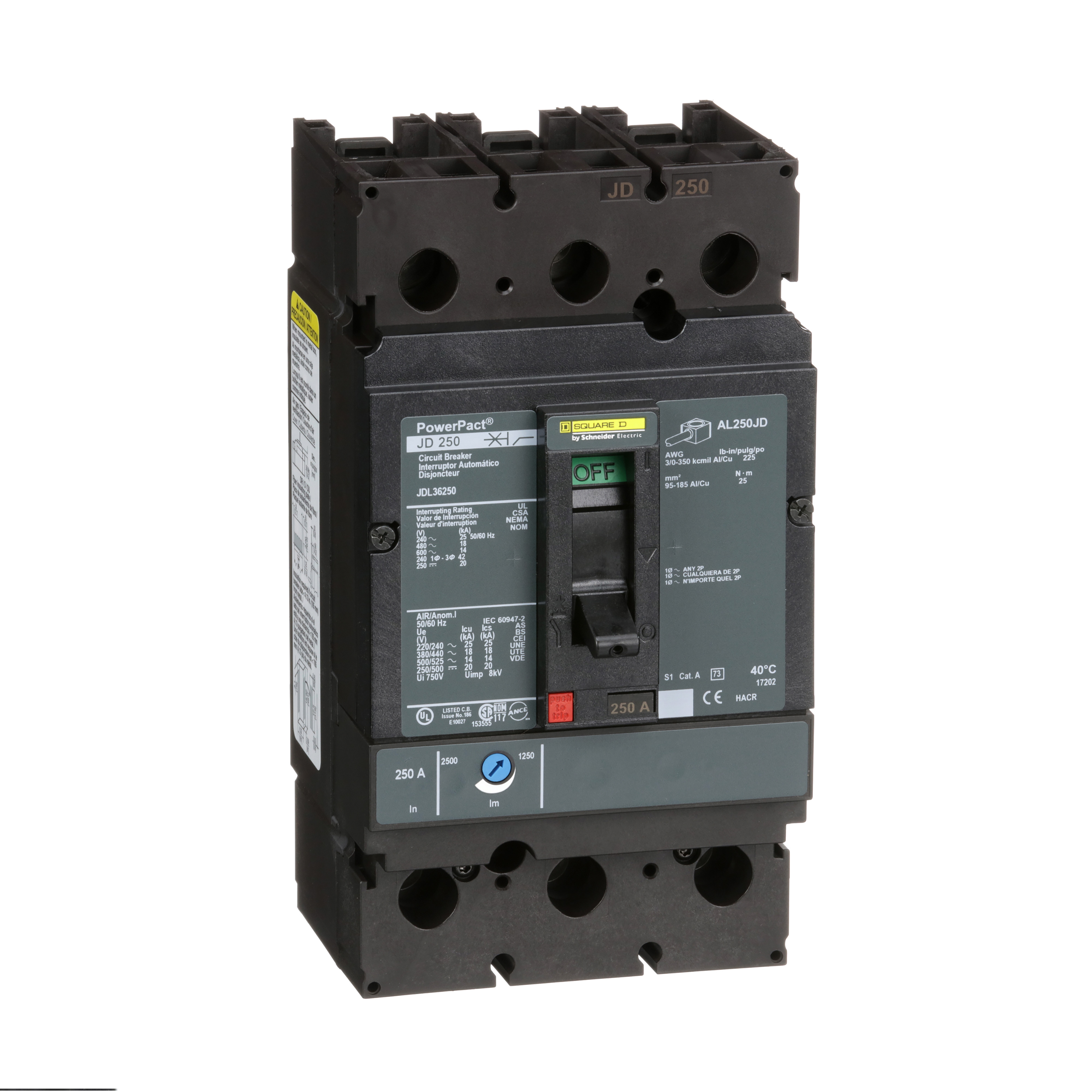

Square D™ PowerPact™ JDL36250 Molded Case Circuit Breaker, 600 VAC/250 VDC, 250 A, 14/18/20/25 kA Interrupt, 3 Poles
Molded Case Circuit Breakers
235431
MFG #: JDL36250
Square D™
2389.42000
/ ea
- Actuator: Toggle
- Actuator Type: Handle
- Alternate Catalog Number: JDL36250
- Amperage Rating: 250 A
- Application: DISTRIBUTION
- ARRA Compliant: N
- Brand: Square D™
- Buy American Compliant: N
- Catalog Number: JDL36250
- Connection Type: Line/Load Lug
- Country of Origin: MX
- Currency: USD
- EU RoHS Indicator: Y
- Frequency Rating: 50/60 Hz
- Gross Volume Per Pack: 371.18
- Gross Volume per Pack Metric: 6082.59
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight per Pack Metric: 2.20
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536200020
- Height [Metric]: 14.4780 cm
- Item Group: 01110
- Length [Metric]: 22.3520 cm
- Manufacturer: Schneider Electric
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=425243&lang=en-us
- Mounting Type: Unit
- Number Of Poles: 3
- Phase: 3 pH
- Returnable: Y
- Standard: UL LISTED - CSA CERTIFIED - IEC RATED - CCC
- Stock Status: NORMALLY STOCKED
- Sub Brand: POWERPACT
- Substitute Product Catalog Number: S29370
- Trip Type: Thermal Magnetic
- Type: Type JDL
- UNSPSC: 39121616
- UPC 11: 78590183994
- UPC 12: 785901839941
- Voltage Rating: 600 VAC/250 VDC VAC//VDC
- Warranty Description: Contractual Warranty:18 months
- Width [Metric]: 18.7960 cm
Square D JDL36250 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 250A,-13F and 158F (-25 C and +70 C),104 mm,191 mm,250A,25kA240VAC - 18kA480VAC - 14kA600VAC - 20kA250VDC,3,50/60Hz,600 Vac/250 Vdc,86 mm,J-Frame,Line Lug - Load Lug,Low 1250A - High 2500A,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC,Unit Mount
